Summary of Contents for Jaeger-leCoultre MASTER ULTRA THIN PERPETUAL CALENDAR
-
Page 1: Table Of Contents

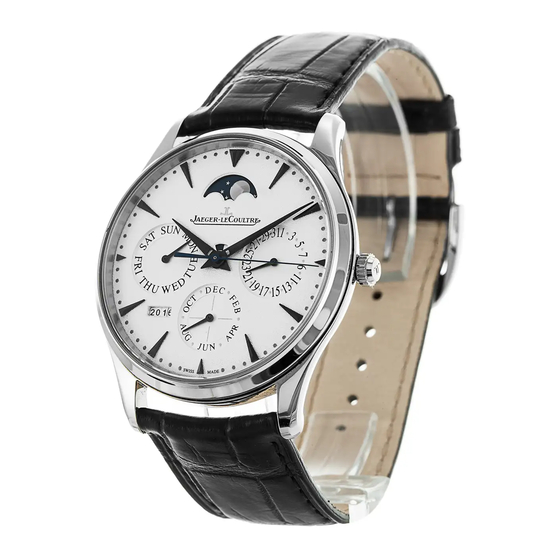

CONTENTS Introduction Accuracy and precautions for use Water resistance “1000 Hours Control” test Care instructions for leather straps Technical specifications Movement Functions and displays International Guarantee Limited Warranty (United States of America and Canada) Guarantee for Australia Customer Service... - Page 2 1 Moon phases 2 Minute hand 3 Aperture indicating the security zone 4 Crown 5 Date 6 Month 7 Year 8 Corrector 9 Second hand 10 Day 11 Hour hand...
-
Page 3: Introduction
INTRODUCTION We would like to thank you for the confi- dence you have placed in Jaeger-LeCoultre. Our Maison has applied all its expertise and exacting standards to the creation of this model. We invite you to consult the operating in- structions and hope your Jaeger-LeCoultre timepiece brings you great joy. -
Page 4: Water Resistance
WATER RESISTANCE Your Jaeger-LeCoultre watch is water- resistant to 5 bar. Its water resistance can be identified by the symbol and/or the engraving: “5 bar”... - Page 5 - have the watch’s water resistance checked by an authorised Jaeger-LeCoultre retailer at least once every two years. It is essen- tial to have such a check carried out each...
- Page 6 - avoid using the controls, push-piece, or time-setting crown while under water, or outside the water, if the watch is not yet dry after immersion. - restore the time-setting crown and the push-pieces to their normal positions, (or where applicable, close the compression keys) after every manipulation.
-
Page 7: 1000 Hours Control" Test
“1000 HOURS CONTROL” TEST The Jaeger-LeCoultre Manufacture pays close attention to the quality and to the final checks of its watches. The 1000 Hours Control is a series of in- ternal qualification tests for each of the models in our collection, as well as inter- nal tests on the production of your watch, which go beyond official timing tests. -
Page 8: Care Instructions For Leather Straps
in temperature and atmospheric pressure, ability to withstand shocks and magnetic fields, as well as water resistance. CARE INSTRUCTIONS FOR LEATHER STRAPS 1. Keep the leather strap in a dry place 2. Avoid contact with water, cosmetics, perfumes, alcohol and oily materials 3. -
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS - Automatic mechanical Manufacture movement, Jaeger-LeCoultre Calibre 868. - 28,800 vibrations/hour. - Power reserve: approximately 38 hours. MOVEMENT Jaeger-LeCoultre Calibre 868. -
Page 10: Functions And Displays
FUNCTIONS AND DISPLAYS The watch offers the following functions: - Hours - Minutes - Seconds - Date - Day - Month - Year - Moon phases - Perpetual Calendar - Security zone indication The perpetual calendar has a mechanism that takes into account the length of the current month (28, 30 or 31 days), and counts a 29th February every leap year. - Page 11 mechanically, without the slightest need for readjustment until 1 March 2100. All these are interlinked by the ingenious mechanism of a genuine, entirely mecha- nical programme: merely changing the initial date thus effects the appropriate changes in all other functions. Our time measurement is based on the Gregorian calendar, i.e.
- Page 12 (centuries divisible by 4), which are both regular leap years. It is therefore only in the year 2100 that the programming of your perpetual calendar will need to be correc- ted. Until that date, your watch will count days, months, and decades. On 1 March 2100, the calendar will indicate Monday, 29th February, whereas in fact it will be Monday, 1st March.
-
Page 13: Use
WINDING Your Master Ultra Thin Perpetual Calendar watch is equipped with a 38-hour power reserve, during which time it can operate without any additional winding. Crown in position 0. A few clockwise turns of the crown are enough to set the watch running. It will then automatically wind up when you wear it. - Page 14 not lock during winding, even when the watch is fully wound. SETTING THE HOURS AND MINUTES Pull the crown out to position 1. Move the hands clockwise until the desired time is displayed. When the hands are dis- playing times during the night between 8 p.m.
- Page 15 2000 (fixed “20” + “00”). We advise you to wait until 1 March 2100 before submitting your Master Ultra Thin Perpetual Calendar watch to an authorised watchmaker, so as to have the year plate set to position “21”, while the necessary adjustments are made to the date and the moon phase.
- Page 16 month, year, and moon phase programme run correctly thereafter. We remind you that you should not: - Perform this calendar correction between 8 p.m. and 4 a.m.. - Move the calendar forward beyond the current date. The movement is program- med mechanically and cannot be ad- justed by moving the date backward.
- Page 17 data is automatically programmed in your watch. ADJUSTING THE WATCH WHEN CHANGING TIME ZONES (OR WHEN SWITCHING FROM DAYLIGHT SAVING TIME TO WINTER TIME AND VICE VERSA) Pull the crown out to position 1. - If you are travelling towards the East, move the hour forward to display the new local time.
- Page 18 towards the West, such as going from America to Asia, you move on to the next day: - Adjust your watch by moving the hands forward until you reach the following day and the local time. - You can also use the corrector push- piece to move the date forward.
- Page 19 operation at 8 p.m., the day/night indi- cation dial of your watch will show 8 a.m. instead of 8 p.m. after this first turn. - The second 12-hour windback is perfor- med the following morning between 4 a.m. and 10 a.m. For example, if you per- form this operation at 8 a.m., your watch will once more display 8 a.m.
- Page 20 Australia, Jaeger-LeCoultre products must be purchased exclusively from authorised Jaeger-LeCoultre retail- ers or from Jaeger-LeCoultre Boutiques. Maintenance and repair work must be en- trusted to an authorised Jaeger-LeCoultre retailer, a Jaeger-LeCoultre Boutique, or an authorised Jaeger-LeCoultre Service Centre. If these conditions are not met, the manufacturer’s guarantee does not...
-
Page 21: International Guarantee
Any part found by our technical services to be defective as a result of a manufac- turing defect will, at the sole discretion of Jaeger-LeCoultre, be repaired or replaced free of charge. The Jaeger-LeCoultre In-... - Page 22 Guarantee is valid only if the guarantee certificate enclosed with this booklet has been duly completed, dated, stamped, and signed by the authorised Jaeger-LeCoultre retailer or the Jaeger- LeCoultre Boutique, which sold you your watch. The Jaeger-LeCoultre International Guar-...
- Page 23 Jaeger-LeCoultre retailer, Jaeger- LeCoultre Boutique, or an authorised Jaeger-LeCoultre Service Centre (for further information please see your User Manual). For quartz watches, this guarantee does not cover the battery life. As a consumer, you may have legal rights under applicable national legislation gov- erning the sale of consumer goods;...
-
Page 24: Limited Warranty (United States Of America And Canada)
LIMITED WARRANTY (UNITED STATES OF AMERICA AND CANADA) The following Limited Warranty applies to Jaeger-LeCoultre products sold or pre- sented for warranty repairs in the United States of America and Canada only. TERMS AND CONDITIONS OF AEGER-LE OULTRE LIMITED WARRANTY... - Page 25 Jaeger-LeCoultre retailer or the Jaeger-LeCoultre Boutique, which sold you your watch. This Jaeger-LeCoultre Limited Warranty does not cover defects resulting from ac- cidents, mishandling, or incorrect, abusive use (for example, knocks, dents, crushing,...
- Page 26 Jaeger-LeCoultre retailer, a Jaeger- LeCoultre Boutique, or an authorised Jaeger-LeCoultre Service Centre (for fur- ther information please see your User Manual).
- Page 27 The liability of Jaeger-LeCoultre is limited solely and exclusively to repair or replace- ment under the terms and conditions stat- ed herein. Jaeger-LeCoultre shall not be liable, by virtue of this Limited Warranty...
-
Page 28: Guarantee For Australia
You are also entitled to have the goods repaired or replaced, if goods fail to be of acceptable quality and the failure does not amount to a major failure. This Jaeger-LeCoultre Guarantee gives you additional rights and remedies un- der the Australian Consumer Law and... - Page 29 Every Jaeger-LeCoultre product is made and tested to meet the Jaeger-LeCoultre quality standards. Nevertheless, should your Jaeger-LeCoultre product prove defective, please contact the Jaeger- LeCoultre retailer or Jaeger-LeCoultre Boutique indicated on your guarantee certificate;...
- Page 30 Jaeger-LeCoultre will remedy these identi- fied defects free of charge for up to two (2) years from the date of purchase. Thereafter, Jaeger-LeCoultre will repair any defective product or part subject to a service charge. The Jaeger-LeCoultre Guarantee does not...
- Page 31 It is essential to have the water resistance checked by an authorised Jaeger-LeCoultre retailer, a Jaeger-LeCoultre Boutique, or an author- ised Jaeger-LeCoultre Service Centre at least every two years, and in any event, prior to any period of intensive use. Please refer to the operating instructions for fur- ther details.
- Page 32 In Australia, a claim under the Jaeger- LeCoultre Guarantee may be sent to Richemont Australia Pty Ltd, provider of the guarantee service, at the address be- low or as specified above: Richemont Australia Pty Ltd PO Box 4780 Sydney, NSW 2001 Tel: +1 800 71 0665 Email: client.relations.asia@jaeger- lecoultre.com...
-
Page 33: Customer Service
CUSTOMER SERVICE A Jaeger-LeCoultre timepiece is a high- precision instrument that operates 24 hours a day, or 8,760 hours a year. There- fore, it is essential to have it serviced reg- ularly in order to guarantee its good work- ing order and its durability. If significant variations occur in the settings, it may be necessary to have the movement serviced. - Page 34 Jaeger- LeCoultre watches and clocks. In certain cases, especially for operations requiring special tools and parts, the Ser- vice Centres will send your watch to the Jaeger-LeCoultre Manufacture in Switzer- land to have the necessary work carried out.
