Summary of Contents for Jaeger-leCoultre Q411842J

Page 1 CONTENTS Introduction Accuracy and precautions for use Water resistance “1000 Hours Control” test Care instructions for leather straps Technical specifications Movement International Guarantee Limited Warranty (United States of America and Canada) Guarantee for Australia Customer Service...

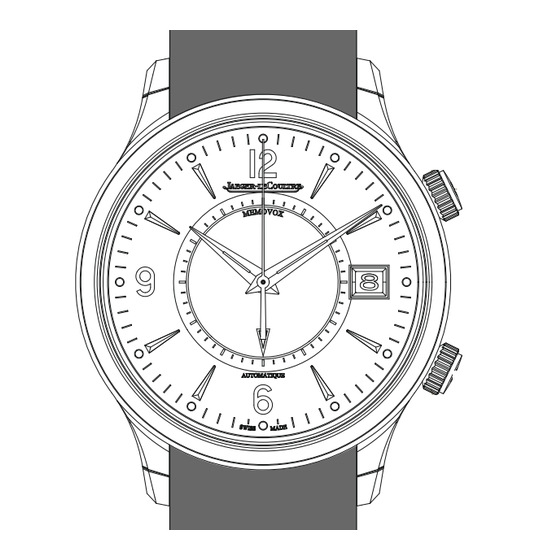

Page 2 1 Crown A: Setting the date and alarm 2 Minute hand 3 Date 4 Crown B: Setting the time 5 Alarm indicator 6 Hour hand 7 Seconds hand...
Page 3 INTRODUCTION We would like to thank you for the confi- dence you have placed in Jaeger-LeCoultre. Our Maison has applied all its expertise and exacting standards to the creation of this model. We invite you to consult the operating in- structions and hope your Jaeger-LeCoultre timepiece brings you great joy.
Page 4 If you observe a dis- crepancy in the way your watch runs, we advise you to entrust it to an authorized Jaeger-LeCoultre retailer who will make the necessary adjustments. Watches with mechanical movements must not be used...
Page 5 responding to an immersion pressure of 50 meters (1 bar = ±10 meters). In accordance with the ISO 22810/NIHS 92-20 standard, in order to guarantee the durability of the watch’s characteristics over time, and as water resistance may be affected by certain activities, it is recom- mended that you: - have watch’s...
Page 6 and have the water resistance checked after any severe impact. - avoid using the controls, push-piece, or time-setting crown while under water or outside the water, if the watch is not yet dry after immersion. - restore the time-setting crown and the push-pieces to their normal positions, or where applicable, close the compression keys after every manipulation.
Page 7 “1000 HOURS CONTROL” TEST The Jaeger-LeCoultre Manufacture pays close attention to the quality and final checks of its watches. The 1000 Hours Control is a series of in- ternal qualification tests for each of the models in our collection, as well as inter- nal tests on the production of your watch, which go beyond official timing tests.
Page 8 in temperature and atmospheric pressure, ability to withstand shocks and magnetic fields, as well as water resistance. CARE INSTRUCTIONS FOR LEATHER STRAPS 1. Keep the leather strap in a dry place 2. Avoid contact with water, cosmetics, perfumes, alcohol, and oily materials 3.
Page 9 TECHNICAL SPECIFICATIONS - Automatic mechanical Manufacture movement, Jaeger-LeCoultre Calibre 956. - 28,800 vibrations/hour. - Power reserve: approximately 44 hours. - Water-resistant to 5 bar. MOVEMENT Jaeger-LeCoultre Calibre 956...
Page 10 STARTING THE WATCH Crown B in position 0. A few clockwise turns of the crown are enough to start your watch. It will then automatically wind up when you wear it. Please note that the crown does not lock when winding, even when the watch is fully wound.
Page 11 window at 3 o’clock and a rapid correction system. If you have to move the date one day forward, turn Crown A (in position 1) clockwise. Repeat the operation until the desired date is displayed. For months with fewer than 31 days, repeat this process to reach the 1st of the following month.
Page 12 SETTING THE ALARM Winding Crown A in position 0. The alarm is wound by turning Crown A clockwise. When winding is complete, the crown is locked. Setting the alarm time Pull Crown A out to position 1. This function enables you to adjust the alarm disc by turning the crown anti-clock- wise.
Page 13 the crown must be pushed back into posi- tion 0 to ensure water resistance.
Page 14 In order to benefit from the International Guarantee and/or the Limited Warranty and/or the Manufacturer’s Guarantee for Australia, Jaeger-LeCoultre products must be purchased exclusively from authorized Jaeger-LeCoultre retailers or from Jaeger- LeCoultre Boutiques. Maintenance and repair work must be entrusted to an au- thorized Jaeger-LeCoultre...
Page 15 INTERNATIONAL GUARANTEE The International Guarantee applies to Jaeger-LeCoultre products sold or pre- sented for guarantee repairs in all coun- tries, except the United States of America and Canada (for these two countries, see the Limited Warranty) and Australia (for this country, refer to the Guarantee for Australia).
Page 16 LeCoultre International Guarantee is valid only if the guarantee certificate enclosed with this booklet has been duly comple- ted, dated, stamped, and signed by the authorized Jaeger-LeCoultre retailer or the Jaeger-LeCoultre Boutique, which sold you your watch. The Jaeger-LeCoultre International Gua-...
Page 17 Jaeger-LeCoultre retailer, Jaeger- LeCoultre Boutique, or an authorized Jaeger-LeCoultre Service Center (for fur- ther information please see your User Manual). For quartz watches, this guarantee does not cover the battery life. As a consumer, you may have legal rights under applicable national legislation gov- erning the sale of consumer goods;...
Page 18 LIMITED WARRANTY (UNITED STATES OF AMERICA AND CANADA) The following Limited Warranty applies to Jaeger-LeCoultre products sold or pre- sented for warranty repairs in the United States of America and Canada only. TERMS AND CONDITIONS OF AEGER-LE OULTRE LIMITED WARRANTY...
Page 19 Jaeger- LeCoultre retailer or the Jaeger-LeCoultre Boutique, which sold you your watch. This Jaeger-LeCoultre Limited Warranty does not cover defects resulting from ac- cidents, mishandling, or incorrect, abusive use (for example, knocks, dents, crushing,...
Page 20 Jaeger-LeCoultre retailer, a Jaeger- LeCoultre Boutique, or an authorized Jaeger-LeCoultre Service...
Page 21 The liability of Jaeger-LeCoultre is limited solely and exclusively to repair or repla- cement under the terms and conditions stated herein. Jaeger-LeCoultre shall not be liable, by virtue of this Limited...
Page 22 You are also entitled to have the goods repaired or replaced if goods fail to be of acceptable quality and the failure does not amount to a major failure. This Jaeger-LeCoultre Guarantee gives you additional rights and remedies un-...
Page 23 Australian Consumer Law and any other laws in relation to the goods. Every Jaeger-LeCoultre product is made and tested to meet the Jaeger-LeCoultre qual- ity standards. Nevertheless, should your Jaeger-LeCoultre product prove defec- tive, please contact the Jaeger-LeCoultre retailer or Jaeger-LeCoultre Boutique in- dicated on your guarantee certificate;...
Page 24 Jaeger-LeCoultre will remedy these identi- fied defects free of charge for up to two (2) years from the date of purchase. Thereafter, Jaeger-LeCoultre will repair any defective product or part subject to a service charge. The Jaeger-LeCoultre Guarantee does not...
Page 25 It is essential to have the water resistance checked by an authorized Jaeger- LeCoultre retailer, a Jaeger-LeCoultre Boutique, authorized Jaeger- LeCoultre Service Center at least every two years, and in any event, prior to any period of intensive use.
Page 26 In Australia, a claim under the Jaeger- LeCoultre Guarantee may be sent to Richemont Australia Pty Ltd, provider of the guarantee service, at the address be- low or as specified above: Richemont Australia Pty Ltd PO Box 4780 Sydney, NSW 2001 Tel: +1 800 71 0665 Email: client.relations.asia@jaeger- lecoultre.com...
Page 27 CUSTOMER SERVICE A Jaeger-LeCoultre timepiece is a high- precision instrument that operates 24 hours a day, or 8,760 hours a year. The- refore, it is essential to have it serviced regularly in order to guarantee its good working order and its durability. If signifi-...
Page 28 Service Centers staffed by watchmakers trained at the Jaeger-LeCoultre Manufacture and have the workshops, tools, and parts required for the repair and maintenance of Jaeger- LeCoultre watches and clocks. In certain cases, especially for operations...
