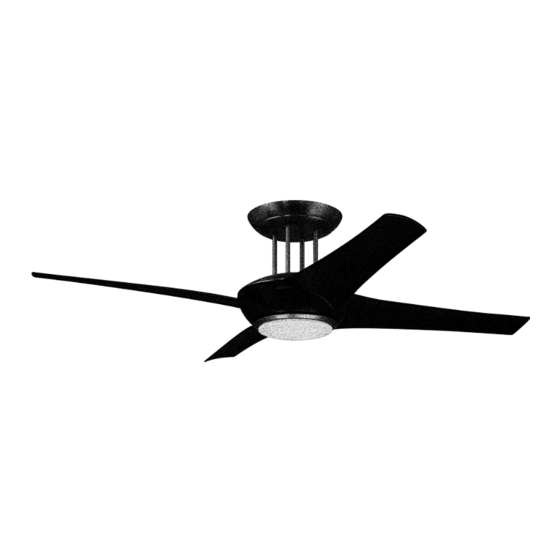

Cam

Installation Guide

For Model:

CAM54

WARNING:

DC Motor will not

operate until blades

are installed

4007498

net weight of fan: 17.7 lb (8.03 kg)

READ THESE INSTRUCTIONS

AND SAVE THEM FOR FUTURE USE

Need help?

Do you have a question about the CAM54 and is the answer not in the manual?

Questions and answers

Summary of Contents for Craftmade CAM54

Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Installation Guide For Model: Table of Contents: CAM54 Safety Tips. pg. 3 Unpacking Your Fan. pg. 4 Parts Inventory. pg. 4 Installation Preparation. pg. 5 Mounting Plate Installation. pg. 5 WARNING: Preparation for Wiring.
Page 2 Activating Your New Smart Fan; Downloading the Bond Home App • Using your smart device, navigate to the application store (Apple App store or Google Play), download the free Bond Home app and create account. • Ensure the fan and receiver are receiving power from the house by supply using the remote control to turn the fan and light ON and OFF.
Page 3: Safety Tips
Light kit is dimmable to 10% with the remote control included. Distributed by: Craftmade, 3901 S. 20 Avenue, DFW Airport, TX, 75261; 800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur.
Page 4: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.
Page 5: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure that the hanging location allows the blades a inches clearance of 7ft. (2.13m) from the floor and 30in. 7 feet (76cm) (76cm) from any wall or obstruction. (2.13m) This fan is suitable for room sizes up to 400 square feet (37.2 square meters).
Page 6: Preparation For Wiring
5. Preparation for Wiring. safety wood screw and washer cable With wider opening facing up, place housing ring over wood loop top of motor housing. Then, push housing ring down joist past top edge of motor housing. Lift motor housing to mounting plate and then hang safety motor housing on j-hook on underside of mounting cable...
Page 7: Fan Assembly
7. Fan Assembly. mounting plate Remove motor housing from j-hook on mounting plate. Lift motor housing to mounting plate. Align slotted holes on top rim of motor housing with loosened screws j-hook in mounting plate. Twist motor housing to lock. Re-insert the 2 screws that were previously removed (page 5, Section 4) and groove then tighten all 4 screws to secure motor...
Page 8: Light Kit Assembly (Optional)
9. Light Kit Assembly (optional). Remove 1 screw from motor plate on underside of motor housing and partially loosen the other 2 screws. Align slotted holes in fitter plate with loosened screws in motor plate, allowing molex connections from motor housing to come through holes motor housing in midde of fitter plate.
Page 9: Automated Learning Process./Activating Code
10. Automated Learning Process./Activating Code. CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other programmable receiver or fan. Remove battery cover on backside of remote control by loosening screw on battery cover.
Page 10: Remote Control Operation
11. Remote Control Operation. button - Turns fan ON/OFF button - Use to control fan direction button - Use to decrease fan speed. Blue LED ligths will show the current speed. button - Use to increase fan speed. Blue LED lights will show the current speed. button - Use to turn light ON/OFF.
Page 11: Activating Your Ceiling Fan Smart
12. Activating Your Ceiling Fan Smart Features. (cont.) 11. Select the Wi-Fi network you would like to connect the SBB to. SMART CEILING FAN 12. Enter the Wi-Fi password and select “OK”. SETUP VIDEO - If there is an issue with the connection or wrong password is entered, you will receive an error message.
Page 12: Troubleshooting
Warranty. Troubleshooting. CRAFTMADE LIMITED LIFETIME WARRANTY: WARNING: Failure to disconnect power supply CRAFTMADE warrants this fan for use as intended under prior to troubleshooting any wiring issues may result in the following provision: CRAFTMADE will replace any fan serious injury.
