Instructions
™

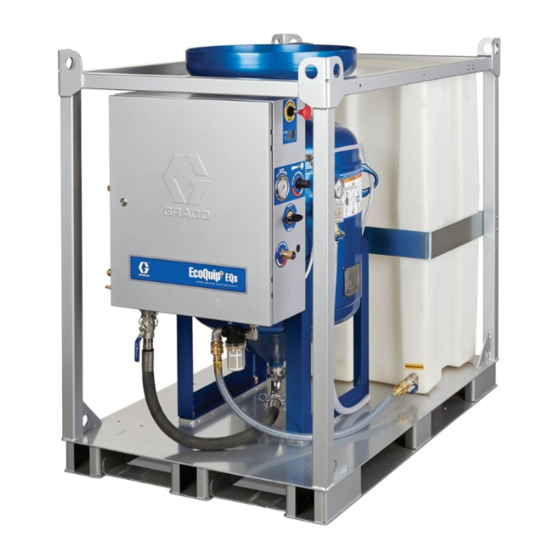

EcoQuip 2
Vapor Abrasive Blast System
Vapor abrasive blast system for coating removal and surface preparation.
For professional use only.
175 psi (12.06 bar, 1.2 MPa) Maximum Working Pressure
See page 4 for models and approval information.
Important Safety Instructions
Read all warnings and instructions in this
manual before using this equipment.
Save these instructions.
EQs, EQc, and EQ Trailer Unit
3A7467E
EN
Advertisement
Related Manuals for Graco EcoQuip 2
Summary of Contents for Graco EcoQuip 2
- Page 1 Instructions ™ EcoQuip 2 EQs, EQc, and EQ Trailer Unit 3A7467E Vapor Abrasive Blast System Vapor abrasive blast system for coating removal and surface preparation. For professional use only. 175 psi (12.06 bar, 1.2 MPa) Maximum Working Pressure See page 4 for models and approval information.
- Page 2 California Proposition 65 ....67 Graco Standard Warranty ....68...
- Page 3 Related Manuals Related Manuals Manual in English Description EcoQuip EQm Vapor Abrasive Blast System 3A3489 ™ 313840 DataTrak 333397 Pump 335035 Air Inlet Kit 309474 Low Pressure Fluid Regulators 3A3470 Hose Rack Kit 3A3838 Nozzle Pressure Verification Kit 3A3839 Nozzle Extension Handle Kit 3A3970 Water Dose Kit 3A7467E...
- Page 4 Models Models EcoQuip 2 Vapor Blast Systems Blast Control Part Model Series Approvals Number Pneumatic Electric 262960 262961 II 2 G Ex ia h IIA T3 Gb X 262970 EQs Elite 262971 II 2 G Ex ia h IIA T3 Gb X 273200 ...
- Page 5 Models Series Change Information The EcoQuip pressure pot has been updated with a new pop-up assembly and the addition of a quick drain ball valve assembly to simplify the process for filling and draining the pot. Non-ATEX Systems Series D (262960, 262970, 273200, 273204) ATEX System Series C (262961, 262964, 262971, 262974, 273201, 273209, 273207,...
- Page 6 Packages Packages NOTE: Packages include a blast hose with electric or pneumatic blast controls and a tool kit. EcoQuip 2 Vapor Blast System Packages Blast Control Included Model Package Blast Hose Nozzle System Pneumatic Electric 262962 262960 #8 High 262963 100ft, 1.25 in.
- Page 7 Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable.
- Page 8 Warnings WARNING EQUIPMENT MISUSE HAZARD Misuse can cause death or serious injury. • Do not operate the unit when fatigued or under the influence of drugs or alcohol. • Do not exceed the maximum working pressure of temperature rating of the lowest rated system component.
- Page 9 Warnings WARNING MOVING PARTS HAZARD Moving parts can pinch, cut, or amputate fingers and other body parts. • Keep clear of moving parts. • Do not operate equipment with protective guards or covers removed. • Pressurized equipment can start without warning. Before checking, moving, or servicing equipment, follow the Pressure Relief Procedure and disconnect all power sources.
- Page 10 Component Identification Component Identification 3A7467E...
- Page 11 Component Identification MediaTrak Controls Key: Frame Blast Control Switch Blast Nozzle Blast Hose Pop-up Handle Water Tank Water Tank Lid Pot Dump Valve Pressure Relief Valve Pot Pressure Gauge Abrasive Ball Valve Inlet Ball Valve Key: Control Box Power Key Emergency Stop Cycle/Rate Blast Air Regulator...
- Page 12 *Abrasive capacity and wet weight was found using 80 grit garnet. Using coarser media or less dense media will decrease weight. † 2 in. ground boss adapter included in tool box (see Parts section of the EcoQuip 2 manual for more detail). Air Supply Hose Minimum ID 185–600 CFM compressor and less than 100 ft...
- Page 13 *Abrasive capacity and wet weight was found using 80 grit garnet. Using coarser media or less dense media will decrease weight. † 2 in. ground boss adapter included in tool box (see Parts section of the EcoQuip 2 manual for more detail). Air Supply Hose Minimum ID 185–600 CFM compressor and less than 100 ft...
- Page 14 Technical Specifications EQ200T Elite EcoQuip 2 EQ200T Elite Metric Maximum Working Pressure 100 psi 6.89 bar, 0.69 MPa Operating Temperature 35°–110° F 1.6°–43.3° C 31.75 mm ID Blast Hose Size 1.25 in. ID Abrasive Capacity* 880 lb 400 kg Pressure Pot Volume 6.5 cubic feet...
- Page 15 Technical Specifications EQ400T Elite EcoQuip 2 EQ400T Elite Metric Maximum Working Pressure 150 psi 10.3 bar, 1.03 MPa Operating Temperature 35°–110° F 1.6°–43.3° C 31.75 mm ID Blast Hose Size 1.25 in. ID Abrasive Capacity* 880 lb 400 kg Pressure Pot Volume 6.5 cubic feet...
- Page 16 With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
