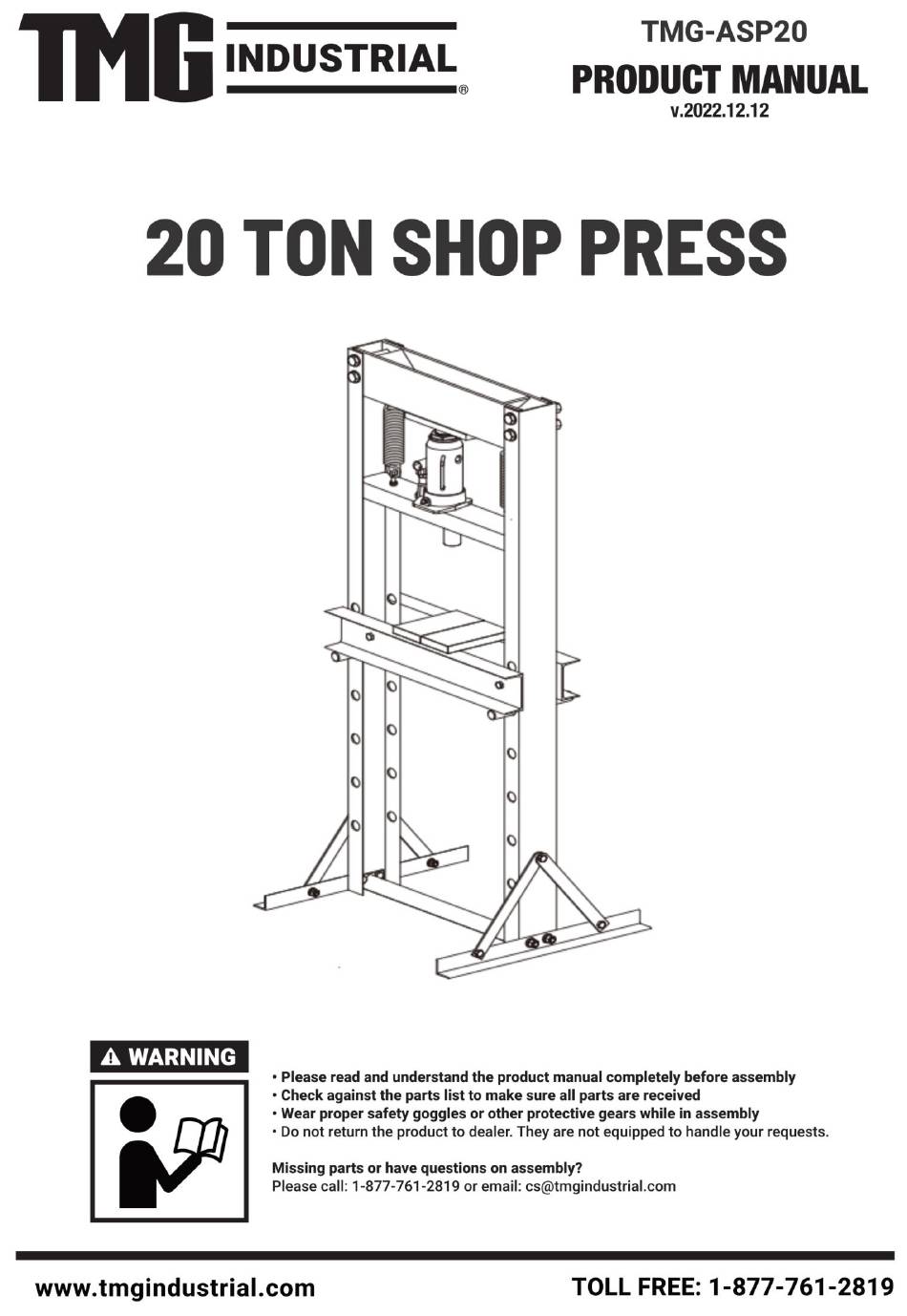

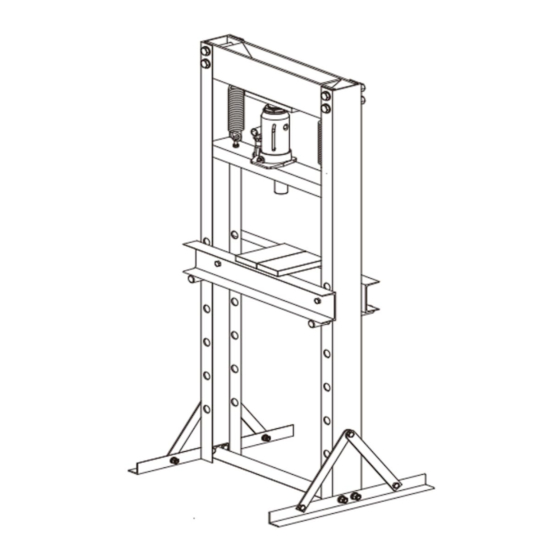

- Page 1 Main Specif ► www.tmgindustrial.com TOLL FREE:1-877-761-2819...
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS DESCRIPTION Item TMG-ASP20 Capacity 20TON Bed Opening 100mm Work Range 0~710mm Stroke Length 150mm Inside Bed Dimensions L x W 100x460mm Dimensions L x W x H 640x540x1495mm Hydraulic Oil ISO VG 15 SAFETY MARKINGS WARNING! 1. Study, understand, and follow all instructions before operating the device. - Page 3 SHOP PRESS PARTS LIST ► www.tmgindustrial.com TOLL FREE:1-877-761-2819...
-
Page 4: Parts List
PARTS LIST SHOP PRESS PARTS LIST DESCRIPTION DESCRIPTION Bolt M16x40 Bolt M10x130 Washer 16 Washer 10 Knighthead Spring washer 10 Spring washer 16 Nut M10 Nut M16 Support pin Top beam component Connection plate Pump Bolt M12x30 Spring Base support Hook Washer 12 Nut M6... - Page 5 SYSTEM AIR PURGE PROCEDURE THIS PRODUCT HAS COMPLETED THE AIR PURGE PROCEDURE BEFORE LEAVING THE FACTORY AND CAN BE USED DIRECTLY Check all parts and conditions, if there is any part broken, stop using it and contact your supplier immediately. ...
- Page 6 3. Turn release valve clockwise to the closed position. 4. Pump handle until the ram reaches maximum height and continue to pump several times to remove trapped air in the ram. ► www.tmgindustrial.com TOLL FREE:1-877-761-2819...
- Page 7 5. Carefully and slowly pinch oil fill plug to release trapped air. 6. Turn release valve counterclockwise to the open position one full turn and lower ram to the lowest position. 7. Turn release valve (R7) clockwise to the closed position and check for proper pump action. It may be necessary to perform the above step more than once to assume air is evacuated totally.
-
Page 8: Maintenance
8. Secure the handle in place inside the handle socket. Without any weight on the jack. Cycle the lift up and down several times to insure the hydraulic system is operating properly. (Perform to the Air Purge Procedure again if neccesary.) OPERATING INSTRUCTIONS WARNING! ENSURE THAT YOU READ, UNDERSTAND AND APPLY THE SAFETY INSTRUCTIONS AND WARNINGS BEFORE USE.
