TMG-ABC28
PRODUCT MANUAL
v2023.08.26

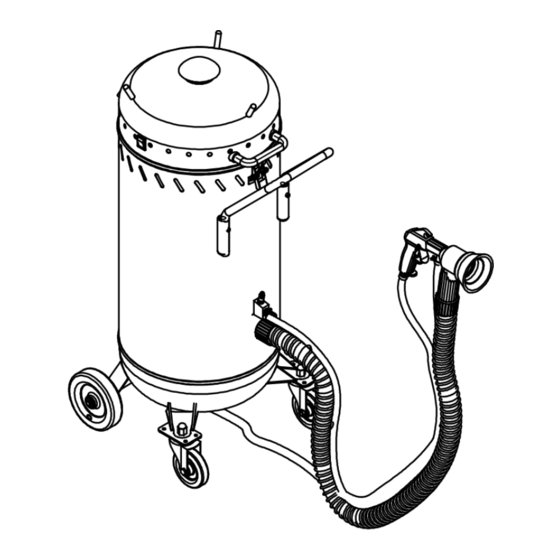

28 GALLON ABRASIVE
SANDBLASTER WITH VACUUM
Please read and understand the product manual completely before assembly
Check against the parts list to make sure all parts are received
Wear proper safety goggles or other protective gears while in assembly
Do not return the product to dealer. They are not equipped to handle your requests.
Missing parts or questions on assembly?
Please call: 1-877-761-2819 or email: cs@tmgindustrial.com
