Components; Screws - Jason.L Switch Dry Bar Table Frame Installation Manual

INSTALLATION GUIDE
Switch Dry Bar
Table Frame
Size: 2400x1200mm
11
3
4

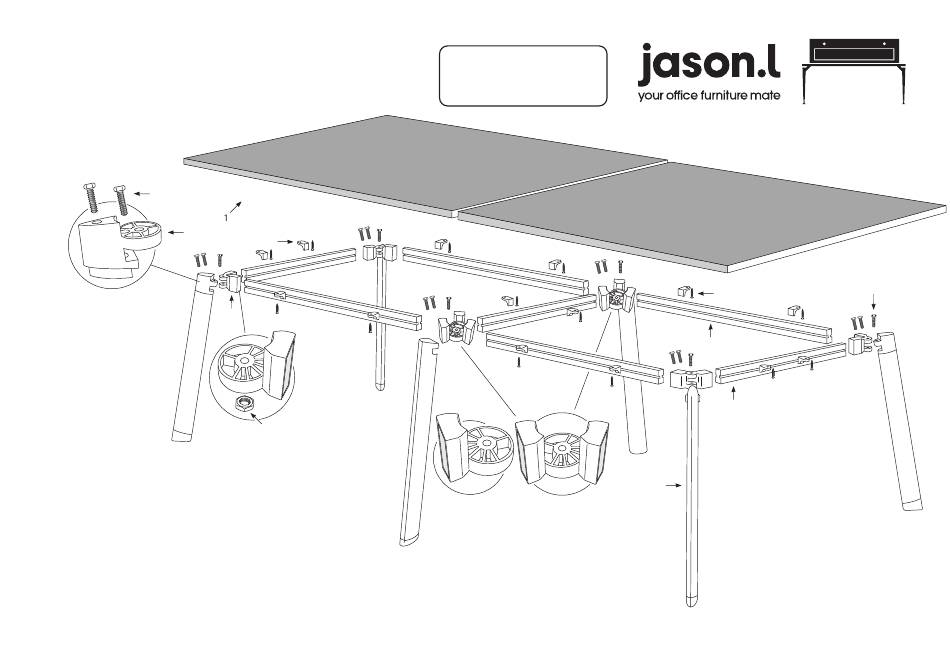

COMPONENTS

1
Table Top x2
(1200x1200mm)
2
Leg x6
3
Leg Bracket x6
4
Beam L Bracket x8
5
Beam T-Bracket x2
6
Long Beam x4 (920mm)
7
Short Beam x3 (580mm)
8
L-Bracket x14

SCREWS

9
Hex Nut x6
10
L-Bracket screws x14
11
Hex Head screws x16
12
M8x25mm Dome Head x6
8
L-beam
bracket
9
www.jasonl.com.au
Need help!
Call us on
1300 527 665
L-beam T-beam
bracket bracket
10
6
7
2
12
Page 2 of 5
