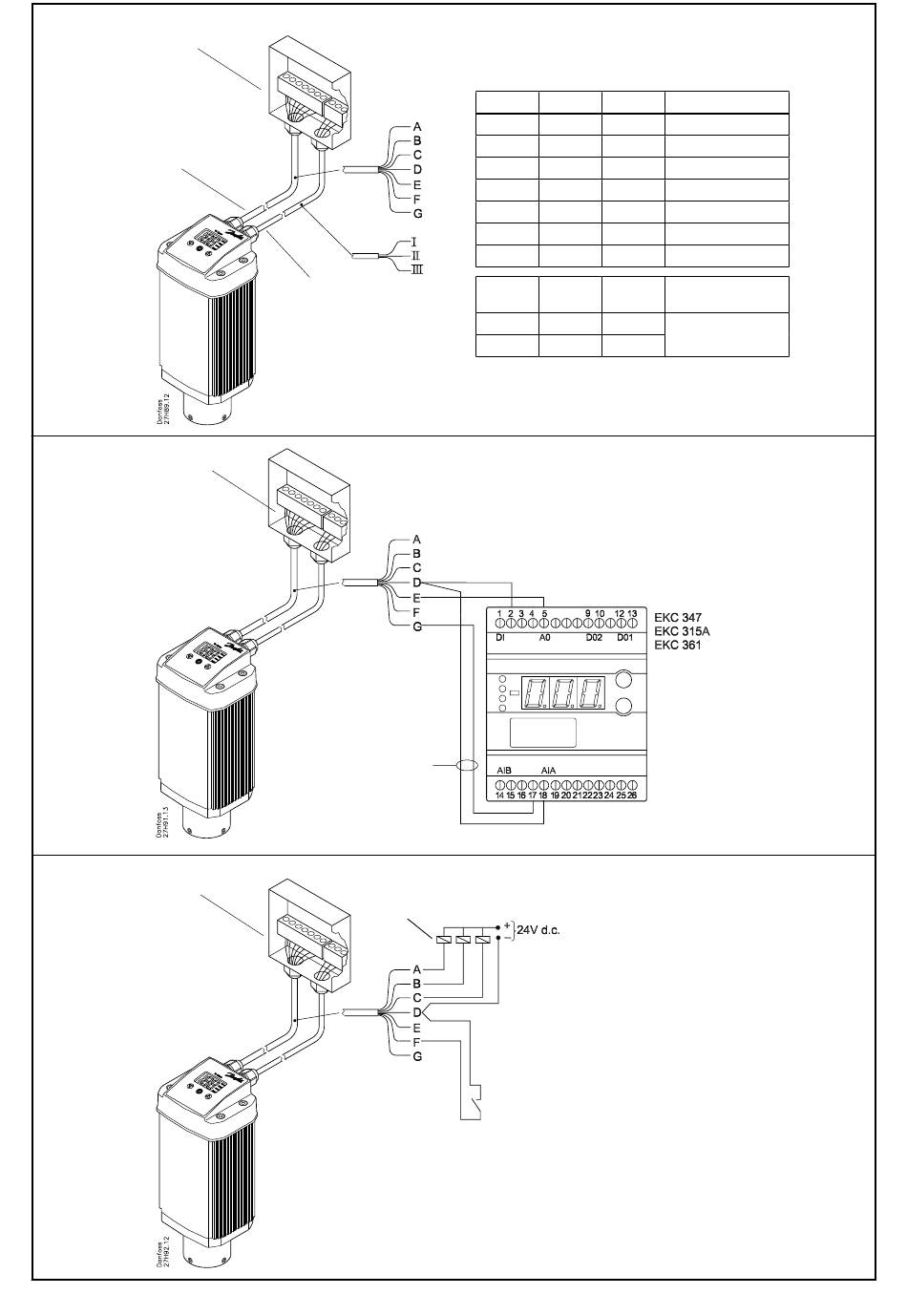

Danfoss ICAD 600 Instruction Manual page 2

Terminal box
Control cable
ICAD
Fig. 6
Terminal box
ICAD
Fig. 7
Terminal box
ICAD
Fig. 8
2
ICAD 600/900
Supply cable
ICAD 600/900 - Analog I/O for modulating control
Only possible
with EKC 347
ICAD 600/900 - Digital I/O for ON/OFF valve operation
Auxiliary relays
DKRCI.PI.HV0.A2.02 / 520H0546
Reference Color
A White –
B Brown –
C Green –
D Yellow –
E Grey +
F Pink +
G Blue +
I White +
II Brown +
III Green –
* Uninterruptible Power Supply
© Danfoss A/S (RC-CMS/MWA), 11-2005
Description }
Common Alarm
ICM fully open
Digital
Ouput
ICM fully closed
GND ground
}
0/4 - 20 mA Input
Analog
0/2 - 10 V Input
In/Output
0/4 - 20 mA Output
Fail safe supply
Battery / UPS* 19 V d.c.
Supply voltage
24 V d.c.
