HPS-X--LP DIFFERENTIAL PRESSURE TRANSMITTER Table of contents SAFETY AND PRECAUTIONS PRODUCT DESCRIPTION ARTICLE CODES INTENDED AREA OF USE TECHNICAL DATA STANDARDS OPERATIONAL DIAGRAM WIRING AND CONNECTIONS MOUNTING INSTRUCTIONS IN STEPS VERIFICATION OF THE INSTALLATION INSTRUCTIONS OPERATING INSTRUCTIONS TRANSPORT AND STORAGE WARRANTY AND RESTRICTIONS MAINTENANCE MIW-HPS-X--LP-EN-000 - 23 / 05 / 2023...
HPS-X--LP DIFFERENTIAL PRESSURE TRANSMITTER SAFETY AND PRECAUTIONS Read all the information, the datasheet, Modbus map, mounting and operating instructions and study the wiring and connection diagram before working with the product. For personal and equipment safety, and for optimum product performance, make sure you entirely understand the contents before installing, using, or maintaining this product.

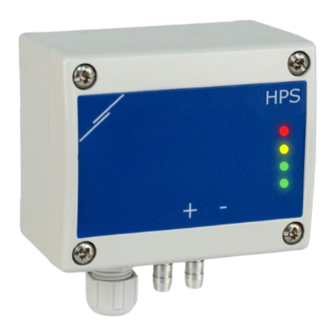

HPS-X--LP DIFFERENTIAL PRESSURE TRANSMITTER PRODUCT DESCRIPTION The HPS-X--LP series are differential pressure transmitters (-125—125 Pa), which are equipped with a fully digital pressure transducer designed for a wide range of applications. Air velocity readout is available by connecting an external Pitot tube connection set.
HPS-X--LP DIFFERENTIAL PRESSURE TRANSMITTER STANDARDS ■ EMC Directive 2014/30/EC: ► EN 61326-1:2013 Electrical equipment for measurement, control and laboratory use - EMC requirements - Part 1: General requirements EN 61326-2-3:2013 Electrical equipment for measurement, control and ► laboratory use - EMC requirements - Part 2-3: Particular requirements - Test configuration, operational conditions and performance criteria for transducers with integrated or remote signal conditioning ■...
HPS-X--LP DIFFERENTIAL PRESSURE TRANSMITTER The -F version of the product is not suited for 3-wire connection. It has separate ATTENTION grounds for power supply and analogue output. Connecting both grounds together might result in incorrect measurements. Minimum 4 wires are required to connect -F type sensors.
Page 7
HPS-X--LP DIFFERENTIAL PRESSURE TRANSMITTER To measure differential pressure, use PSET-QF or PSET-PVC set (pressure measurement is the unit default setting); To measure volume flow, use PSET-PT Pitot tube connection set, PSET- QF or PSET-PVC connection set. If you use PSET-PT, you should enter the duct cross sectional area [cm²] in Modbus register 63.
HPS-X--LP DIFFERENTIAL PRESSURE TRANSMITTER Fig. 6 PWM (Open collector) connection External pull-up resistor 50—100 kΩ External voltage PWM GND source (5—30 VDC) Optional settings To assure correct communication, the NBT needs to be activated in only two devices on the Modbus RTU network. If necessary, enable the NBT resistor via 3SModbus or Sensistant (Holding register 9).
HPS-X--LP DIFFERENTIAL PRESSURE TRANSMITTER Fig. 7 Power / Modbus communication indication The status of the LEDs can be checked only when the unit is energised. Take the ATTENTION relevant safety measures! Green LED intensity can be adjusted between 0 and 100 % with a step of 10 % ATTENTION according to the value set in Holding register 80.
Page 10
HPS-X--LP DIFFERENTIAL PRESSURE TRANSMITTER Press and hold the tact switch until both LEDs on the PCB blink twice and hold it until both LEDs blink again three times. If the tact switch is released before NO T E both LEDs blink again three times, the sensor will have carried out a calibration procedure instead of Modbus registers reset procedure.
HPS-X--LP DIFFERENTIAL PRESSURE TRANSMITTER Fig. 12 Sensor element error TRANSPORT AND STORAGE Avoid shocks and extreme conditions; stock in original packing. WARRANTY AND RESTRICTIONS Two years from the delivery date against defects in manufacturing. Any modifications or alterations to the product after the date of publication relieve the manufacturer of any responsibilities.
