Technical Support and E-Warranty Certificate www.vevor.com/support

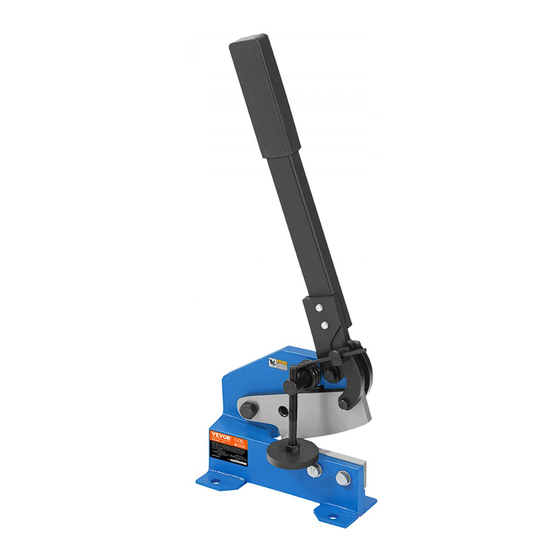

HAND SHEAR
ASSEMBLY & OPERATING
INSTRUCTION
MODEL:HS-5/8/12
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-5 and is the answer not in the manual?

Questions and answers

Related Manuals for VEVOR HS-5

Summary of Contents for VEVOR HS-5

  • Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support HAND SHEAR ASSEMBLY & OPERATING INSTRUCTION MODEL:HS-5/8/12 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
  • Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

  • Page 3: Specifications

    Warning-To reduce the risk of injury, user must read instructions manual carefully. UNPACKING The Hand Shear is shipped from the manufacturer in a carefully packed Carton box. Thoroughly inspect the product upon opening the package. After unpacking the unit, carefully inspect for any damage that may have occurred during transit.
  • Page 4 Model....................HS-5 Blade length................5" (130 mm) Sheet steel................0.24" (6 mm) Flat steel..............2.76"x0.24" (70x6 mm) Round steel................0.43" (11 mm) Model....................HS-8 Blade length................8" (203 mm) Sheet steel................0.24" (6 mm) Flat steel..............2.76"x0.24" (70x6 mm) Round steel................0.51" (13 mm) Model....................HS-12 Blade length................12" (305 mm) Sheet steel................0.24" (6 mm) Flat steel..............2.76"x0.24"...

  • Page 5: Safety Rules

    WARNING Never use highly volatile solvents. Non-flammable solvents are recommended to avoid possible fire hazards. SAVE THESE INSTRUCTIONS Thank you for purchasing our HS series Hand Shear. Before attempting to operate your new tool please read these instructions thoroughly. You will need these instructions for the safety warnings, precautions, assembly, operation, maintenance procedures, parts list and diagrams.
  • Page 6 3. Wear safety shoes with non-slip soles. 4. Wear safety glasses complying with United States ANSI Z87.1.Everyday glasses have only impact resistant lenses. They are NOT safety glasses. 5. Be alert and think clearly. Never operate tools when tired, intoxicated or when taking medications that cause drowsiness.

  • Page 7: Installation

    KNOW HOW TO USE TOOL 1. Use right tool for job. Do not force tool or attachment to do a job for which it was not designed. 2. Keep hands out of path of shear blades. 3. The maximum capacity of this machine is 1/4” mild steel or equivalent. Exceeding capacity may be dangerous to operator and damage may occur to the machine.

  • Page 8: Operation

    to provide clearance for handlebar rotation. Use four mounting holes on the base to bolt machine securely to floor, bench or stand (fasteners not included).Area around machine should be clear of scraps, oil or dirt. Apply a suitable non-skid material to floor. OPERATION Rotating handle #13 operates the shear.
  • Page 9 SHEARING ROUND BARS Round bars up to 7/16” diameter can be cut with shear HS-5 / 6.Round bars up to 1/2” diameter can be cut with shear HS-8 / 10 / 12.Place bar through holes in face of upper blade #7 and die #10. Position bar where cut is desired and pull handle #13 forward until bar is cut.

  • Page 10: Maintenance

    MAINTENANCE 1. Consult manual for specific maintaining and adjusting procedures. 2. Keep tool lubricated and clean for safest operation. All exposed iron surfaces should be coated with light oil to prevent rushing. 3. Remove adjusting tools. Form habit of checking to see that adjusting tools are removed before using machine.
  • Page 11 Drawing (HS-5/8) - 10 -...
  • Page 12 Drawing (HS-12) - 11 -...
  • Page 13 Parts List (HS-5) Ref.No. Description QTY. Hold down Plate Screw M8x40 Bolt M8x40 Support Block Spring Bolt M14x50 Upper blade Bolt M10x50 Base Nut M14 Pivot arm Handle Sleeve Bolt M10x40 Washer Nut M8 Right Link Nut M10 Lower blade...
  • Page 14 Parts List (HS-8) Ref.No. Description QTY. Hold down Plate Screw M8x40 Bolt M8x40 Support Block Spring Bolt M14x50 Upper blade Bolt M10x50 Base Nut M14 Pivot arm Handle Sleeve Bolt M10x40 Washer Nut M8 Right Link Nut M10 Lower blade Washer Screw M10x22 Bolt M8x20...
  • Page 15 Parts List (HS-12) Ref.No. Description QTY. Hold down Plate Screw M14x58 Bolt M14x58 Support Block Spring Bolt M18x50 Upper blade Bolt M14x50 Base Nut M18 Pivot arm Handle Sleeve Bolt M12x40 Washer Nut M14 Right Link Nut M14 Lower blade Washer Screw M12x22 Bolt M8x20...
  • Page 16 Technical Support and E-Warranty Certificate www.vevor.com/support...
