Technical Practice
The EV-1 is the perfect solution to help
make your elevator/emergency phone
A.D.A.* compliant.
The EV-1 is a line powered emergency
voice announcer designed to add a
natural voice announcement to any
telephone. The announcer provides ten
seconds of non-volatile record time that
can be used to communicate the
location of an emergency phone, or a
piece of malfunctioning equipment.
After a call initiated behind the EV-1 is answered, the EV-1 repeats the announcement
continuously. Emergency personnel can stop and start the announcement at will by
dialing a Touch Tone Q.
Features
• Telephone line powered
• Ten seconds of digital record time
• Non-volatile memory (no batteries required)
• Record remotely or locally with a Touch Tone
phone
• Automatic playback capability
Made in the U.S.A.
Specifications
Power: Phone line powered (32V DC 25mA minimum)
Dimensions: 71mm x 36mm x 119mm (2.8" x 1.4" x 4.7")
Shipping Weight: 0.7 kg (1.5 lb)
Environmental: 0 C to 32 C (32 F to 90 F) with 5% to 95%
non-condensing humidity
Sampling Rate: 64K (equivalent)
Message Length: 10 Seconds
Connections: (2) RJ11 jacks
Telecommunication Peripheral Products
Add Location Announcement to
Emergency Phones
http://VikingElectronics.com
E-mail...Info@VikingElectronics.com
*Americans with Disabilities Act of 1992 contains new federal
regulations regarding elevator telephones (Public Law 101-336).
Applications
• Emergency/elevator phone location
identification (helps meet A.D.A. requirements)
• Identify calls initiated by automatic dialing
equipment
Sales...(715) 386-8861
Installation
1. Plug the central office line or analog PABX/KSU
extension into the RJ-11 jack labeled LINE IN.
2. Plug the calling device into the RJ11 jack labeled TO
PHONE.
Model EV-1
Elevator/Emergency
Phone
EMERGENCY
VIKING
PHONE
REC
LED
TO PHONE
MODEL E-1600
CALL
CONNECTED
Push
To
Call
VIKING©
EV-1
Emergency Voice
Location Announcer
June 2, 1999

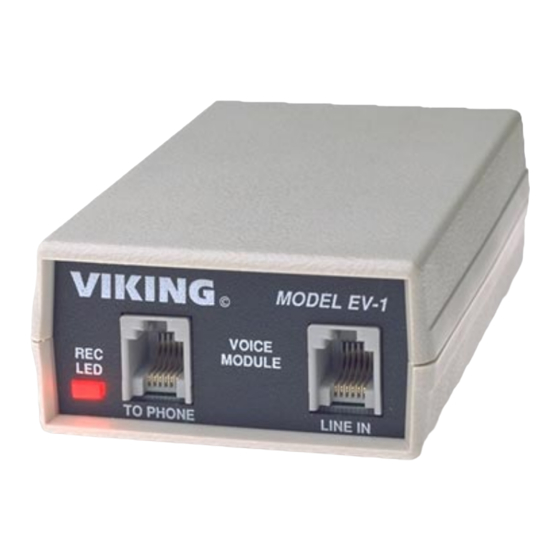

MODEL EV-1
©
VOICE
MODULE
LINE IN
C.O. line
or analog
PABX/KSU
station
