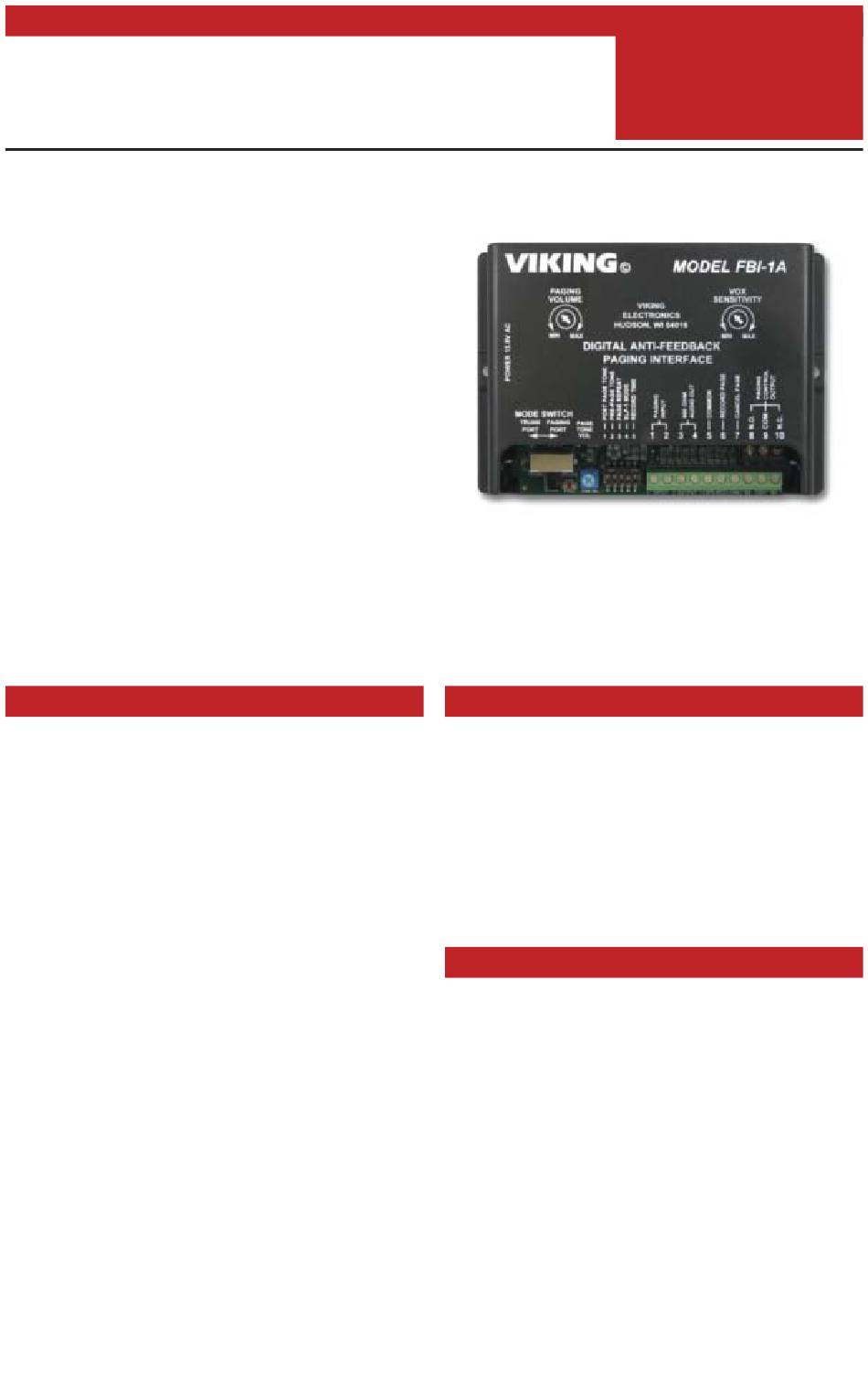

Totally Eliminate paging Feedback
Even the best designed paging systems
can experience feedback. Now you can
eliminate annoying feedback over your
paging speakers with Viking's model
FBI-1A digital anti-feedback paging
interface.
The FBI-1A utilizes state of the art
digital recording technology to record
the "live" page from a phone system's
paging port output or unused trunk port.
The FBI-1A then immediately plays
back the recorded page once or twice
(selectable) over the paging system.
Pages of up to 32 seconds can be
Features
• High quality (80K/40K) digital message storage
• High output - 2V RMS into 600 ohms
• 16 or 32 second record time (DIP switch
selectable)
• Compatible with Paging ports or Trunk ports
• Activate recording from VOX detection, contact
closure or loop detect (Trunk mode only)
• VOX sensitivity adjustment
• Cancel page feature
• Selectable page repeat
• Selectable pre-page alert tone
• Selectable post-page alert tone
• Adjustable alert tone volume
• N.O./N.C. relay contacts control paging system
• Record/Playback LED indicator
• Compatible with virtually all paging and
telephone systems
www.VikingElectronics.com
Information: 715-386-8861
PRODUCT MANUAL
stored and the FBI-1A automatically
adjusts to the page length for faster
processing. In addition, the FBI-1A can
be programmed to provide pre-page and
post-page alert tones.
Eliminate Paging Feedback in:
• Warehouses, Factories, Offices
• Retail Stores, Hotels, Airports
• Stadiums, School Gymnasiums, Pools
• Casinos, Bingo Halls, Dining Establishments
• Other large noisy areas
Specifications
Power:
120V AC/13.8V AC 1.25A, UL listed
adapter provided
Dimensions: 5.25" x 3.5" x 1.75" (133mm x
89mm x 44mm )
Shipping Weight: 1.6 lbs (0.73 kg)
Environmental: 32°F to 90°F (0°C to 32°C) with
5% to 95% noncondensing humidity
Sampling Rate: 80K/40K (equivalent)
Maximum Page Length: 16/32 seconds (DIP
switch selectable)
Output Impedance: 600 ohm
Maximum Audio Output: 2V RMS (driving a 600
ohm load)
Talk Battery: 24V DC (Trunk mode only)
Connections: 13 cage clamp screw terminals

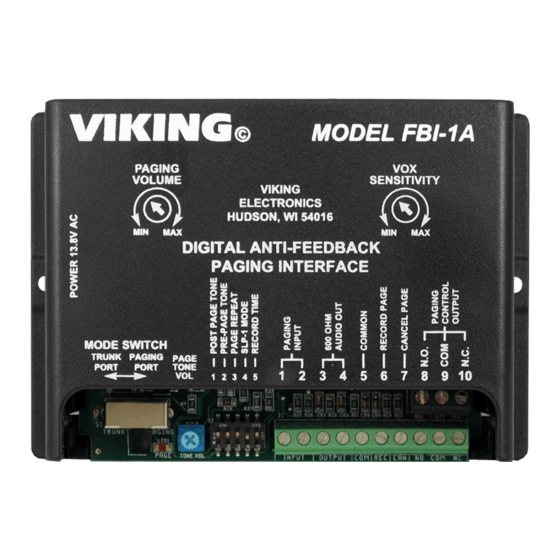

FBI-1A
Anti-Feedback
Paging Interface
October 27, 2017
