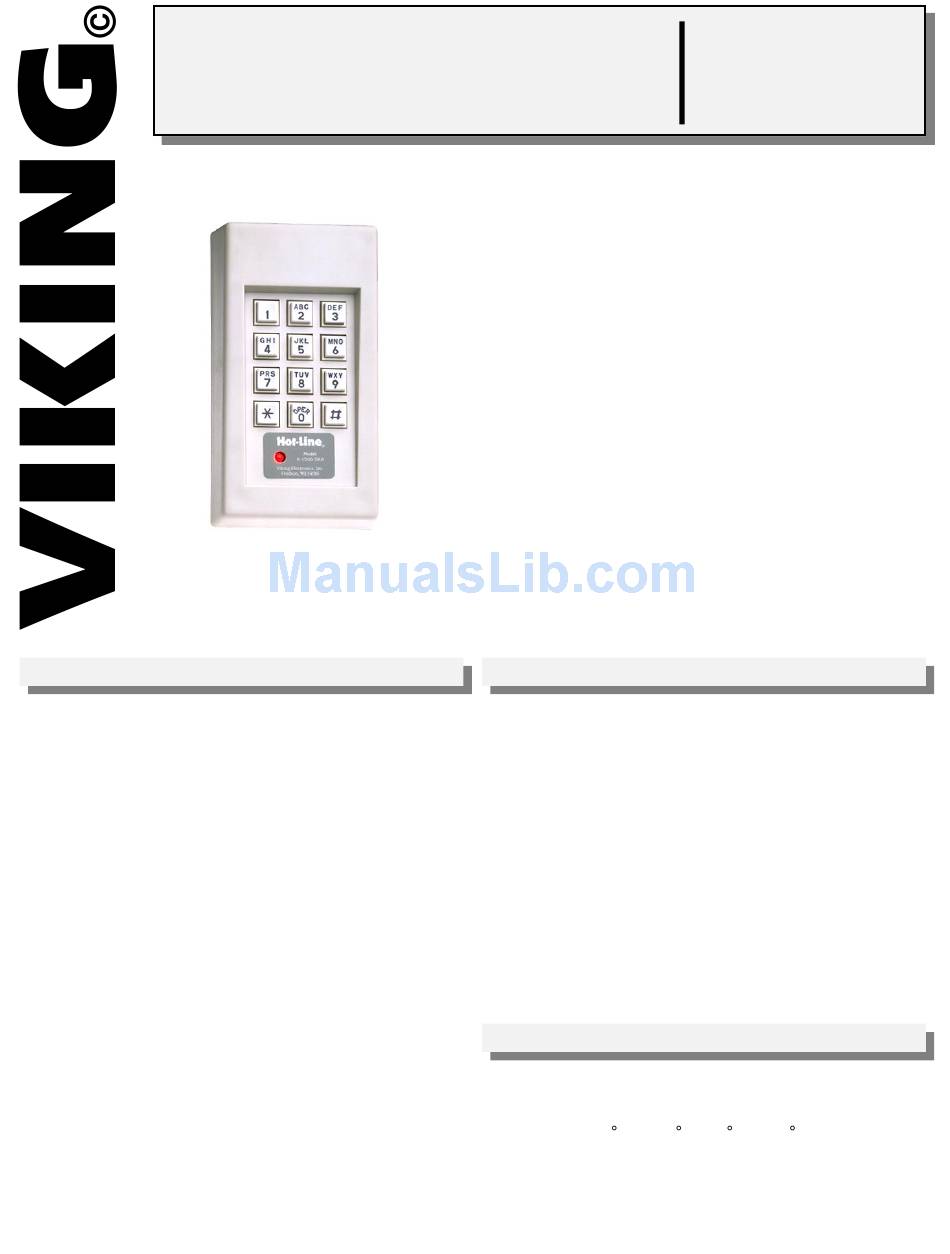

Technical Practice
Touch Tone or Pulse Hot-Line Dialer
Features
• Converts standard phones to Hot-Line phones
• Stores up to an 18 digit speed dial number
• Provides Touch Tone or 10/20pps pulse dialing
• Programmable four second pauses
• Selectable fraudulent outbound call blocking
• Telephone line powered
• Can be operated from a dry contact closure
• Eliminates dedicated line charges
• Operates on any standard C.O., PABX or
Centrex lines
• Keypad for easy programming
Sales...(715) 386-8861
Made in the U.S.A.
Telecommunication Peripheral Products
http://www.VikingElectronics.com
E-mail...Sales@VikingElectronics.com

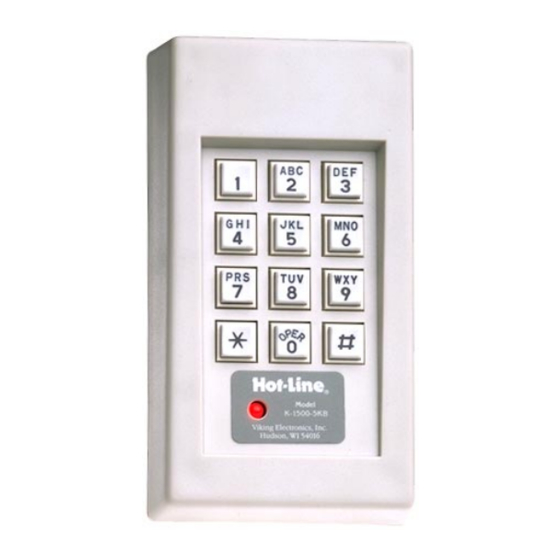

The K-1500-5KB eliminates the need to pay the
premium of leased or dedicated phone lines by
converting any analog phone into a single number
Hot-Line phone. The dialer will operate on any
analog PABX or standard Central Office line with
any conventional analog phone.
The K-1500-5KB is designed to be compatible with
Viking's E-10, E-15, E-20, K-1500-E and K-1500-
EHF emergency, elevator or courtesy phones. The
K-1500-5KB is line powered and comes complete
with an internal battery to retain programming for up
to one year. The K-1500-5KB also allows incoming
calls and can block fraudulent outgoing calls.
Applications
• Replaces leased ring down circuits
• Security and emergency phones
• Elevator phones
• Hotel/motel, airline or rental car reservations
• Automatic long distance (alternate carrier)
prefix dialing
• Apartment security
• Catalog sales
• Money machines
• Emergency alarm dialing
Specifications
Power: Telephone line powered (20 VDC/20mA minimum)
Dimensions: 152mm x 83mm x 45mm (6" x 3.25" x 1.75")
Shipping Weight: .57 Kg (1.25 lbs)
Environmental: 0 C to 32 C (32 F to 90 F) with 5% to 95%
non-condensing humidity
Connections: Standard RJ-11 modular jacks
Battery Back-Up: One year, 9 volt battery provided
DTMF Dialing Speed:
120msec breaks between tones
Pulse Dialing Speed: Switch selectable 10 or 20pps
K-1500-5KB
Hot-Line Dialer
October 28, 1997
-3dBm, 100msec DTMF tones with
