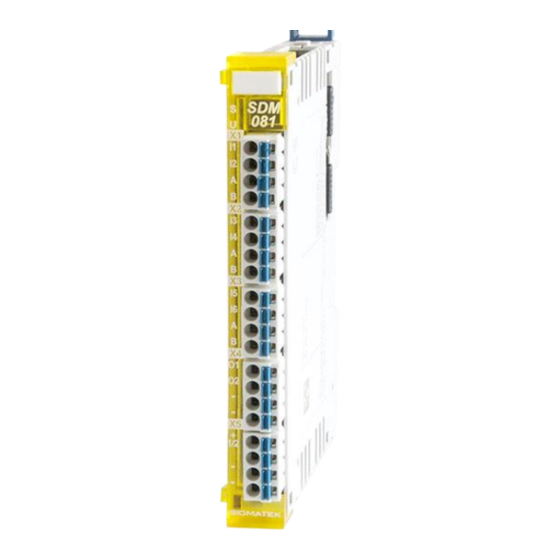

- Page 1 SDM 081 S-DIAS Safety Digital Mixed Module Operating Manual Date of creation: 12.05.2014 Version date: 07.02.2022 Article number: 20-895-081-E...
- Page 2 (print, photocopy, microfilm or in any other process) without the express permission. We reserve the right to make changes in the content without notice. The SIGMATEK GmbH & Co KG is not responsible for technical or printing errors in the handbook and assumes no responsibility for damages that occur through use...
- Page 3 Safety System Handbook, see homepage To use the Safety digital input module in an application, the SDM 081 also requires a Safety CPU module that regulates the synchronized communication with the safety modules using safe bus telegrams. This also includes •...
-
Page 4: Table Of Contents
SDM 081 S-DIAS SAFETY DIGITAL MIXED MODULE Contents Basic Safety Guidelines ............4 General Safety Information ............4 Further Safety Guidelines ............5 General Requirements ..............6 Safety Conformity ..............9 Functional Safety Standards ............9 EU Conformity Declaration ............9 Safety-Relevant Parameters ............ - Page 5 S-DIAS SAFETY DIGITAL MIXED MODULE SDM 081 Mechanical Dimensions ............21 Connector Layout ..............22 Status LEDs ................. 23 Applicable Connectors ............... 23 Label Field ................... 24 Wiring ..................25 Wiring Example ................25 Note ....................26 Mounting ................27 Disposal .................
-
Page 6: Basic Safety Guidelines
SDM 081 S-DIAS SAFETY DIGITAL MIXED MODULE Basic Safety Guidelines General Safety Information If the safety guidelines are not followed, danger to personnel can arise that could lead to serious injury or in worst cases, death. In less serious cases, systems and equipment can be damaged. -
Page 7: Further Safety Guidelines
S-DIAS SAFETY DIGITAL MIXED MODULE SDM 081 Further Safety Guidelines Warning, dangerous electrical voltage Avertissement d’une tension électrique dangereuse Hot surface warning Avertissement d’une surface chaude Danger for ESD-sensitive components Les signes de danger pour les composants sensibles aux décharges électrostatiques... -
Page 8: General Requirements
SIGMATEK GmbH & Co KG n'assume aucune responsabilité pour les dommages causés par le non-respect des consignes de sécurité ou du mode d’emploi respectif. La connaissance de consignes de sécurité et le contenu de cette documentation ainsi que le mode d’emploi du système de... - Page 9 S-DIAS SAFETY DIGITAL MIXED MODULE SDM 081 Installation, montage, programmation, mise service, Personnel qualifié l'exploitation, l'entretien et mise hors service de produits de commande et d'automatisation en général, et de produits liés à la sécurité, en particulier, ne peut être effectuée que par le personnel qualifié.
- Page 10 SDM 081 S-DIAS SAFETY DIGITAL MIXED MODULE Les modules de sécurité sont conçus pour une utilisation dans Utilisation prévue les applications sollicitant un niveau de sécurité et répondent à toutes les conditions nécessaires pour un fonctionnement sûr conformément au niveau de performance e (PL e) selon la norme EN ISO 13849-1/-2 et SIL3 de la norme EN 62061.
-
Page 11: Safety Conformity
EN ISO 13849-2:2012 EU Conformity Declaration CE Declaration of Conformity The SDM 081 complies with the following European directives: • 2006/42/EG “Directive of the European Parliament and of the Council of 17 May 2006 on Machinery and Change to the Directive 95/16/EC”... -
Page 12: Safety-Relevant Parameters
S-DIAS SAFETY DIGITAL MIXED MODULE Safety-Relevant Parameters 2.3.1 Mounting Position Horizontal 0-55 °C Ambient Temperature Mixed Module Safety Parameters Safety Levels SDM 081 including SCP 011/SCP 111 CPU Module Inputs 1-channel application: = 1.7E-09 (1/h) 1-channel application: MTTF = 1843 years PL d / Cat. -
Page 13: Mounting Position Horizontal 0-60 °C Ambient Temperature
S-DIAS SAFETY DIGITAL MIXED MODULE SDM 081 2.3.2 Mounting Position Horizontal 0-60 °C Ambient Temperature Mixed Module Safety Parameters Safety Levels SDM 081 including SCP 011/SCP 111 CPU Module Inputs 1-channel application: = 2.1E-09 (1/h) 1-channel application: MTTF = 1552 years PL d / Cat. - Page 14 SDM 081 S-DIAS SAFETY DIGITAL MIXED MODULE Mixed Module Safety Parameters Safety Levels SDM 081 including SCP 211/SCP 111-S CPU Module Inputs 1-channel application: = 2.3E-09 (1/h) 1-channel application: MTTF = 1162 years PL d / Cat. 2 DC = 97 %...
-
Page 15: Compatibility
S-DIAS SAFETY DIGITAL MIXED MODULE SDM 081 Compatibility Compatibility For compatibility of the S-DIAS Safety modules, see section "Compatibility of S-DIAS Safety Modules" in the system handbook. Test Signals for Cross-Circuit Detection The module sends pulses in cyclic time intervals to detect a crossed circuit in the outputs. -
Page 16: Technical Data
SDM 081 S-DIAS SAFETY DIGITAL MIXED MODULE Technical Data Input Specifications The inputs are Type 1 in accordance with EN 61131-2 Number Input voltage +24 V DC Input voltage range minimum +18 V maximum +30 V low: ≤ +5 V high: ≥... -
Page 17: Input Circuit
S-DIAS SAFETY DIGITAL MIXED MODULE SDM 081 Input Circuit Output Specifications All safety outputs are short-circuit protected and specified in accordance with EN 61131-2. The outputs are compatible with input of Types 1, 2 and 3. Number Rated output voltage... -
Page 18: Maximum Inductive Load L (Mh) At Load Current I (A)
SDM 081 S-DIAS SAFETY DIGITAL MIXED MODULE Cutoff Test Pulse Timing A fuse for the supply voltage must be installed, which can sufficiently limit voltage and current. Un fusible conforme aux limites de la tension et du courant d'alimentation doit être présent en amont de l'alimentation. -
Page 19: Maximum Capacitive Load C (Μf) At Load Current I (A)
S-DIAS SAFETY DIGITAL MIXED MODULE SDM 081 3.4.2 Maximum Capacitive Load C (µF) at Load Current I (A) I (A) L (mH) C (µF) 6400 1,25 1600 3,13 8,75 07.02.2022 Page 17... -
Page 20: Output Circuit
SDM 081 S-DIAS SAFETY DIGITAL MIXED MODULE Output Circuit The figure shows the internal output circuit of the STO 081. Electrical Requirements Voltage supply from Safety bus +12 V Current consumption on the maximum 34 mA Safety bus (+12 V supply) - Page 21 S-DIAS SAFETY DIGITAL MIXED MODULE SDM 081 07.02.2022 Page 19...
-
Page 22: Miscellaneous
SDM 081 S-DIAS SAFETY DIGITAL MIXED MODULE Miscellaneous Article number 20-895-081 Hardware version 1.00 / 2.00 / 3.xx Standard UL 508 (E247993) Approbations , CE, TÜV Austria EG type-tested Environmental Conditions Storage temperature -20 ... +85 °C 0 … +55 °C (UL) Environmental temperature 0 …... -
Page 23: Mechanical Dimensions
S-DIAS SAFETY DIGITAL MIXED MODULE SDM 081 Mechanical Dimensions 07.02.2022 Page 21... -
Page 24: Connector Layout
SDM 081 S-DIAS SAFETY DIGITAL MIXED MODULE Connector Layout The GND supply (X5: Pin 3 and Pin 4) is internally bridged. Only one GND pin (pin 3 or pin 4) is required to power the module. The bridged connections may be used for further looping of the +24 V supply and the GND supply. -
Page 25: Status Leds
S-DIAS SAFETY DIGITAL MIXED MODULE SDM 081 Status LEDs Bus Status green bus communication OK no supply available BLINKING (5 Hz) no communication Safety Used yellow module is used and no errors exist module is not used or not in operational mode... -
Page 26: Label Field
SDM 081 S-DIAS SAFETY DIGITAL MIXED MODULE Label Field Manufacturer Weidmüller Type MF 10/5 CABUR MC NE WS Weidmüller article number 1854510000 Compatible printer Weidmüller Type Printjet Advanced 230V Weidmüller article number 1324380000 Page 24 07.02.2022... -
Page 27: Wiring
S-DIAS SAFETY DIGITAL MIXED MODULE SDM 081 Wiring Wiring Example 07.02.2022 Page 25... -
Page 28: Note
SDM 081 S-DIAS SAFETY DIGITAL MIXED MODULE Note The input filters, which suppress noise signals, allow operation in harsh environmental conditions. A careful wiring method is also recommended to ensure error-free function. The following installation guidelines should be observed: •... -
Page 29: Mounting
S-DIAS SAFETY DIGITAL MIXED MODULE SDM 081 Mounting The S-DIAS modules are designed for installation into the control cabinet. To mount the modules a DIN-rail is required. The DIN rail must establish a conductive connection with the back wall of the control cabinet. The individual S-DIAS modules are mounted on the DIN rail as a block and secured with latches. - Page 30 SDM 081 S-DIAS SAFETY DIGITAL MIXED MODULE Recommended minimum distances of the S-DIAS modules to the surrounding components or control cabinet wall: a, b, c … distances in mm (inches) Page 28 07.02.2022...
-
Page 31: Disposal
S-DIAS SAFETY DIGITAL MIXED MODULE SDM 081 Disposal For the disposal of the product, the respective guidelines, possibly country-specific, must be observed and followed. 07.02.2022 Page 29... -
Page 32: Hardware Class Sdm081
Hardware Class SDM081 for the S-DIAS Safety SDM081 digital in and output module This hardware class is used to control the SDM 081 hardware module with 6 safe digital inputs and 2 safe digital outputs. More information on the hardware can be found in the module documentation. -
Page 33: Interfaces
S-DIAS SAFETY DIGITAL MIXED MODULE SDM 081 Interfaces 9.2.1 Clients The client must be connected to a Save S-DIAS port, an "SdiasSafetyOut_[x]” SdiasSafetyIn server. Place The physical location of the hardware module is entered in this client. Up to 16 modules, 0 to 15, can be assigned. -
Page 34: Communication Interfaces
SDM 081 S-DIAS SAFETY DIGITAL MIXED MODULE QuitComError A communication error is canceled by writing to this server. If the safety.dlm is used, the dlm can also cancel other errors starting with version 6. The canceling of errors is forwarded to the Safety CPU and canceled with all other errors in the Safety CPU. -
Page 35: Example
S-DIAS SAFETY DIGITAL MIXED MODULE SDM 081 Example 07.02.2022 Page 33... - Page 36 SDM 081 S-DIAS SAFETY DIGITAL MIXED MODULE Documentation Changes Change date Affected Chapter Note page(s) 18.07.2014 5 Connector Layout Added wiring notice 08.09.2014 3.8 Miscellaneous Added Standard 30.01.2015 6.2 Note Added note concerning connecting the S-DIAS module while voltage is applied 26.03.2015...
- Page 37 S-DIAS SAFETY DIGITAL MIXED MODULE SDM 081 05.10.2018 3.2 Specifications for Cross- Note for cable capacitance and for cable resistance Circuit Detection Signal added Outputs 02.04.2019 2.3 Safety-Relevant Correction of the safety-relevant parameters Parameters 3.8 Environmental Conditions Corrections environmental conditions Corrections due to CE 20.09.2019...
