Project Source B30B Assembly Instruction Manual page 8

ASSEMBLY INSTRUCTIONS

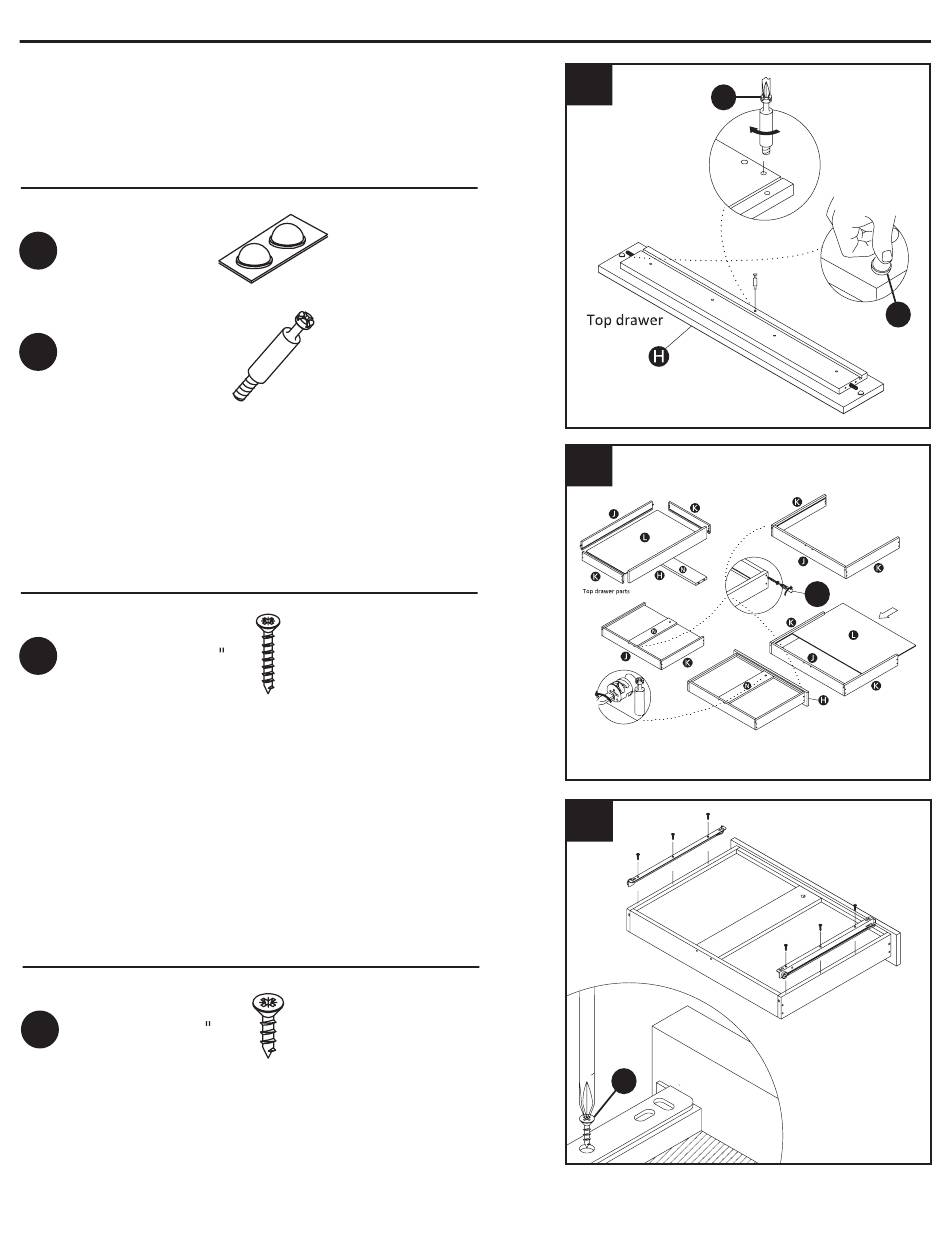

7. Place the bumper pad on the drawer front as shown.
Attach the minifix shaft using phillips screwdriver as
shown.
Hardware Used
KK Bumper 2MM
BB Minifix shaft
8. Using a phillips head screwdriver, secure the
drawer box with csk screws 1 ½" as shown in the
illustration. Be careful not to over-tighten as this
may damage the product.
Hardware Used
II CSK screw 1 1/2
9. Using a phillips head screwdriver, secure the epoxy
bottom runner to the underside of the drawer
box with the csk screws 5/8" as shown in the
illustration. Be careful not to over-tighten as this
may damage the product.
Hardware Used
HH CSK screw 5/8
7
x 2
x 1
8
x 10
9
x 6
8
BB
Step 3
Step 4
HH
KK
Step 1
II
Step 2
