Project Source B30B Assembly Instruction Manual page 10

ASSEMBLY INSTRUCTIONS

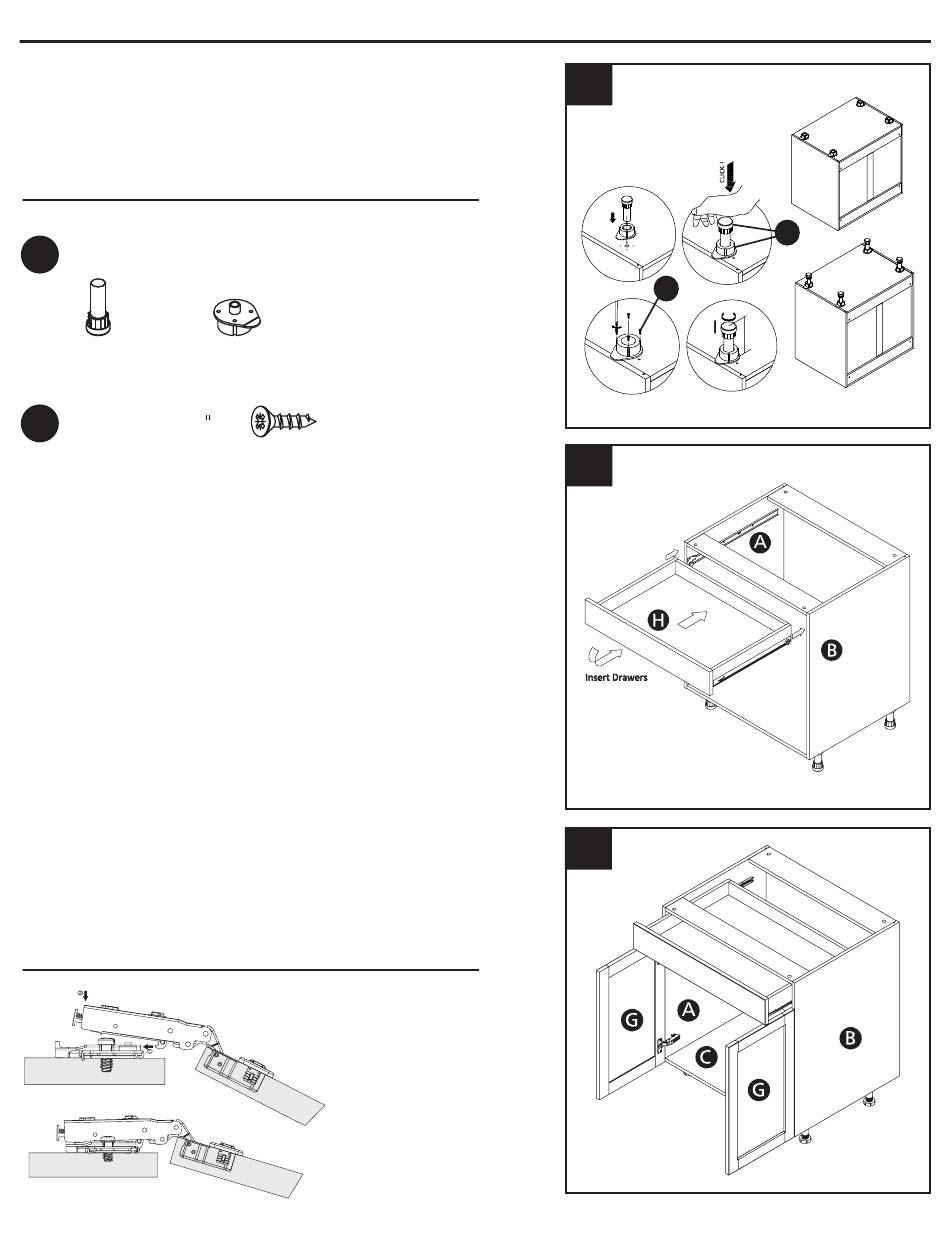

13. Position the mounting bracket for the legs on the
underside of the cabinet box and using a phillips
head screwdriver, secure into place with csk screws
5/8" as per the illustration.
Hardware Used
DD PVC adjustable leg
Leg Mounting bracket
CSK screw 5/8
HH
14. Insert the assembled drawer box into the
assembled cabinet box as per the illustration.
If adjustments to the drawer are needed, instructions
are available on page 11 of this manual.
15. Mount the door on the cabinet by connecting the
hinges on the door to the mounting plates on
the box. Use the hinge guide below for detailed
instructions.
If the adjustments to the door are needed,
instructions are available on page 11 of this manual.
Hinge guide
105 o Hinge
13
x 4
x 16
14
15
10
DD
HH
