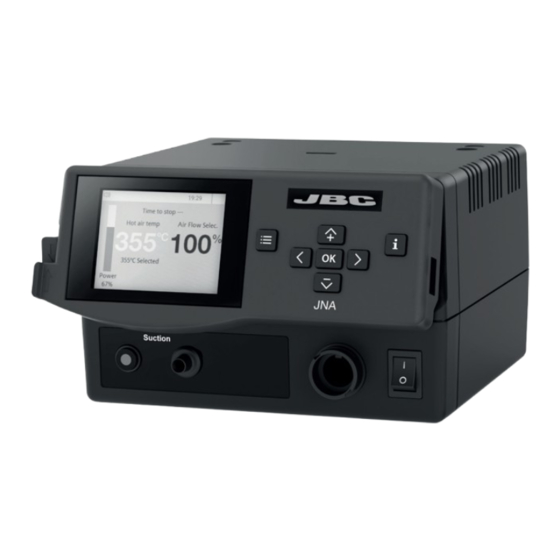

High-precision hot air control unit
Hide thumbs Also See for JNA:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
JNA
High-Precision Hot Air Control Unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JNA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc JNA

Summary of Contents for jbc JNA

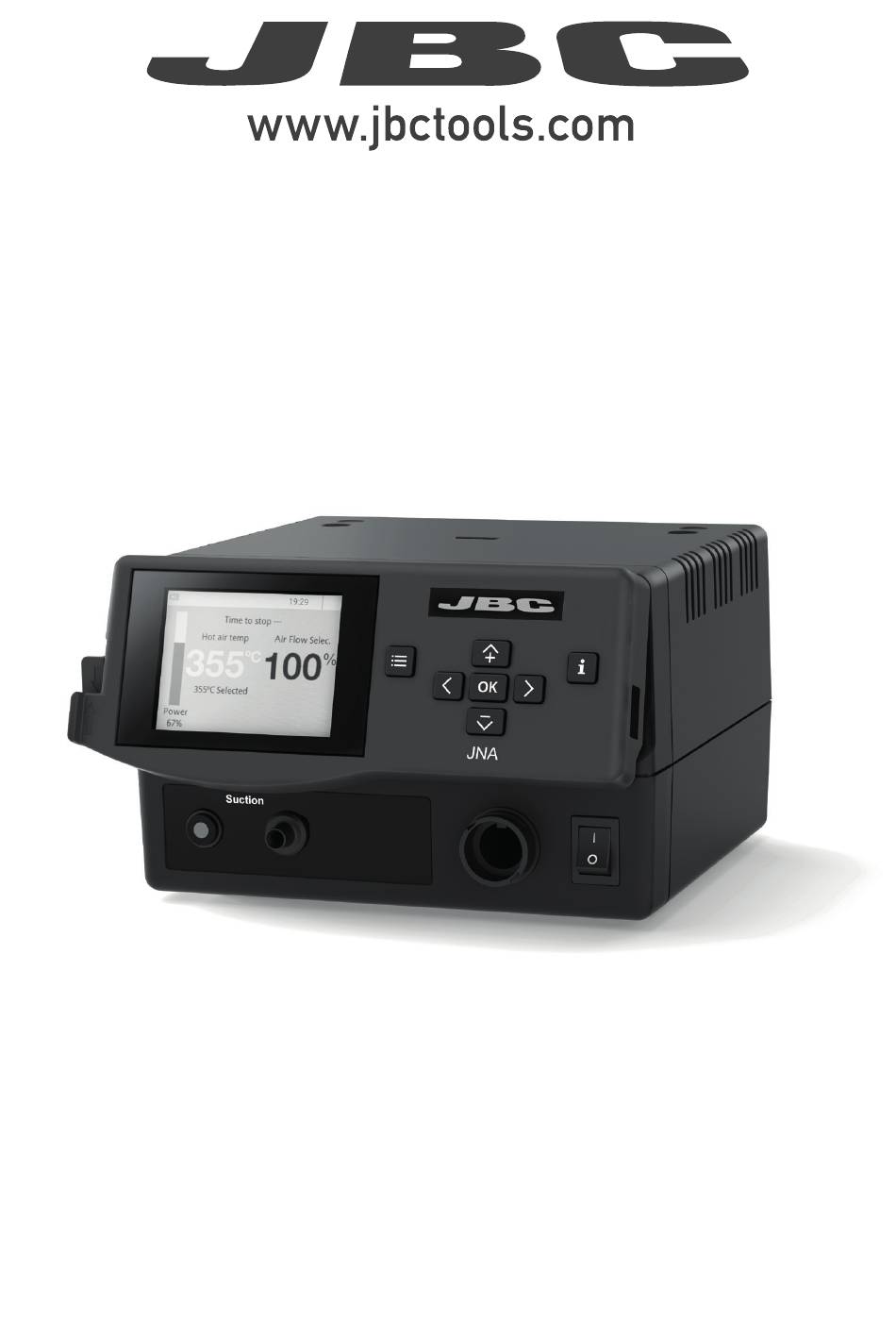

  • Page 1 INSTRUCTION MANUAL High-Precision Hot Air Control Unit...

  • Page 2: Packing List

    This manual corresponds to the following references: JNA-1UB (120V) JNA-2UB (230V) JNA-9UB (100V) Packing List The following items are included: Power Cord ..........1 unit High-Precision Hot Air Ref. 0023715 (120V) Control Unit ..........1 unit 0023714 (230V) 0024092 (100V) Manual ............1 unit...

  • Page 3: Features And Connections

    para manuales - color gris 200 mm Features and Connections 130 mm 130 mm High-Precision Hot Air J125 * Control Unit Cartridge Range 100 mm Display 80 mm USB-A Connector Pick and Place 60 mm Activation Switch Main Switch 50 mm NH * High-Precision T260 *...
  • Page 4 JNA Work Screen JNA offers an intuitive user interface which provides quick access to station parameters. Default PIN: 0105 Status Bar 17:14 Status Indicator 4m 38s Instant Power Supplied to Hot Air T emp. Air Flow Selec. Heater ºC Current...

  • Page 5: System Notifications

    - color gris 200 mm Station Update 130 mm 130 mm Station Update Download the JBC Update File from www.jbctools.com/software.html. Insert the USB flash drive with the 100 mm downloaded file into the station. Update 80 mm System Notifications The following icons will be displayed on the screen’s status bar.

  • Page 6: Changing Cartridges

    Changing Cartridges* Save time and change the cartridge safely without switching the station off. 1. Removing 2. Inserting 3. Fixing Holes Place the cartridge in the ex- Place the handpiece on top of Use the holes to fix the tractor and pull the handle to the new cartridge and press cartridge at the right depth remove it.

  • Page 7: Compatible Accessories

    Fuse holder para manuales - color gris 200 mm Use only with a 250V fuse Use only with a 250V fuse Fuse holder Fuse holder Employer uniquement avec Employer uniquement avec Fuse holder un fusible de 250V un fusible de 250V Fuse holder Fuse holde Compatible Accessories*...
  • Page 8 Operation Choose the needle that best fits for the component and the suction cup if needed and start as follows: Press the button to start/stop the suction Maximum working temp: 250ºC (482ºF) Maximum working temp: 250ºC (482ºF) 1. Suction 2. Release Maximum working temp: 250ºC / 482ºF Insert the needle with Make sure the needle...
  • Page 9 para manuales - color gris 200 mm Pedal P405* 130 mm 130 mm By means of the pedal connection, NH High-Precision Heater Hose Set and the T260 Pick & Place Tool can be activated and deactivated. 100 mm Made in EU PATENTED 85-265V 50/60Hz Power 70W...
  • Page 10 Preheating is a process that minimizes thermal stress and allows the soldering process to take no longer than it should. For most rework processes JBC recommends a preheat temperature between 90 and 130 ºC / 195 and 265 ºF and not exceed a heating rate of 4 ºC/s.

  • Page 11: Maintenance

    Employer uniquement avec un fusible de 250V un fusible de 250V Fuse holder Fuse holder - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
  • Page 12 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Make sure that it is properly grounded before use.
  • Page 13 para manuales - color gris 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
  • Page 14 Notes...

  • Page 15: Specifications

    130 mm 130 mm High-Prescision Hot Air Control Unit Ref.: JNA-1UB 120V 50/60Hz. Main fuse: T2A. Rated current 0.85A 100 mm Ref.: JNA-2UB 230V 50/60Hz. Main fuse: T2A. Rated current 0.85A Ref.: JNA-9UB 100V 50/60Hz. Main fuse: T2A. Rated current 0.85A - Temperature Selection: 150 - 450 °C / 300 - 840 °F...
  • Page 16 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.

This manual is also suitable for:

Jna-1ubJna-2ubJna-9ub
