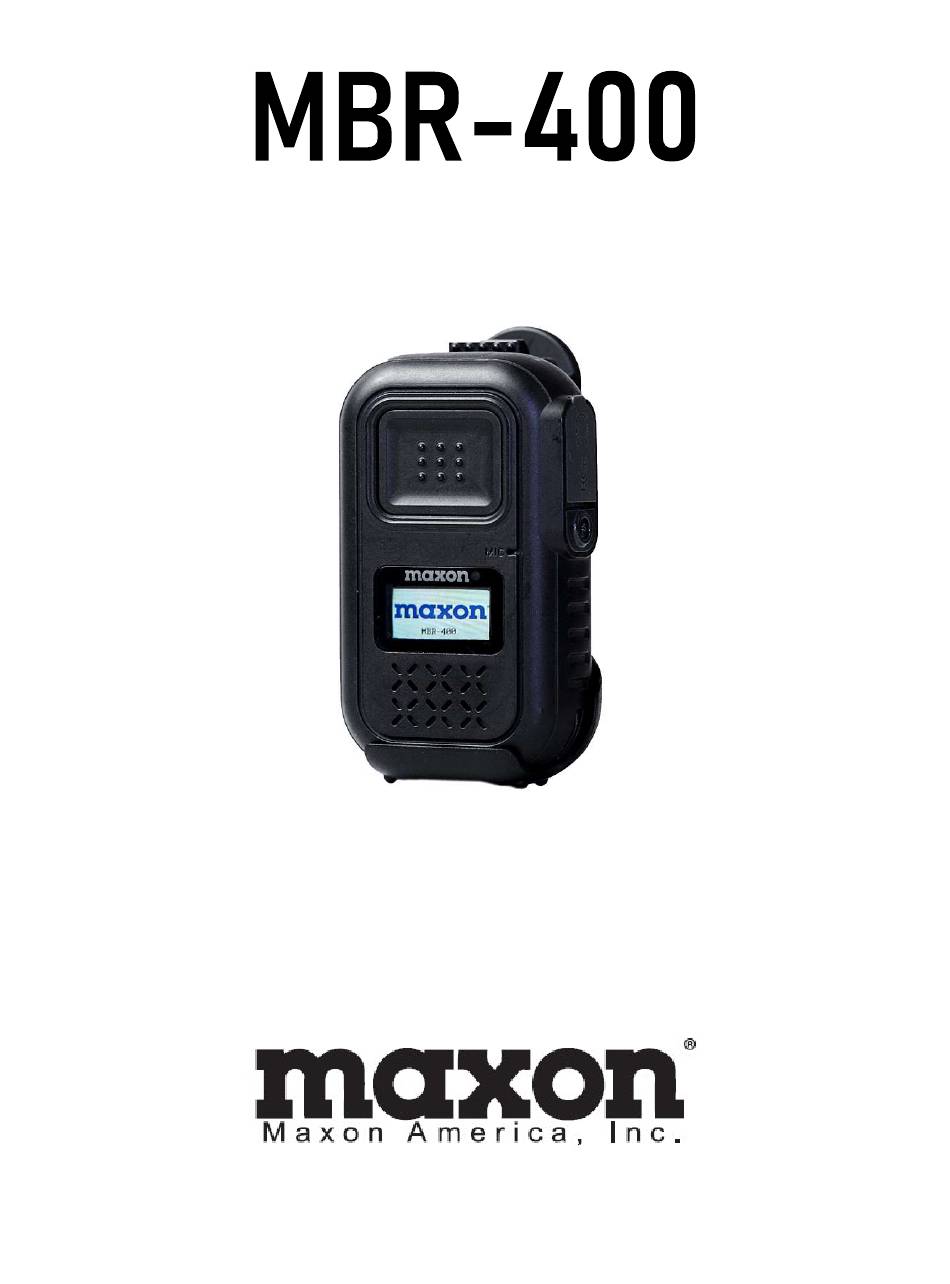

- Page 1 UHF Business Radio User Manual...
-
Page 2: Table Of Contents

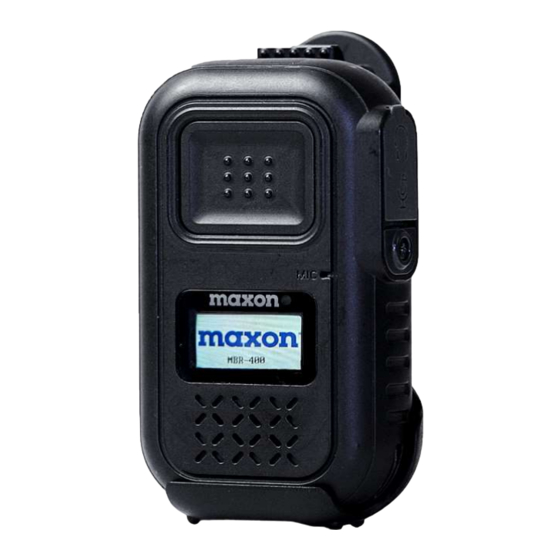

In-Box Contents -----------------------------------------------------------(Pg5) Description of Buttons & LCD Display--------------------------------(Pg6) Button & Accessory Jack Operations --------------------------------(Pg7) Installation & Removal ---------------------------------------------------(Pg8) Charging ---------------------------------------------------------------------(Pg9) MBR-400 Operation ---------------------------------------------------- (Pg10) Licensing & Frequency charts ----------------------------------------(Pg15) Safety Notes & FCC ----------------------------------------------------(Pg19) - Page 3 MBR-400 Features The Maxon MBR-400 is a simple and compact business radio perfect for restaurants, supermarkets, retail stores, and social clubs. Pocket sized, it fits perfectly in your palm and can be used with an earpiece (included) or loudspeaker audio. With a built-in antenna and unobtrusive swivel belt clip, you will be able to act freely and barely notice you are wearing a radio as you communicate to the rest of your co-workers throughout your day.
-
Page 4: Specifications
Specifications MBR-400 Business Radio Specifications General Frequency Range 440 ~480 MHz Frequency Stability ±1.5ppm (-30 to +60℃) Programmable Channels 16 Channels, 1 Zone Channel Spacing 12.5KHz Digital Vocoder AMBE++ Voice Compression Algorithm Dimensions 86mm(H) x 51.5mm(W) x 22mm(D) Weight... -
Page 5: In-Box Contents
MBR-400 Radio Single Slot Charger Swivel Belt Clip C-Type Adapter w/Wall Plug Headset Figure 1-1) MBR-400 Main Package Contents Accessory Part Numbers: MA-400L: Single Slot Charger PS-M4110: USA 110V/1A Adaptor MA-400C: USB-C Cable for Adaptor PS-M406110: USA 110V/1A Adaptor for Multi Charger ... -
Page 6: Description Of Buttons & Lcd Display
2. Description of Buttons & LCD Display Figure 2-1) MBR-400 Layout... -
Page 7: Button & Accessory Jack Operations
3. Button and Accessory Jack Operations Button & Jack Operation Description Press & Hold the Power Button to turn on MBR-400. MAXON logo will appear on the LCD Screen followed by a chime sound. To turn off the radio, press & hold Power ON/OFF &... -
Page 8: Installation & Removal
Figure 4-1) Belt Clip Installation and Removal To attach the Swivel belt clip to MBR-400, align the belt clip to the back of MBR-400 as shown in the figure 4-1 above and push it down to direction 1 and back against the locking tab. The clip will "click"... -
Page 9: Charging
5.2 How to Charge MBR-400 can be charged with the in-box MA-400L charger and also most chargers using a USB C- type cable. USB ports from a computer may not have enough power to charge a radio while the radio is turned on. -
Page 10: Mbr-400 Operation
Radio Mode you are in (Analog Channel vs Digital Channel) and what has been turned off or on with the CPS programmer. Figure 6-1) MBR-400 Menu Tree ☞ Note) If no menu selections are made within 25 seconds, the radio will go into Standby Mode. - Page 11 1) Contact List (Digital Mode Only) The Contact List provides a list of individuals, Groups, or “All Calls” to whom you can make a Direct Call when on a Digital Channel. Contact Lists are set-up within the radio using the CPS Software.
- Page 12 www.maxonamerica.com (1) Device Settings (** Setting not available in Retail version, Add w/CPS Software) Channel Set ① ‘Channel Set’ allows you to select a preprogrammed channel to make a call. Channels can be programmed with the CPS Software. Sound ② 'Sound' allows you to adjust sounds of the radio.
- Page 13 Figure 6-2) MBR-400 Screen Setting View Language ⑧ This function is to select the language (English or Spanish) for the menus. (2) Function Settings (** Function not activated in Retail version; Enable w/CPS SW) Subtone (Analog Mode Only) ① Subtone functions only on Analog Channel. A user may set three subtones of CTCSS/DCS/Reverse DCS.
- Page 14 www.maxonamerica.com squelch reduces the chance of the audio unmuting due to RF interference. Color Code (Digital Mode Only) ⑦ Color Codes are used in DMR to help separate radios on the same frequency & is selectable with both the CPS program and via the radio itself. The radio setting allows you to change your color code value between 0 and 15.
-
Page 15: Licensing & Frequency Charts
This device complies with Parts 90 and 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful Interference. MBR-400 Series radios operate on radio frequencies regulated by the Federal Communications Commission (FCC). To transmit on these frequencies, you are required to have a license issued by the FCC. Application is made available on FCC Form 601 and Schedules D, H, and Remittance Form 159. - Page 16 www.maxonamerica.com...
- Page 18 www.maxonamerica.com 7.2 CTCSS and DCS Code Tables (for use with CPS program)
- Page 19 8. Precautions 8.1 Precautions for safe operation Don’t use other manufacturer’s accessories (such as rechargeable battery, adaptor, external speaker microphone and earphone, etc.). Unknown or unauthorized accessories may damage the radio and void the warranty. Don’t disassemble or rearrange the parts and accessories of your radio. The disassembly or reorganization of your radio is punishable by law and can cause damage to the radio that will not be covered by the warranty.
-
Page 20: Safety Notes & Fcc
www.maxonamerica.com 9. Safety Notes & FCC 9.1 Safety Notes & FCC Please make sure to read the followings above for safe and effective use of the radio. • Please keep the Radio away at least 1 inch from the body. •... - Page 21 Thank you for purchasing MBR-400. 1. This product has passed the strict quality control and testing procedures. 2. Warranty is one year from original date of purchase from an Authorized Maxon Dealer or Authorized Online Retailer. Failure of the product under normal operating conditions during the warranty period may be repaired by Maxon America free of charge.
- Page 22 www.maxonamerica.com This User manual is subject to change without notice.
