BendPak SP-7XE Installation And Operation Manual

Full-rise scissor lift
Hide thumbs Also See for SP-7XE:
Table of Contents

Advertisement

Quick Links

Download this manual
Installation and Operation Manual
Model
:
• SP-7XE
• SP-7XEF
Original Instructions in
the English Language.
Designed and engineered by BendPak Inc. in Southern California, USA. Made in China.
IMPORTANT Safety Instructions, save these instructions! Read the entire contents of
this manual before using this product. Failure to follow the instructions and safety precautions in this
manual can result in severe injury or death. Make sure all other operators also read this manual. Keep
the manual near the product for future reference. By proceeding with installation and
operation, you agree that you fully understand the contents of this manual and
assume full responsibility for product use.
Full-Rise Scissor Lift
Manual P/N 5900010 — Manual Revision B3 — September 2023
⚠

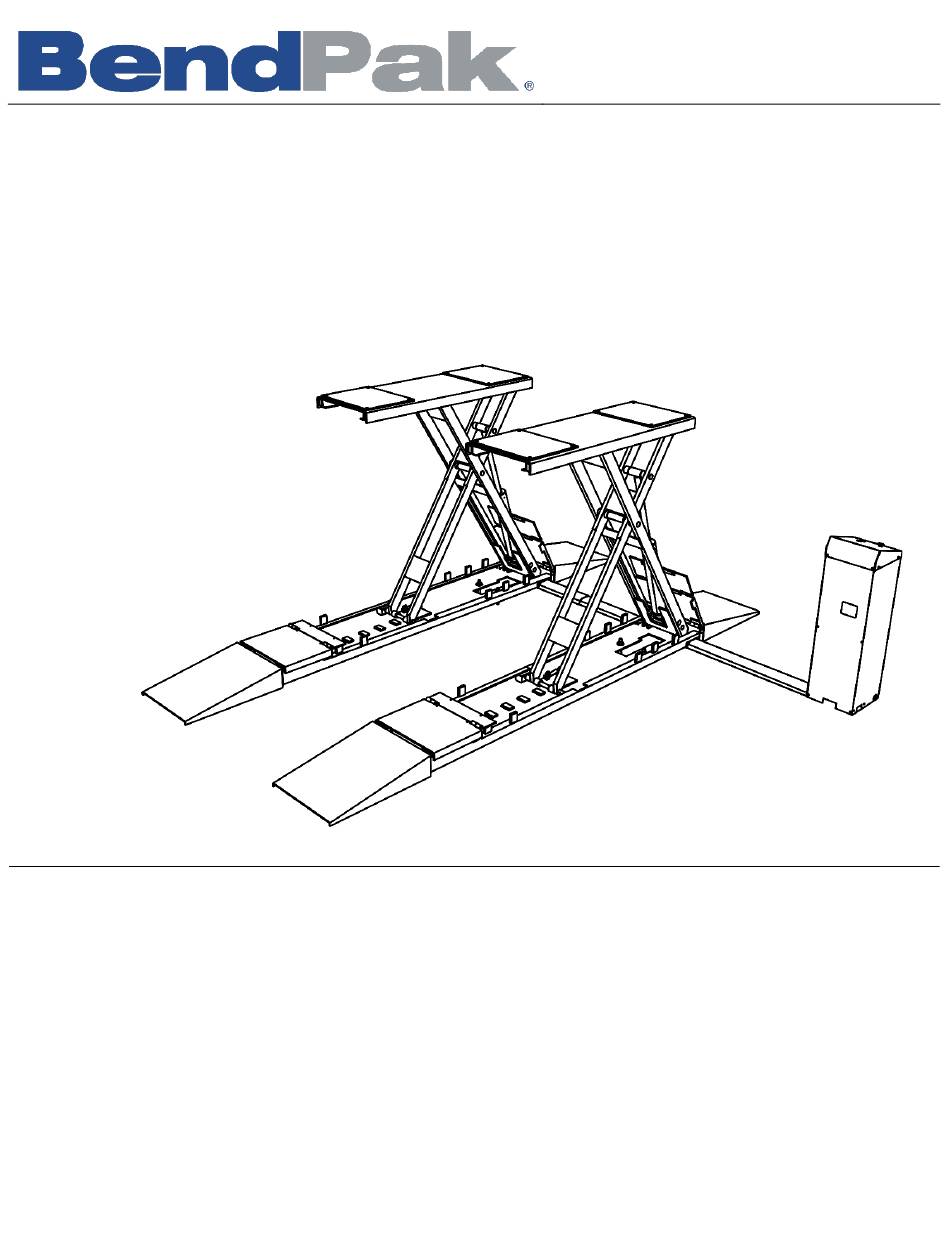

Model SP-7XE shown above
DANGER
1645 Lemonwood Dr.
Santa Paula, CA, 93060 USA
Toll Free: (800) 253-2363
Telephone: (805) 933-9970
bendpak.com
