Installation and Operation Manual
Manual P/N 5900010 — Manual Revision B — June 2022
Models
:
• SP-7XE
Designed and engineered by BendPak Inc. in Southern California, USA. Made in China.
⚠
DANGER
Full-Rise Scissor Lift
• SP-7XEF
IMPORTANT Safety Instructions, save these
instructions! Read the
before
using this product. Failure to follow the instructions and
safety precautions in this manual can result in serious injury or
death. Make sure all other operators also read this manual. Keep
the manual near the product for future reference.
with installation and operation, you agree that you fully
understand the contents of this manual and assume
full responsibility for product use.
Santa Paula, CA, 93060 USA
Telephone: (805) 933-9970
entire
contents of this manual
1645 Lemonwood Dr.
Toll Free: (800) 253-2363
bendpak.com

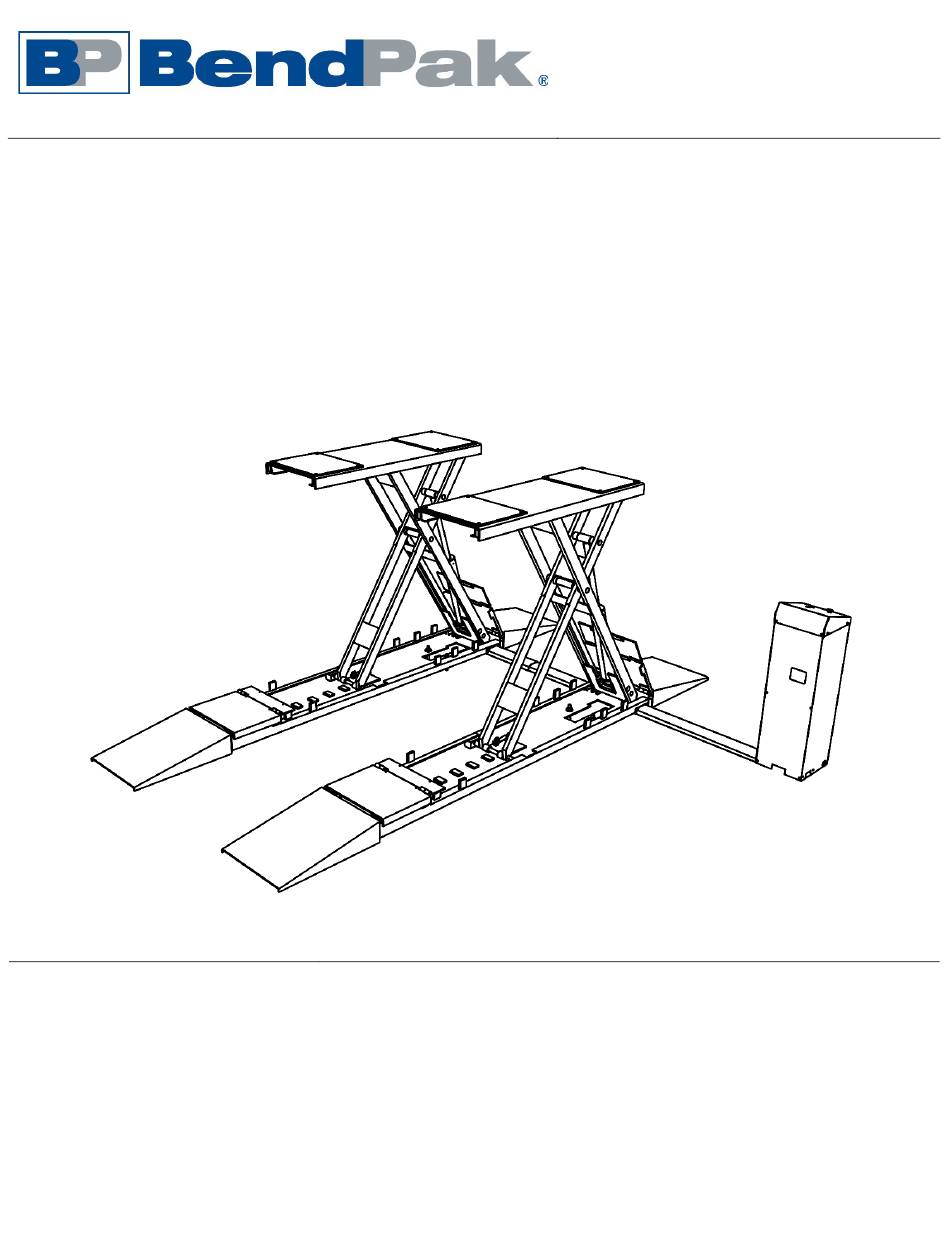

Model SP-7XE shown.
By proceeding
