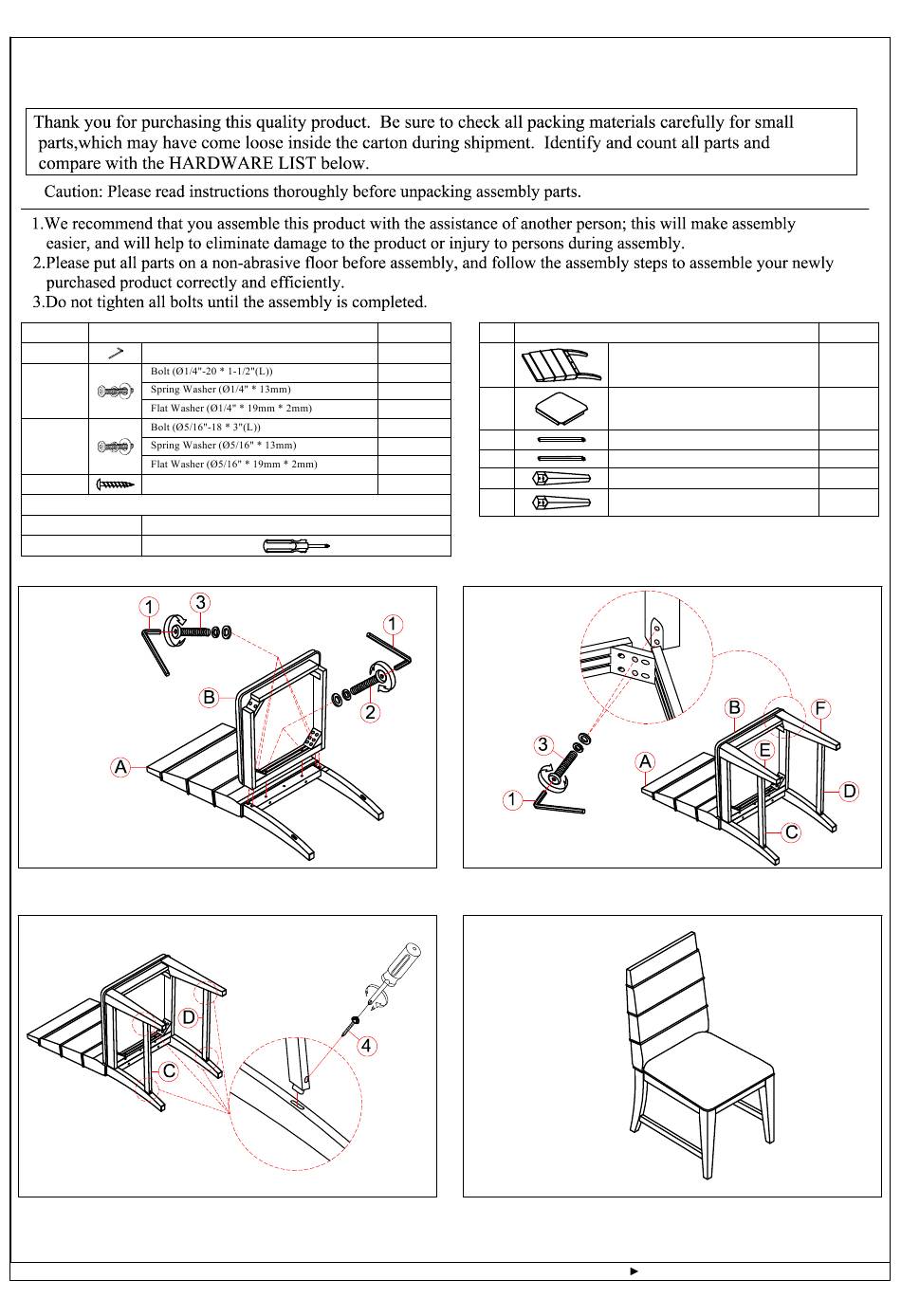

ROOMS TO GO NAJA 9967-4 Assembly Instructions

NO. HARDWARE LIST
1
Allen Key (L57 * 4mm)
2
3
4
Screw M4 * 1-1/2"
TOOLS REQUIRED (NOT PROVIDED)
Description
Phillips screwdriver
STEP/PASO:1
Assemble the seat frame corner with the chair back.
Do not tighten all bolts until seat frame is fully assembly.
STEP/PASO: 3
Assemble the side stretcher and with the chair leg,
Do not tighten all bolts until they are fully assembly
Hardware pack Location(s):
Assembly Instructions

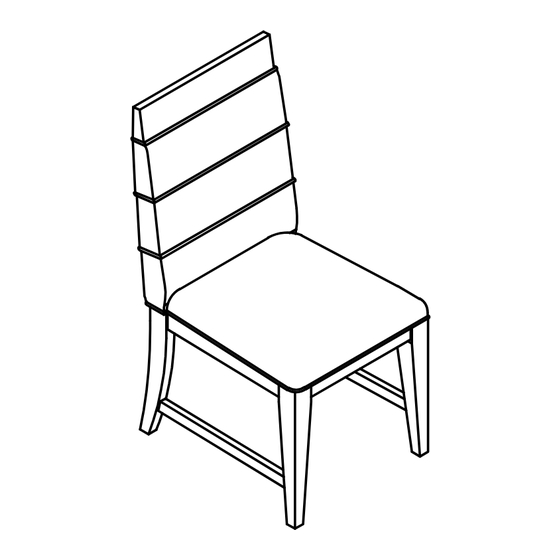

NAJA 9967-4 SIDE CHAIR
Sketch
NAJA 9967-4 SIDE CHAIR
This product is manufactured by NAJA for ROOMS TO GO
SKU#42499675
Q' TY
NO.
1
A
2
2
B
2
8
C
8
D
8
E
4
F
STEP/PASO: 2
Assemble the front leg with the chair seat. Meanwhlie,
put the side stretcher in correct position like picture showed.
COMPLETED
SKU#42499675
PARTS LIST
Back Frame
Seat Frame
Left Side Stretcher
Right Side Stretcher
Left Front Leg
Right Front Leg
Q' TY
1
1
1
1
1
1
Assembly completed
MADE IN VIETNAM
Page 1 of 1
