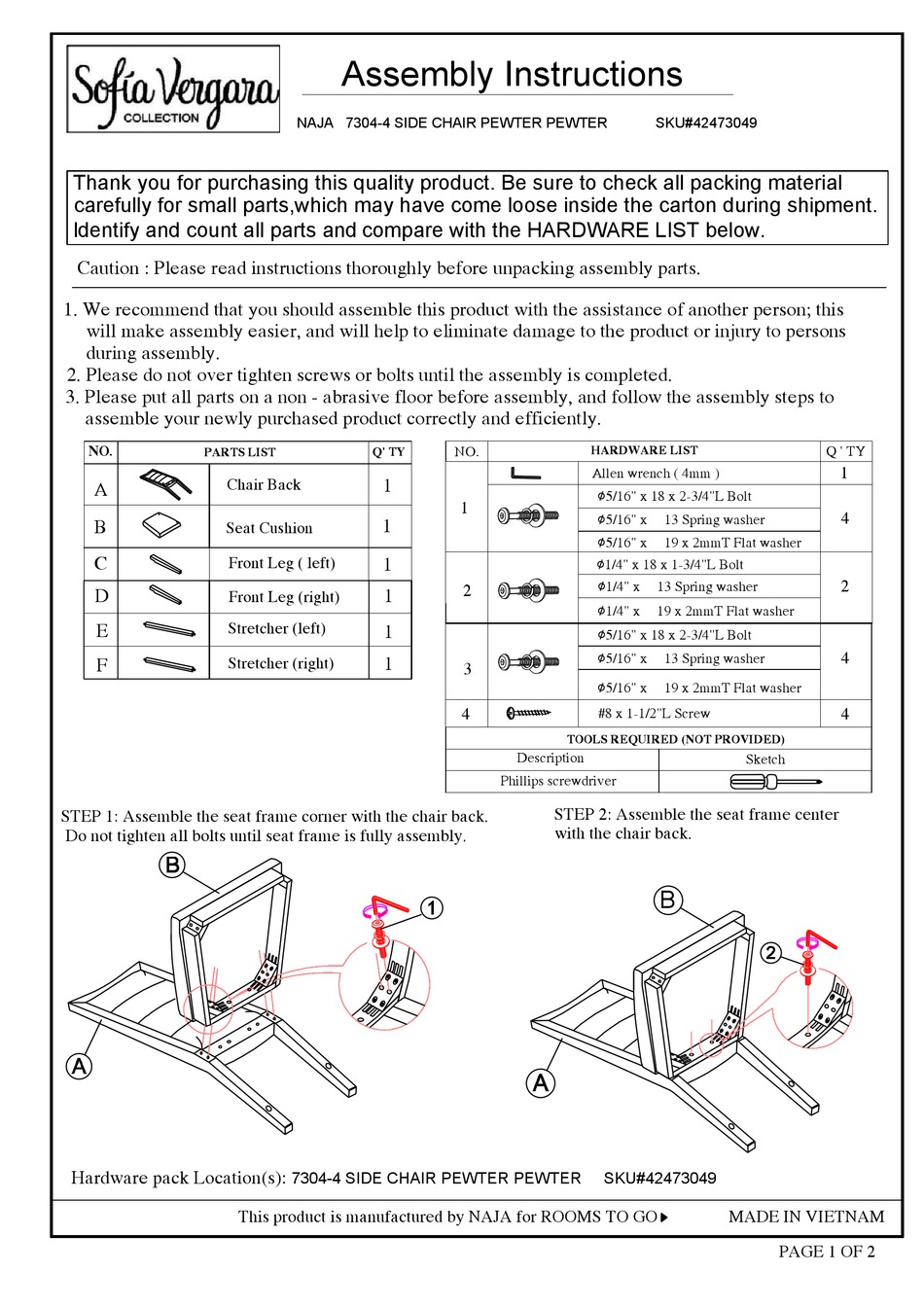

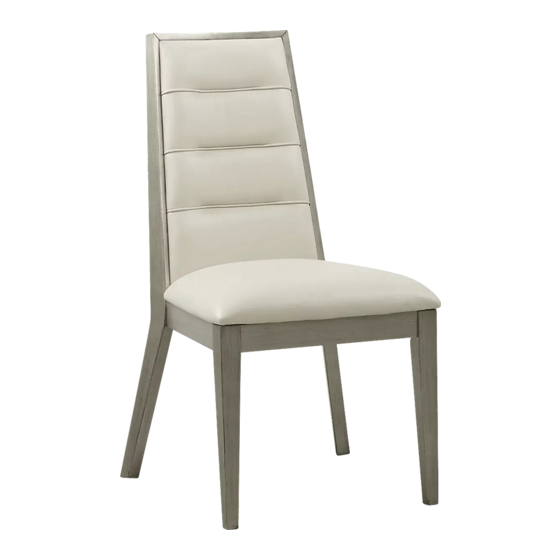

ROOMS TO GO Sofia Vergara NAJA 7304-4 Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing material
carefully for small parts,which may have come loose inside the carton during shipment.
ldentify and count all parts and compare with the HARDWARE LIST below.
Caution : Please read instructions thoroughly before unpacking assembly parts.
1. We recommend that you should assemble this product with the assistance of another person; this
will make assembly easier, and will help to eliminate damage to the product or injury to persons
during assembly.
2. Please do not over tighten screws or bolts until the assembly is completed.
3. Please put all parts on a non - abrasive floor before assembly, and follow the assembly steps to
assemble your newly purchased product correctly and efficiently.
NO.

PARTS LIST

Chair Back
A
B
Seat Cushion
C
Front Leg ( left)
D
Front Leg (right)
Stretcher (left)
E
F Stretcher (right)
STEP 1: Assemble the seat frame corner with the chair back.
Do not tighten all bolts until seat frame is fully assembly.
Hardware pack Location(s):
Assembly Instructions
NAJA 7304-4 SIDE CHAIR PEWTER PEWTER
Q' TY
1
1
1
1
1
1
7304-4 SIDE CHAIR PEWTER PEWTER
This product is manufactured by NAJA for ROOMS TO GO
NO.

HARDWARE LIST

Allen wrench ( 4mm )
 ∅ 5/16" x 18 x 2-3/4"L Bolt
1

∅ 5/16" x

∅ 5/16" x

∅ 1/4" x 18 x 1-3/4"L Bolt
 ∅ 1/4" x
2
 ∅ 1/4" x

∅ 5/16" x 18 x 2-3/4"L Bolt
 ∅ 5/16" x
3
 ∅ 5/16" x
4  #8 x 1-1/2"L Screw

TOOLS REQUIRED (NOT PROVIDED)

Description
Phillips screwdriver
STEP 2: Assemble the seat frame center
with the chair back.
SKU#42473049
SKU#42473049
 13 Spring washer
 19 x 2mmT Flat washer
 13 Spring washer
 19 x 2mmT Flat washer
 13 Spring washer
 19 x 2mmT Flat washer
Sketch
B
MADE IN VIETNAM
PAGE 1 OF 2
Q ' TY
1
4
2
4
4
