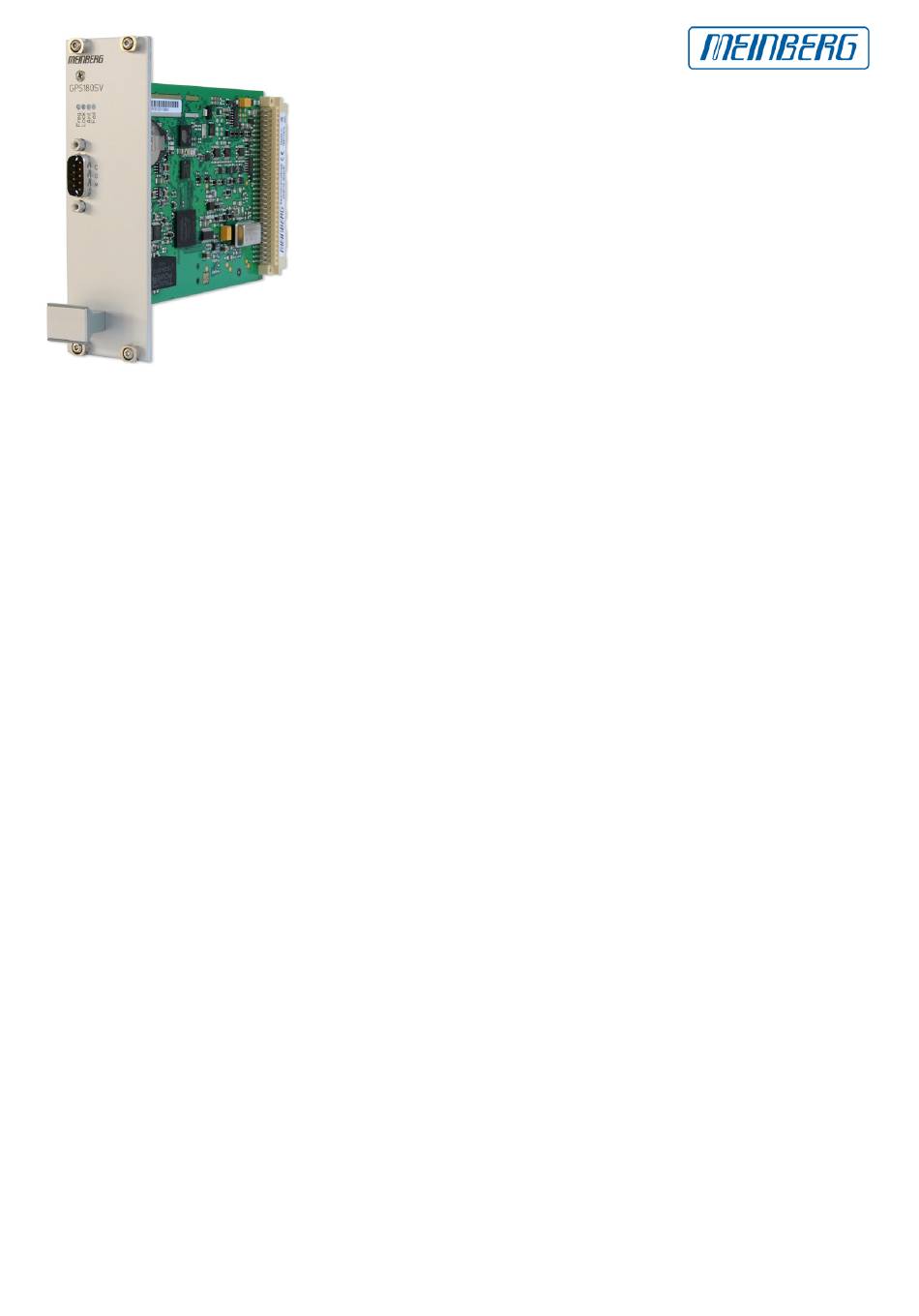

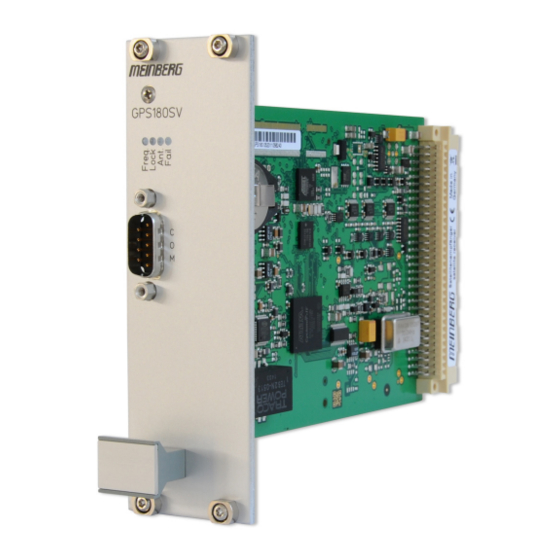

GPS180SV: GPS Satellite Receiver (Eurocard)
The variety of inputs/outputs allows the use for various synchronisation tasks and the measurement of
asynchronous time events
Key Features
- Pulses per second and per minute
- 2 time trigger inputs
- Optional DDS frequency synthesizer
- DCF77-simulation
- Meinberg GPS Antenna/Converter Unit connected with up to 300 m of standard coaxial cable RG58
- DC-insulated antenna circuit
- Standard frequency outputs
- Flash-EPROM with bootstrap loader
- Optional up to 4 serial ports up to 4 programmable switching outputs timecode generator (IRIG-B,
AFNOR)
- Including GPS antenna, 20m standard cable and manual on USB key
rev 2023.0613.0948
Page 1/4
Meinberg Radio Clocks
Lange Wand 9
31812 Bad Pyrmont, Germany
Phone: +49 (5281) 9309-0
Fax:
+49 (5281) 9309-30
https://www.meinbergglobal.com
info@meinberg.de
gps180sv
Advertisement
Table of Contents
Related Manuals for Meinberg GPS180SV
Summary of Contents for Meinberg GPS180SV
- Page 1 - 2 time trigger inputs - Alarm output - Optional DDS frequency synthesizer - DCF77-simulation - Meinberg GPS Antenna/Converter Unit connected with up to 300 m of standard coaxial cable RG58 - DC-insulated antenna circuit - Standard frequency outputs - Flash-EPROM with bootstrap loader...
- Page 2 Description The frequency locking of the master oscillator to the GPS-system enables the module GPS180SV to generate fixed and optionally programmable standard frequencies with high accuracy and stability. Various oscillator options allow the cost efficient implementation of different requirements concerning the accurracy of the outputs.
- Page 3 When main power supply fails, hardware clock runs free on quartz basis, almanac data is stored in RAM Life time of lithium battery min. 10 years Cable Type Coaxial cable RG58 indoor or outdoor usage (SMB-, N-Norm-connector) Firmware Flash-EPROM, bootstrap loader rev 2023.0613.0948 Page 3/4 gps180sv...
- Page 4 WEEE-compliant fashion, it can be returned to the manufacturer. Any transportation expenses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself.
