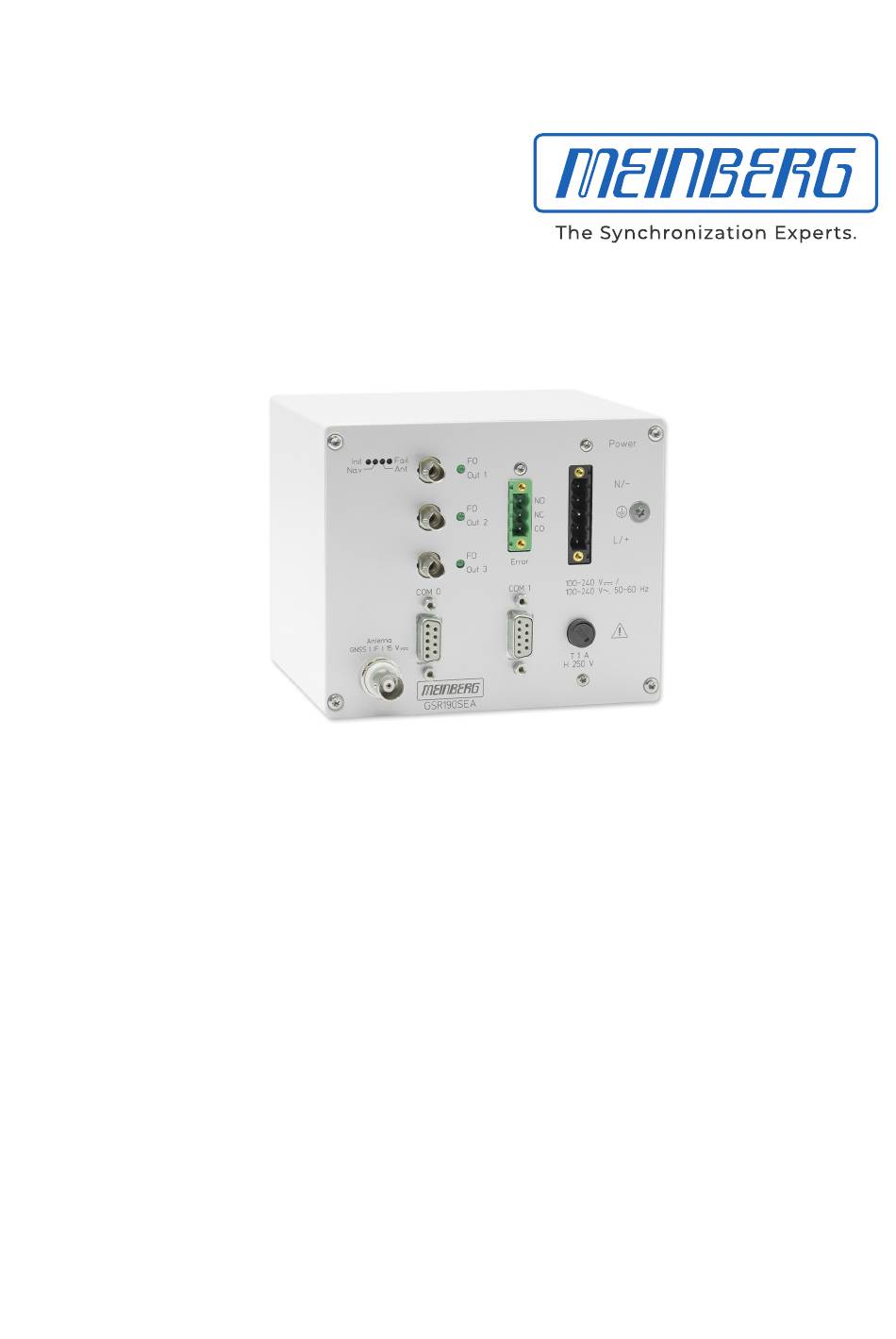

Page 1 MANUAL GSR190SEA/DHS Rail-Mounted GNS-UC Receiver Meinberg Funkuhren GmbH & Co. KG...
Page 3: Table Of Contents
Table of Contents 1 The GSR190SEA System GSR190SEA - Device Description ........Device Manufacturer .
Page 4 14.3.2 Meinberg GPS Time String ........
Page 5: The Gsr190Sea System
1 The GSR190SEA System 1 The GSR190SEA System 1.1 GSR190SEA - Device Description The GSR190SEA is a Meinberg device featuring an integrated satellite receiver and designed to be mounted on a 35 mm DIN rail. 1.2 Device Manufacturer Meinberg Funkuhren GmbH & Co. KG...
Page 6: Change Log
- Removed superﬂuous information about other models (Chapter 6.5) - Overhauled GPS antenna installation chapter (Chapter 7) - Replaced power supply speciﬁcations with reference (Chapter 8.2) ——————————————————————————————————————————————— 1.11 8/12/2024 - New link system for internal references and external links Date: August 12, 2024 GSR190SEA/DHS...
Page 7: Important Safety Information
Meinberg accepts no responsibility for damage caused by a failure to observe these requirements.
Page 8: Used Symbols
Dieses Produkt fällt unter die B2B Kategorie. Zur Entsorgung muss es an den Hersteller übergeben werden. This product is handled as a B2B-category product. To ensure that the product is disposed of in a WEEE-compliant fashion, it must be returned to the manufacturer. Date: August 12, 2024 GSR190SEA/DHS...
Page 9: Product Documentation
3 Important Safety Information 3.3 Product Documentation Detailed product documentation is provided via the Meinberg Customer Portal at https://meinberg.support. Please note that you will require your device’s serial number to access the documentation; this serial number is located on the rear of the device above the rail clip.
Page 10: Safety During Installation
For safety reasons, the device with the highest mass should be installed at the lowest position in the rack. Further devices should be installed from the bottom, working your way up. The device must be protected against mechanical & physical stresses such as vibration or shock. Date: August 12, 2024 GSR190SEA/DHS...
Page 11 = 90 - 250 V Faulty shielding or cabling and improperly connected plugs are a health & safety risk (risk of injury or death due to electrical shock) and may damage or even destroy your Meinberg device or other equipment.
Page 12 Date: August 12, 2024 GSR190SEA/DHS...
Page 13: Replacing The Fuse
Current Voltage or without cooling material with cooling material T = “Träge” (slow-blow) / SB = Slow-blow T = “Träge” (slow-blow) / SB = Slow-blow Dimensions: Dimensions: 5 x 20 mm 5 x 20 mm GSR190SEA/DHS Date: August 12, 2024...
Page 14: Connection Of Protective Earth Conductor/Grounding
A grounding cable is not included in the contents of delivery. Note: Please use a grounding cable with cross-section 1.5 mm , as well as a suitable grounding clamp/lug. Always ensure that the connection is properly crimped! Date: August 12, 2024 GSR190SEA/DHS...
Page 15: Safety During Operation
If your device is connected to an Uninterruptible Power Supply (UPS), it will remain operational even after pulling the UPS power cable from the mains socket. In this case, you will need to shut down your UPS in accordance with the user documentation of your UPS system. GSR190SEA/DHS Date: August 12, 2024...
Page 16: Safety During Maintenance
(approx. 60 N) presents a risk of injury to the hands. Information on which components are approved for installation can be obtained from Meinberg Technical Support. The device must not be opened. Repairs to the device may only be performed by the manufacturer or authorized personnel.
Page 17: Handling Of Batteries
The battery is used to power components such as the RAM and the reserve real-time backup clock for the reference clock. If the battery voltage drops below 3 V DC, Meinberg recommends having the battery replaced. If the battery voltage drops below the speciﬁed minimum, the following behavior may be...
Page 18: Installation Of The Antenna
Liquids can cause irreparable damage to the electronics of the device! The ingress of liquids into the device chassis may cause short circuits in the electronic circuitry. Only clean with a soft, dry cloth. Never use solvents or cleaners. Date: August 12, 2024 GSR190SEA/DHS...
Page 19: Prevention Of Esd Damage
ESD-proof bags that are crumpled or have holes cannot provide eﬀective protection against electrostatic discharges. ESD-proof bags must have a suﬃcient electrical resistance and must not be made of conductive metals if the device has a lithium battery ﬁtted on it. GSR190SEA/DHS Date: August 12, 2024...
Page 20: Return Of Electrical And Electronic Equipment
When disposing of your old equipment, please use the national return or collection systems available to you. Alternatively, you may contact Meinberg, who will provide further assistance. The return of electronic waste may not be accepted if the device is soiled or contaminated in such a way that it potentially presents a risk to human health or safety.
Page 21: Gsr190Sea System Description
The GSR190SEA is equipped with a high-accuracy oscillator that allows the GSR190SEA to fall back to ’holdover’ mode if the selected time source is disrupted for any reason. In holdover mode, this oscillator con- tinues to provide accurate clock signals until the upstream signal is restored. GSR190SEA/DHS Date: August 12, 2024...
Page 22: Front Connectors Of Gsr190Sea
4.1 Front Connectors of GSR190SEA Information: The numbering in the drawing above relates to the relevant subsection in this chapter. Date: August 12, 2024 GSR190SEA/DHS...
Page 23: Dc Power Supply
The fuse protects against overload or short circuits and thus prevents damage to the installed power supply. The fuse is accessible from the front panel and can be replaced. Technical Speciﬁcation ———————————————————— Rated Voltage: 250 V Shutter delay: Timelag Rated Current: 1.6 A ———————————————————— GSR190SEA/DHS Date: August 12, 2024...
Page 24: Error Relay
• When handling the connectors of the error relay cable, always disconnect both ends of the cable from their respective devices! • Hazardous voltages may be passing through the terminal of the error relay! Never handle the error relay terminal while the signal voltage is present! Date: August 12, 2024 GSR190SEA/DHS...
Page 25: Programmable Signals: Fiber-Optic Output
This ﬁber-optic interface contains a light-emitting diode (LED). • Fiber-optic interfaces may emit radiation capable of causing eye injuries. • Never look into an unconnected connector or ﬁber-optic cable. Ensure that unused ﬁber-optic connectors are always ﬁtted with a suitable protective cap. GSR190SEA/DHS Date: August 12, 2024...
Page 26: Status Leds
The clock is in "Holdover Mode"; it is controlled solely via the internal oscillator, (ﬂashing) but has been synchronized at least once to an external GNSS reference since it was last initialized. Fail The clock can identify no way to successfully synchronize to a GNSS reference. Date: August 12, 2024 GSR190SEA/DHS...
Page 27: Comx Time String: Rs-232
4 GSR190SEA System Description 4.1.6 COMx Time String: RS-232 Data Transfer: Serial Baud Rate/Framing: 19200 / 8N1 (Default) Time String: Meinberg Standard (Default) Pin Layout: Pin 2: TxD (Transmit) Pin 3: RxD (Receive) Pin 5: GND (Ground) Connection Type: D-Sub Female 9-Pin...
Page 28: Antenna Input: Gns-Uc Reference Clock
• Do not carry out any work on the antenna installation or the antenna cable if there is a risk of lightning strike. • Do not perform any work on the antenna installation if it is not possible to maintain the prescribed safety distance from exposed power lines or electrical substations. Date: August 12, 2024 GSR190SEA/DHS...
Page 29: How The Gsr190Sea Works
These signals can be individually conﬁgured using the Meinberg Device Manager software. The orientation of the pulse signals can be inverted on each channel and the pulse width can be set to a value within a range of 10 ms to 10 s, depending on the signal, in 10 ms increments.
Page 30: Asynchronous Serial Ports
By default, the output of these interfaces is left disabled when the device is switched on until the receiver has suc- cessfully synchronized. However, it is possible to conﬁgure the serial interfaces to have the outputs enabled im- mediately when the system is booted. This process is described in detail in Chapter 9.4, “Outputs Settings”. Date: August 12, 2024 GSR190SEA/DHS...
Page 31: Before You Start
Meinberg immediately. Only the recipient (the person or company receiving the system) may ﬁle claims or complaints against the forwarder for damage caused in transit. Meinberg recommends that you keep the original packaging materials in case the product needs to be shipped or transported again at a later date.
Page 32: Required Software
GSR190SEA. This software is a desktop application with a graphical interface that allows you to conﬁgure Meinberg devices that are connected to the PC directly via a serial connection or indirectly via an encrypted network connection. One of the key advantages to Meinberg Device Manager lies in its ability to conﬁgure and monitor multiple diﬀerent devices in a network concurrently.
Page 33: Preparation For Installation
6 Before You Start 6.4 Preparation for Installation Meinberg’s rail-mounted systems are constructed for installation on a standard DIN EN 60715 rail. The product package includes all of the parts needed for rail-mounted installation (screws, power supply adapters, etc.) If diﬀering standards apply due to the product being installed in a country other than Germany (e.g., in respect of power supply connectors), please declare in your order which adapters or cables you require...
Page 34: 5-Pin Mstb Pin Layout And Cable Assembly
The wires should then be secured, one at a time, by tightening the marked screws using a slotted screwdriver. DC Power Supply 5-Pin Connector MSTB 2,5/5-STF Illustration: DHS Type Power Supply Wiring Date: August 12, 2024 GSR190SEA/DHS...
Page 35 Cut the rest of the protruding cable tie oﬀ using wire cutters. Attach the upper part of the connector to the lower part until the latches on the sides click into place. Connector Assembly Top view 5-Pin Connector MSTB 2,5/5-STF Illustration: Completed DHS Type Connector GSR190SEA/DHS Date: August 12, 2024...
Page 36: Installing A Gps Antenna
7.1 Selecting the Antenna Location There are essentially two ways a compatible Meinberg GPS Antenna (such as a GPSANTv2) can be installed using the accessories included: 1. Mounted on a pole 2.
Page 37 55 south parallels (satellite orbits). Information: Problems may arise with the synchronization of your Meinberg time server if these conditions are not met, as four satellites must be located to calculate the exact position. GSR190SEA/DHS Date: August 12, 2024...
Page 38: Installation Of The Antenna
• Do not carry out any work on the antenna installation or the antenna cable if there is a risk of lightning strike. • Do not perform any work on the antenna installation if it is not possible to maintain the prescribed safety distance from exposed power lines or electrical substations. Date: August 12, 2024 GSR190SEA/DHS...
Page 39 7 Installing a GPS Antenna Mount the Meinberg GPS Antenna (as shown in Fig. 3) at a distance of at least 50 cm to other antennas using the mounting kit provided, either onto a vertical pole of no more than 60 mm diameter or directly onto a wall.
Page 40: Antenna Cable
Meinberg provides suitable cable types with its antennas and these are ordered together with the antenna to match the length you need from your antenna to your Meinberg reference clock. The route to be covered for your antenna installation should be determined and the appropriate cable type selected accordingly before conﬁrming your order.
Page 41 • Any kinking, crushing, or other damage to the external insulation must be avoided. • Any damage or contamination of the coaxial connectors must be avoided. The bend radius is the radius at which a cable can be bent without sustaining damage (including kinks). GSR190SEA/DHS Date: August 12, 2024...
Page 42 Compensating for Signal Propagation Time The propagation of the signal from the antenna to the receiver (reference clock) can incur a certain delay. This delay can be compensated for using the Meinberg Device Manager tool. To do this, open the panel "Settings"...
Page 43: Surge Protection And Grounding
Please refer to the standards regarding antenna installations (e.g., DIN EN 60728-11) for more information. However, in order to preserve the safety of the building and to protect your Meinberg system, Meinberg recommends the use of the MBG-S-PRO surge protector, which is addressed in more detail later in this chap- ter.
Page 44: Electrical Bonding
Tighten the nut (Pos. 4) with a max. torque of 6 Nm. Once the antenna has been correctly installed with the grounding cable, connect the grounding cable to the bonding bar (see Fig. 5 and 6). Date: August 12, 2024 GSR190SEA/DHS...
Page 45 7 Installing a GPS Antenna The following drawings illustrate how a Meinberg GPS Antenna can be installed in accordance with the above conditions on a pole (e.g., antenna pole) or building roof. Antenna Installation without Insulated Lightning Rod System α...
Page 46 Antenna Installation with Insulated Lightning Rod System α Fig. 6: Roof Installation Meinberg GPS Antenna Lightning Rod Lightning Rod Conductor Antenna Cable Bonding Conductor Bonding Bar Foundation Electrode Safety Zone Date: August 12, 2024 GSR190SEA/DHS...
Page 47: Installation Conditions
7 Installing a GPS Antenna Optional MBG S-PRO Surge Protector Information: The surge protector and suitable coaxial cable are not included as standard with a Meinberg GPS Antenna, but can be ordered as an optional accessory. Construction The MBG-S-PRO is a surge protector (Phoenix CN-UB-280DC-BB) for coaxial connections. It is patched directly into the antenna line and consists of a replaceable gas discharge tube that redirects the energy from the cable shielding to the ground potential when ignited.
Page 48: Installation And Connection
Meinberg system in order to prevent destructive potential diﬀerences. Connect the coaxial cable from the antenna to one of the surge protector connectors, then connect the other surge protector connector to the coaxial cable leading to the Meinberg reference clock. Caution!
Page 49: System Installation
The diagram below illustrates how a GSR190SEA is connected. SPS/PLC SPS/PLC Error Contact if clock not sync GSR190SEA/DAHS Power Supply Reference Signal Serial Communication Meinberg Device Manager for Conﬁguration and Status Monitoring Illustration: Connecting the Main Interfaces and Signals of a GSR190SEA GSR190SEA/DHS Date: August 12, 2024...
Page 50: Connecting The Power Supply
• All connectors must have a suitable plug body to provide protection against contact with live parts! • Always ensure that wiring is safe! • The device must be grounded by means of a connection with a correctly installed protective earth conductor (PE). Date: August 12, 2024 GSR190SEA/DHS...
Page 51: Data And Signal Cables
OCXO’s output frequency to be adjusted. Until that time, the accuracy of the OCXO’s frequency is limited to 10 , which reduces the accuracy of the pulses to 3 s. GSR190SEA/DHS Date: August 12, 2024...
Page 52: Configuration Of The Gsr190Sea
9 Conﬁguration of the GSR190SEA This chapter addresses the main steps of setting up the GSR190SEA using Meinberg Device Manager for the ﬁrst time. The Meinberg Device Manager User Manual provides a very detailed explanation of all the conﬁguration and monitoring options provided by the software.
Page 53: Installation & First Launch
Meinberg website. The software can be downloaded at the following link: https://www.meinbergglobal.com/english/sw/mbg-devman.htm Clicking on the button Search for Network and Serial Meinberg Devices will trigger a search for all Meinberg modules or devices available over a serial or network connection. These will then be listed in Meinberg Device Manager.
Page 54 Information: Please note that conﬁguration adjustments performed in Meinberg Device Manager always need to be saved using the "Apply Conﬁguration" button. The "Restore Conﬁguration" button resets all of the settings to their respective default values.
Page 55: Clock Settings
Selecting the Satellite Systems Depending on the receiver type, it is possible to select which of the various satellite systems your receiver module should synchronize with. To enable a satellite system, select the corresponding checkbox. GSR190SEA/DHS Date: August 12, 2024...
Page 56: Other Settings
To enable the connected reference clock to compensate for this cable path delay, the length of the antenna cable (Antenna –> Meinberg System) must be speciﬁed in meters. Information: The default value is 20 m. The maximum value speciﬁed in Chapter 7.3, "Antenna...
Page 57: Serial Settings
To conﬁgure the serial output, proceed as follows: Select the GSR190SEA. Select the button Conﬁgure Device(s). Select Serial Ports Settings from the drop-down menu. Make the desired adjustments. Save the conﬁguration by clicking on "Apply Conﬁguration". GSR190SEA/DHS Date: August 12, 2024...
Page 58: Outputs Settings
If the module features hard-wired frequency and/or pulse outputs, the signal output mode can be conﬁgured here. Enable Fixed Freq. The output mode for the ﬁxed frequency outputs can be conﬁgured here. Enable Synth. The output mode for the frequency synthesizer outputs can be conﬁgured here. Date: August 12, 2024 GSR190SEA/DHS...
Page 59: Programmable Outputs
9 Conﬁguration of the GSR190SEA 9.5 Programmable Outputs The GSR190SEA’s pulse generator has three discrete channels and is able to generate a wide variety of pulses, which can be conﬁgured using Meinberg Device Manager. Please refer to Chapter 14, “Technical Appendix: GSR190SEA”...
Page 60: Gsr190Sea Status Monitoring
10 GSR190SEA Status Monitoring This chapter addresses the main status monitoring options provided via Meinberg Device Manager for your GSR190SEA. 10.1 Status Overview This window provides you with a general overview of the current status of your GSR190SEA. Select the GSR190SEA.
Page 61: Satellites Status
Select the option Satellites Status from the drop-down menu. Display Modes Please refer to the Meinberg Device Manager manual for a detailed explanation of the various display modes. Satellite List Detailed information such as the satellite system, index number (ID) and current status are shown for each of the listed satellites.
Page 62: Status Filter
Displays satellites that are not available. Not in View Displays satellites that are currently not in view. In View Displays satellites that are currently in view. Locked Satellites used for synchronization are displayed with the status "Locked". Date: August 12, 2024 GSR190SEA/DHS...
Page 63: Firmware Update
11 Firmware Update 11 Firmware Update The chapter addresses updating the ﬁrmware of your Meinberg product. The menu bar features the Firmware Update button, which allows you to install a ﬁrmware update via your device’s serial port. The ﬁle required for the ﬁrmware update will be pro- vided upon request by our Technical Support.
Page 64: Performing The Firmware Update
The ﬁeld "Files" provides detailed information on the programmable components present in your device, as well as information on the selected ﬁles. Upload the selected ﬁles to the module by clicking on the button "Flash File". Date: August 12, 2024 GSR190SEA/DHS...
Page 65: Troubleshooting And System Logs
ﬁle for the system in question. This ﬁle can be created using Meinberg Device Man- ager. To do this, select the "Conﬁgure Devices(s) -> System Settings" menu, then press the Create Snapshot button to generate a text ﬁle with the current conﬁguration.
Page 66: Information On Satellite Reception
Your system is ﬁtted with the GNS-UC, a 72-channel satellite receiver clock that serves as a high-accuracy time and frequency reference for your Meinberg system and is designed to receive signals from the United States GPS (Global Positioning System) and European Galileo system using a Meinberg antenna/converter unit, enabling a choice of time references from the combined GPS and Galileo systems.
Page 67: Time Zones And Daylight Saving Time
GPS receivers to be synchronized internally with the international UTC timescale. The receiver’s microprocessor can identify any time zone based on UTC time and automatically apply Day- light Saving Time adjustments over several years if so conﬁgured by the user. GSR190SEA/DHS Date: August 12, 2024...
Page 68: Technical Appendix: Gsr190Sea
–20 to 70 C (-4 to 158 F) ——————————————————————————- Relative Humidity In Operation: Max. 85 % (non-condensing) at 40 C ——————————————————————————- Operating Altitude In Operation: Max. 4000 m / 13123 ft (above sea level) ——————————————————————————- Acoustics: 0 dB (A) IP Rating: IP30 Date: August 12, 2024 GSR190SEA/DHS...
Page 69: Chassis Dimensions
The chassis does not feature any facility to connect it directly to Earth. The device is grounded via the protective earth (PE) conductor of the AC/DC power connector, which dissipates any fault currents through the cable. GSR190SEA/DHS Date: August 12, 2024...
Page 70: Programmable Pulse Signal Types
14.2 Programmable Pulse Signal Types Meinberg systems with programmable pulse outputs provide the following signal options; the actual range of available signal options will vary from system to system: Idle Selecting "Idle" disables that speciﬁc output. Timer In "Timer" mode, the output simulates a timer with a ﬁxed daily schedule. It is possible to conﬁgure three switch-on and three switch-oﬀ...
Page 71 This mode is used to output a custom frequency, which is deﬁned using the "Clock Synthesizer" section of the Web Interface. PTTI 1PPS This mode is used to pass a PPS signal of 20 s length through the output. GSR190SEA/DHS Date: August 12, 2024...
Page 72: Time Strings
The supported time strings are dependent on the software version in use. 14.3.1 Meinberg Standard Time String The Meinberg Standard Time String is a sequence of 32 ASCII characters starting with the <STX> (Start-of- Text) character and ending with the <ETX> (End-of-Text) character. The format is as follows: <STX>D:dd.mm.yy;T:w;U:hh.mm.ss;uvxy<ETX>...
Page 73: Meinberg Gps Time String
<ETX> (End-of-Text) character. Unlike the Meinberg Standard Time String, the Meinberg GPS Time String does not carry any local time zone or UTC data; it simply carries the direct GPS time without any conversion into UTC. The format is as follows: <STX>D:dd.mm.yy;T:w;U:hh.mm.ss;uvGy;lll<ETX>...
Page 74: Sat Time String
"!" Announcement of start or end of Daylight Saving Time " " (Space, ASCII code 20h) nothing announced Carriage Return, ASCII code 0Dh <CR> Line Feed, ASCII code 0Ah <LF> End-of-Text, ASCII code 03h <ETX> Date: August 12, 2024 GSR190SEA/DHS...
Page 75: Uni Erlangen String (Ntp)
Leap second is currently to be inserted (only active in 60th second) (Space, 20h) No leap second to be inserted Geographical latitude of receiver position in degrees bbb.bbbb Leading characters padded by Space characters (ASCII Code 20h) GSR190SEA/DHS Date: August 12, 2024...
Page 76 Longitudinal hemisphere, with the following characters possible: East of Greenwich Meridian West of Greenwich Meridian Altitude above WGS84 ellipsoid in meters hhhh Leading characters padded by Space characters (ASCII Code 20h) End-of-Text (ASCII Code 03h) <ETX> Date: August 12, 2024 GSR190SEA/DHS...
Page 77: Nmea 0183 String (Rmc)
West of Greenwich Meridian Speed over the ground in knots and track angle in degrees. 0.0,0.0 With a Meinberg GPS clock, these values are always 0.0, With GNS clocks, the values are calculated by the receiver for mobile applications The date:...
Page 78: Nmea 0183 String (Gga)
Geoid Separation (WGS84 Altitude - MSL Altitude) ggg.g Meters (unit as ﬁxed value) Checksum (XOR of all characters except "$" and " * ") Carriage Return, ASCII code 0Dh <CR> Line Feed, ASCII code 0Ah <LF> Date: August 12, 2024 GSR190SEA/DHS...
Page 79: Nmea 0183 String (Zda)
The date: dd,mm,yy Day of Month (01–31) Month (01–12) Year (0000–9999) yyyy Checksum (XOR of all characters except "$" and " * ") Carriage Return (ASCII code 0Dh) <CR> Line Feed (ASCII code 0Ah) <LF> GSR190SEA/DHS Date: August 12, 2024...
Page 80: Abb Spa Time String
Checksum. This is calculated as the XOR sum of the preceding characters. The resultant 8-bit value is reported as a hex value in the form of two ASCII characters (0-9 or A-F) Carriage Return (ASCII code 0Dh) <CR> Date: August 12, 2024 GSR190SEA/DHS...
Page 81: Computime Time String
Day of the week (1–7, 1 = Monday) The current time: hh:mm:ss Hours (00–23) Minutes (00–59) Seconds (00–59, or 60 during leap second) Carriage Return (ASCII code 0Dh) <CR> Line Feed (ASCII code 0Ah) <LF> GSR190SEA/DHS Date: August 12, 2024...
Page 82: Racal Standard Time String
Control character (ASCII code 55h) Current date: yymmdd Year of Century (00–99) Month (01–12) Day of Month (01–31) Current time: hh:mm:ss Hours (00–23) Minutes (00–59) Seconds (00–59, or 60 during leap second) Carriage Return (ASCII code 0Dh) <CR> Date: August 12, 2024 GSR190SEA/DHS...
Page 83: Ion Time String
(00–59, or 60 while leap second) Quality Indicator Space (ASCII code 20h) Time Sync (GPS Lock) "?" (ASCII code 3Fh) No Time Sync (GPS Fail) Carriage Return (ASCII code 0Dh) <CR> Line Feed (ASCII code 0Ah) <LF> GSR190SEA/DHS Date: August 12, 2024...
Page 84: Gsr190Sea Block Diagram
14.4 GSR190SEA Block Diagram Date: August 12, 2024 GSR190SEA/DHS...
Page 85: Timecode Outputs
Detailed information on the individual time code signals is provided at the following link: https://www.meinbergglobal.com/english/info/irig.htm Time code generation is conﬁgured using Meinberg Device Manager (see Chapter 9.4, “Outputs Settings”. The time code formats to be conﬁgured are deﬁned in more detail in the Appendix “Timecode...
Page 86: Timecode Generation
GPS synchronization state, the "Pulses" enable ﬂag can be set to "Always" in the Meinberg Device Manager software. In this case, the generated timecode cannot be considered to be locked to the oﬃcial UTC second until the GPS is synchronized.
Page 87: Irig Standard Format
14 Technical Appendix: GSR190SEA 14.5.4 IRIG Standard Format GSR190SEA/DHS Date: August 12, 2024...
Page 88: Timecode Format According To Afnor Standard
14.5.5 Timecode Format According to AFNOR Standard Date: August 12, 2024 GSR190SEA/DHS...
Page 89: Structure Of Cf Segment In Ieee 1344 Code
1.) Current ﬁrmware only supports insertion of leap seconds! 2.) TFOM is set to 0 if clock has been able to synchronize since power up. The ﬁrmware does not support other codes. For more information, please refer to the time code speciﬁcations. GSR190SEA/DHS Date: August 12, 2024...
Page 90: Technical Appendix: Gps Antenna + Accessories
15 Technical Appendix: GPS Antenna + Accessories 15.1 Technical Speciﬁcations: GPSANTv2 Antenna Physical Dimensions: Date: August 12, 2024 GSR190SEA/DHS...
Page 91: Specifications
Connector Type: Type-N, Female Housing Material: ABS Plastic Case for Outdoor Installation IP Rating: IP65 Temperature Range: –60 ?C to +80 ?C (–76 ?F to 176 ?F) Weight: 1.4 kg (3.53 lbs), including mounting kit GSR190SEA/DHS Date: August 12, 2024...
Page 92: Technical Specifications: Mbg-S-Pro Surge Protector
Type-N, Female/Type-N, Female The original product page of the supplier (see link) of the CN-UB-280DC-BB surge protector provides detailed speciﬁcations, as well as a variety of product-speciﬁc documents under the link below: Data Sheet (Download): https://www.meinbergglobal.com/download/docs/shortinfo/english/cn-ub-280dc-bb_pc.pdf Date: August 12, 2024 GSR190SEA/DHS...
Page 93: Returning Products
Support Service. Do not attempt to repair the device yourself. To submit a repair order for a Meinberg device, ﬁrst call Meinberg’s Technical Support service to review the shipping options and obtain an RMA (Return Material Authorization) number for shipping.
Page 94: Rohs And Weee
WEEE-compliant fashion, it may be returned to the manufacturer. Any transportation ex- penses for returning this product (at end-of-life) must be covered by the end user, while Meinberg will bear the costs for the waste disposal itself. Date: August 12, 2024...
