- Page 1 MANUAL GNS165DHS / GNS165DAHS DIN Rail GNSS Receiver 19th January 2021 Meinberg Funkuhren GmbH & Co. KG...
-
Page 3: Table Of Contents
......... . Meinberg Device Manager . - Page 4 ......8.2.11 Format of the Meinberg GPS Time String ......
-
Page 5: Imprint
1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont / Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Internet: https://www.meinbergglobal.com... -
Page 6: Safety Hints
Meinberg Funkuhren shall not be responsible for any damage arising due to non-observance of these regulations. -
Page 7: Used Symbols
Dieses Produkt fällt unter die B2B Kategorie. Zur Entsorgung muss es an den Hersteller übergeben werden. This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. GNS165DHS / GNS165DAHS Date: 19th January 2021... - Page 8 This manual is intended exclusively for electricians or persons trained by an electrician who are familiar with the applicable national standards and safety rules. Installation, commissioning and operation of this device may only be carried out by qualified personnel. Date: 19th January 2021 GNS165DHS / GNS165DAHS...
-
Page 9: Security During Installation
For safety reasons, the device with the highest mass should be installed in the lowest position of the rack. Other devices must be placed from the bottom to the top. The device must be protected against mechanical stress such as vibration or shock. GNS165DHS / GNS165DAHS Date: 19th January 2021... - Page 10 fluids or foreign objects enter), the current flow can be interrupted. Questions about the house installation, need to be clarified with your house administration. The power supply should be connected with a short, low-inductance line. Date: 19th January 2021 GNS165DHS / GNS165DAHS...
- Page 11 GNS165DHS / GNS165DAHS Date: 19th January 2021...
-
Page 12: Fuse Replacement
Voltage with or without extinguishing agent with extinguishing agent T = Time-lag / SB = SlowBlow T = Time-lag / SB = SlowBlow Dimensions: Dimensions: 5 x 20 mm 5 x 20 mm Date: 19th January 2021 GNS165DHS / GNS165DAHS... -
Page 13: Protective Conductor- / Ground-Terminal
Devices that are connected via one or more uninterruptible power supplies (UPS) remain operational even when the UPS power cord is disconnected. Therefore, you must put the UPS out of operation according to the documentation of the corresponding user documentation. GNS165DHS / GNS165DAHS Date: 19th January 2021... -
Page 14: Safety During Maintenance
Risk of explosion if the battery is not replaced correctly. Replace only with the same or equivalent type recommended by the manufacturer. When disposing used batteries, observe the local regulations for the disposal of hazardous waste. Date: 19th January 2021 GNS165DHS / GNS165DAHS... -
Page 15: Antenna Mounting
Liquid can destroy the electronics of the device! Liquid penetrates into the housing of the device and can cause a short circuit of the electronics. Only clean with a soft, dry cloth. Never use solvents or cleaners. GNS165DHS / GNS165DAHS Date: 19th January 2021... -
Page 16: Prevention Of Esd Damage
ESD protective covers, which are extremely wrinkled or even have holes, no longer protect against electrostatic discharge. ESD protective covers must not be low-resistance and metallically conductive if a lithium battery is installed on the assembly. Date: 19th January 2021 GNS165DHS / GNS165DAHS... -
Page 17: Return Of Electrical And Electronic Equipment
Return and Collection Systems For returning your old equipment, please use the country-specific return and collection systems available to you or contact Meinberg. The withdrawal may be refused in the case of waste equipment which presents a risk to human health or safety due to contamination during use. -
Page 18: Content Of The Usb Stick
3 Content of the USB Stick Besides this manual, the provided USB stick includes a setup program for the monitor software "Meinberg Device Manager". This utility can be used to configure Meinberg receivers via their serial ports and to display status information of the module. -
Page 19: General Information About Gns165
4 General information about GNS165 4 General information about GNS165 The Meinberg satellite receiver clock of the GNS165 series is available with several options. This manual describes the following models: PhotoMos Optocoupler 20-60 V DC 100-240 V AC 100-240 V DC... - Page 20 Each satellite transmits its own set of ephemeris parameters and almanac parameters of all existing satellites. Date: 19th January 2021 GNS165DHS / GNS165DAHS...
-
Page 21: Gns165 Features
As standard the switchover times are set to the values of the European Union (Central Europe). The Manual describes how parameter setting for other locations is done. It is possible to deactivate the auto- matic switching to/from daylight saving. GNS165DHS / GNS165DAHS Date: 19th January 2021... -
Page 22: Pulse Outputs
The pulse generator of the satellite controlled clock GNS165 containes three independant channels and is able to generate a multitude of different pulses, which are configured with the software "Meinberg Device Manager". The active state of each channel is invertible, the pulse duration settable between 10 msec and 10sec in steps of 10 msec. -
Page 23: Time Code Outputs
IEEE1344 extensions for date, timezone, daylight saving and leap second in control functions (CF) segment. (also see table ’Assignment of CF segment in IEEE1344 mode’) C37.118 Like IEEE1344 - with turned sign bit for UTC-Offset GNS165DHS / GNS165DAHS Date: 19th January 2021... -
Page 24: Time Code Generation
Due to that the generation of the IRIG-code only starts after synchronization. If the code must be available immediately after power-up, the software "Meinberg Device Manager" can be used to enable the time code output without synchronization of the GNS-receiver by setting the enable flag ’pulses’... -
Page 25: Irig Standard Format
5 GNS165 Features 5.4.4 IRIG Standard Format GNS165DHS / GNS165DAHS Date: 19th January 2021... -
Page 26: Afnor Standard Format
5.4.5 AFNOR Standard Format Date: 19th January 2021 GNS165DHS / GNS165DAHS... -
Page 27: Assignment Of Cf Segment In Ieee1344 Code
IRIG-B time 1.) current firmware does not support leap deletion of leap seconds 2.) TFOM is cleared, when clock is synchronized first after power up. see chapter Selection of generated timecode GNS165DHS / GNS165DAHS Date: 19th January 2021... -
Page 28: Dcf77 Emulation
The time stamps can be provided via pulses outputs. Furthermore, the DCF77 signal is available via a BNC connector as an amplitude-modulated 77.5 kHz carrier. This output can be used for radio clocks as a replacement for a DCF77 antenna. Date: 19th January 2021 GNS165DHS / GNS165DAHS... -
Page 29: Installation
To avoid potential differences between the signal ground of GNS165 and a post-connected unit installed on different DIN rails, the signal ground of the clock is insulated from the case. The case must be grounded by using the rear contact. GNS165DHS / GNS165DAHS Date: 19th January 2021... -
Page 30: 40Db Multi Gnss L1 Timing Antenna With Integrated Lightning Protection
The antenna cable length can be up to 70 meters if a H155 low-loss coaxial cable is used. Mounting and Installation of the GNSS/L1 Antenna Date: 19th January 2021 GNS165DHS / GNS165DAHS... - Page 31 - Do not carry out any work on the antenna system or the antenna cable if there is a risk of a lightning strike. - Do not carry out any work on the antenna system if the safety distance to free lines and sequential circuits is exceeded. GNS165DHS / GNS165DAHS Date: 19th January 2021...
-
Page 32: Gnss Antenna For Mobile Applications
- Do not carry out any work on the antenna system or the antenna cable if there is a risk of a lightning strike. - Do not carry out any work on the antenna system if the safety distance to free lines and sequential circuits is exceeded. Date: 19th January 2021 GNS165DHS / GNS165DAHS... -
Page 33: Powering Up The System
OCXO´s output frequency has been adjusted. Up to that time accuracy of frequency drops to 10 reducing the accuracy of pulses to +-3 s. GNS165DHS / GNS165DAHS Date: 19th January 2021... -
Page 34: Meinberg Device Manager
6.5 Meinberg Device Manager The program serves the configuration of Meinberg Radio Clocks. The software can be run on the operating systems Windows 7 or higher. Documentation: https://www.meinbergglobal.com/download/docs/manuals/english/meinberg-device-manager.pdf Download: https://www.meinbergglobal.com/english/sw/mbg-devman.htm A connection between the system and the program can be produced by serial port. The configurations are described in the "Meinberg Device Manager"... - Page 35 "Apply Configuration" button. Use the "Restore Configuration" button to reset all settings back to their default values. For more information, please refer to the Meinberg Device Manager manual. GNS165DHS / GNS165DAHS...
-
Page 36: The Front Panel Layout

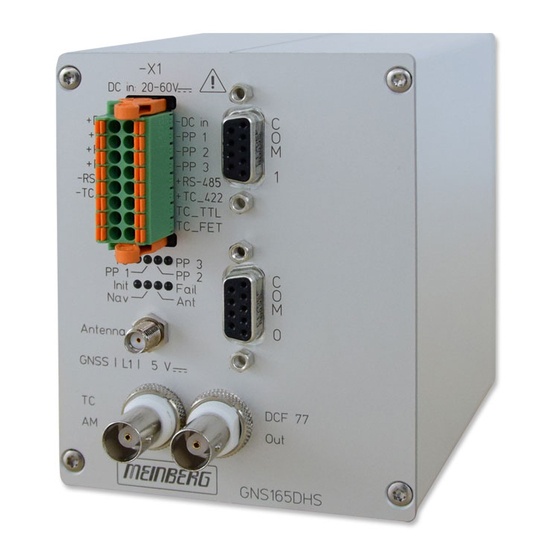

Init: blue: while the receiver passes through the initialization phase green: the oscillator has warmed up Fail: red: time has not synchronized Ant: red: antenna faulty or not connected Nav: green: positioning successfully Date: 19th January 2021 GNS165DHS / GNS165DAHS... -
Page 37: Assignment Of The Terminal Block
7.3 Assignment of the terminal block The pulse outputs are accessible through the terminal block in the front panel. In addition, the power sup- ply of variants GNS165DHS and GNS165/AQ/DHS (DAHS) - X1 is connected using two poles of this terminal block. -
Page 38: Assignment Of The Dsub Connectors
TxD describes the sending, RxD the receiving line of the GNS165. Connector: D-SUB female 9pin Cable: shielded data line Assignment: Pin 2: TxD (transmit) COM x Pin 3: RxD (receive) Pin 5: GND (ground) Date: 19th January 2021 GNS165DHS / GNS165DAHS... -
Page 39: Gnss Antenna
- Do not carry out any work on the antenna system or the antenna cable if there is a risk of a lightning strike. - Do not carry out any work on the antenna system if the safety distance to free lines and sequential circuits is exceeded. GNS165DHS / GNS165DAHS Date: 19th January 2021... -
Page 40: Dcf77 Simulated Output
7.7 Time Code AM Output Carrier frequency: 1 kHz (IRIG-B) Signal outputs: Unbalanced sine wave-signal: (MARK) (SPACE) into 50 Ohm Connector: BNC, female TC AM Out Cable: shielded coax line Date: 19th January 2021 GNS165DHS / GNS165DAHS... -
Page 41: Power Supply Connector
- All connectors must be protected against touching live parts with a suitable plug housing! - Note: Always ensure safe wiring! - Important: The device must be connected to a proper grounding (PE). GNS165DHS / GNS165DAHS Date: 19th January 2021... -
Page 42: Technical Specifications Gns165 Receiver
Framing: 7N2, 7E1, 7E2, 8N1, 8N2, 8E1, 801 COM2 (RS-485) Baud Rate: 300 up to 19200 Framing: 7N2, 7E1, 7E2, 8N1, 8N2, 8E1, 801 time string selectable for COM0, COM1 and COM2 possible stringtypes in chapter: Time Stings Date: 19th January 2021 GNS165DHS / GNS165DAHS... - Page 43 SMA connector for Multi-GNSS connection, AM modulated DCF77 output and modulated time code output 16-pole terminal block for connection of: - pulse outputs - power supply (GNS165DHS and GNS165/AQ/DHS only) DAHS, AQ/DAHS: 5pol. Screwterminal Ambient Temperature: 0 ... 50 C Humidity: 85% max.
-
Page 44: Connection Data Dfmc-Connector
; length: 8 mm ... 10 mm Cross-section: 0.34 mm ; length: 8 mm ... 10 mm Cross-section: 0.5 mm ; length: 8 mm ... 10 mm Cross-section: 0,75 mrn ; length: 8 mm ... 10 mm Date: 19th January 2021 GNS165DHS / GNS165DAHS... -
Page 45: Time Strings
8.2 Time Strings 8.2.1 Format of the Meinberg Standard Time String The Meinberg Standard Time String is a sequence of 32 ASCII characters starting with the STX (start-of-text) character and ending with the ETX (end-of-text) character. The format is: <STX>D:dd.mm.yy;T:w;U:hh.mm.ss;uvxy<ETX>... -
Page 46: Format Of The Sat Time String
‘!’ announcement of start or end of daylight saving time ‘ ‘ (space, 20h) nothing announced <CR> Carriage Return, ASCII Code 0Dh <LF> Line Feed, ASCII Code 0Ah <ETX> End-Of-Text, ASCII Code 03h Date: 19th January 2021 GNS165DHS / GNS165DAHS... -
Page 47: Format Of The Nmea 0183 String (Rmc)
Greenwich 0.0,0.0 Speed over the ground in knots and track angle in degrees, with a Meinberg GPS clock these values are always 0.0, in case of a GNS clock the values will be calculated by the receiver in mobile applications... -
Page 48: Format Of The Nmea 0183 String (Gga)
Geoid Separation (altitude of WGS84 - MSL) Units, meters (fixed value) checksum (EXOR over all characters except ‘$’ and ‘*’) <CR> Carriage Return, ASCII Code 0Dh <LF> Line Feed, ASCII Code 0Ah Date: 19th January 2021 GNS165DHS / GNS165DAHS... -
Page 49: Format Of The Nmea 0183 String (Zda)
(01..31) month (01..12) yyyy year (0000..9999) checksum (EXOR over all characters except ‘$’ and ‘*’) <CR> Carriage Return, ASCII Code 0Dh <LF> Line Feed, ASCII Code 0Ah GNS165DHS / GNS165DAHS Date: 19th January 2021... -
Page 50: Format Of The Uni Erlangen String (Ntp)
(space, 20h) no leap second is inserted bbb.bbbb latitude of receiver position in degrees leading signs are replaced by a space character (20h) latitude, the following characters are possible: ‘N’ north of equator Date: 19th January 2021 GNS165DHS / GNS165DAHS... - Page 51 ‘E’ east of Greenwich ‘W’ west of Greenwich hhhh altitude above WGS84 ellipsoid in meters leading signs are replaced by a space character (20h) <ETX> End-Of-Text, ASCII Code 03h GNS165DHS / GNS165DAHS Date: 19th January 2021...
-
Page 52: Format Of The Computime Time String
(01..07, 01 = monday) hh:mm:ss the current time: hours (00..23) minutes (00..59) seconds (00..59, or 60 while leap second) <CR> Carriage Return, ASCII Code 0Dh <LF> Line Feed, ASCII Code 0Ah Date: 19th January 2021 GNS165DHS / GNS165DAHS... -
Page 53: Format Of The Sysplex-1 Time String
(00..23) minutes (00..59) seconds (00..59, or 60 while leap second) Quality indicator (space) Time Sync (GPS lock) (?) no Time Sync (GPS fail) <CR> Carriage-return (ASCII code 0Dh) <LF> Line-Feed (ASCII code 0Ah) GNS165DHS / GNS165DAHS Date: 19th January 2021... -
Page 54: Format Of The Spa Time String
(00..59, or 60 while leap second) fff milliseconds (000..999) Checksum. EXCLUSIVE-OR result of the previous characters, displayed as a HEX byte (2 ASCII characters 0..9 or A..F) <CR> Carriage Return ASCII Code 0Dh Date: 19th January 2021 GNS165DHS / GNS165DAHS... -
Page 55: Format Of The Racal Standard Time String
(00..99) month (01..12) day of month (01..31) hh:mm:ss the current time: hours (00..23) minutes (00..59) seconds (00..59, or 60 while leap second) <CR> Carriage Return, ASCII code 0Dh GNS165DHS / GNS165DAHS Date: 19th January 2021... -
Page 56: Format Of The Meinberg Gps Time String
8.2.11 Format of the Meinberg GPS Time String The Meinberg Standard Time String is a sequence of 36 ASCII characters starting with the STX (start-of-text) character and ending with the ETX (end-of-text) character. Contrary to the Meinberg Standard Telegram the Meinberg GPS Timestring carries no local timezone or UTC but the direct GPS time without conversion into UTC. -
Page 57: Format Of The Ion Time String
(00..23) minutes (00..59) seconds (00..59, or 60 while leap second) Quality indicator (space) Time Sync (GPS lock) (?) no Time Sync (GPS fail) <CR> Carriage-return (ASCII code 0Dh) <LF> Line-Feed (ASCII code 0Ah) GNS165DHS / GNS165DAHS Date: 19th January 2021... -
Page 58: Format Of The Ion Blanked Time String
(00..23) minutes (00..59) seconds (00..59, or 60 while leap second) Quality indicator (space) Time Sync (GPS lock) (?) no Time Sync (GPS fail) <CR> Carriage-return (ASCII code 0Dh) <LF> Line-Feed (ASCII code 0Ah) Date: 19th January 2021 GNS165DHS / GNS165DAHS... -
Page 59: Format Of The Irig J Time String
(1 to 366) HH, MM, SS time of the start bit given in hour (HH), minute (MM), second (SS) ASCII code „Carriage Return“ (0x0Dh) ASCII code „Line Feed“ (0x0Ah) GNS165DHS / GNS165DAHS Date: 19th January 2021... -
Page 60: Oscillator Specifications
8.3 Oscillator specifications Date: 19th January 2021 GNS165DHS / GNS165DAHS... -
Page 61: Rohs And Weee
Any transportation expenses for return- ing this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. GNS165DHS / GNS165DAHS... -
Page 62: Declaration Of Conformity
10 Declaration of Conformity Declaration of Conformity Doc ID: GNS165DHS / GNS165DAHS-2021-01-19 Hersteller Meinberg Funkuhren GmbH & Co. KG Manufacturer Lange Wand 9, D-31812 Bad Pyrmont erklärt in alleiniger Verantwortung, dass das Produkt, declares under its sole responsibility, that the product...
