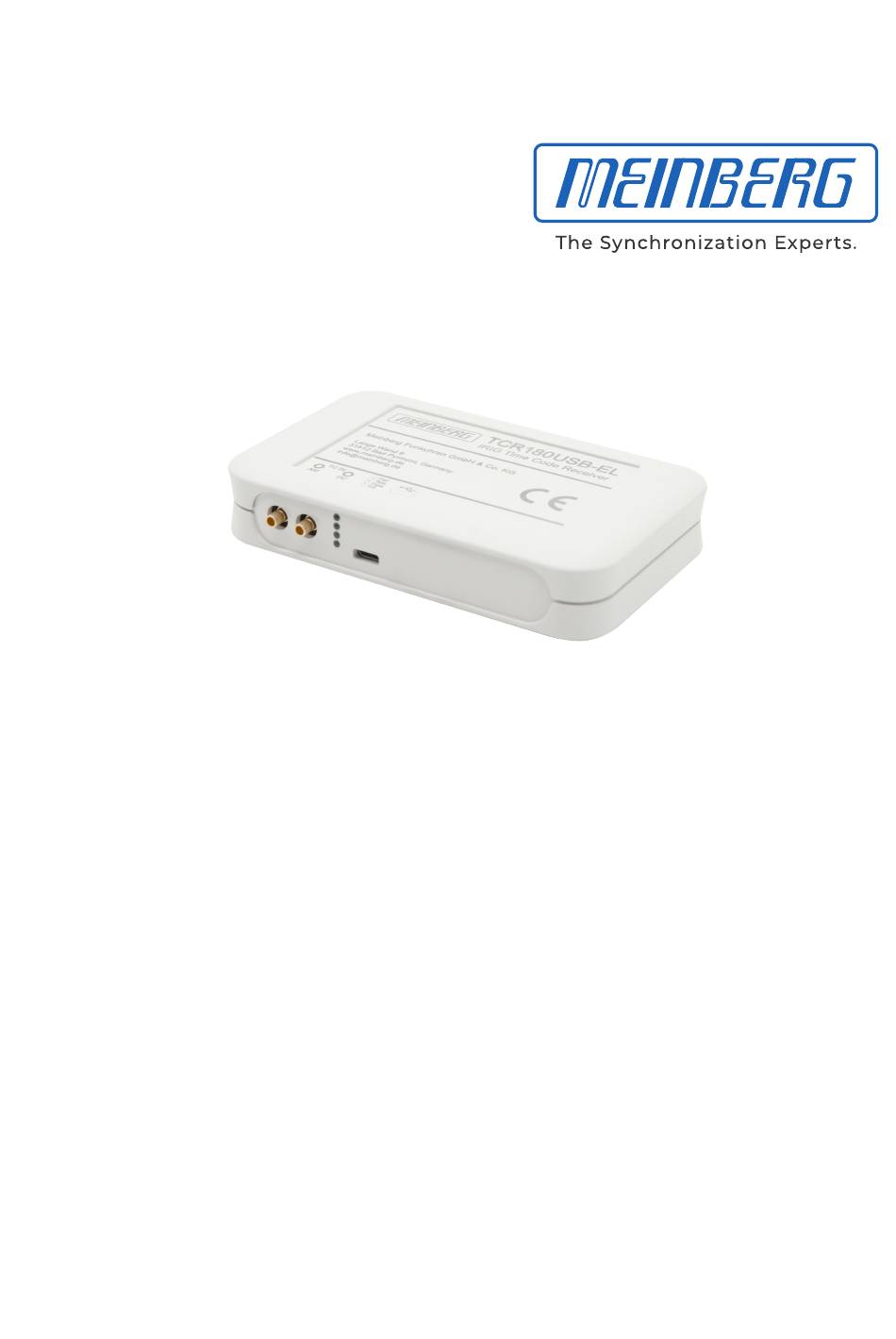

- Page 1 MANUAL TCR180USB-EL Setup Guide Time Code Receiver 15th October 2020 Meinberg Funkuhren GmbH & Co. KG...
-
Page 3: Table Of Contents
......... . . 9 Put the TCR180USB-EL into operation Configuration of TCR180USB-EL... -
Page 4: Imprint
1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont / Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Internet: https://www.meinbergglobal.com... -
Page 5: Important Safety Information
Meinberg Funkuhren shall not be responsible for any damage arising due to non-observance of these regulations. -
Page 6: Used Symbols
Dieses Produkt fällt unter die B2B Kategorie. Zur Entsorgung muss es an den Hersteller übergeben werden. This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. TCR180USB-EL Setup Guide Date: 15th October 2020... - Page 7 This manual is intended exclusively for electricians or persons trained by an electrician who are familiar with the applicable national standards and safety rules. Installation, commissioning and operation of this device may only be carried out by qualified personnel. Date: 15th October 2020 TCR180USB-EL Setup Guide...
-
Page 8: Cleaning And Care
Liquid can destroy the electronics of the device! Liquid penetrates into the housing of the device and can cause a short circuit of the electronics. Only clean with a soft, dry cloth. Never use solvents or cleaners. TCR180USB-EL Setup Guide Date: 15th October 2020... -
Page 9: Return Of Electrical And Electronic Equipment
Return and Collection Systems For returning your old equipment, please use the country-specific return and collection systems available to you or contact Meinberg. The withdrawal may be refused in the case of waste equipment which presents a risk to human health or safety due to contamination during use. -
Page 10: Introduction
3 Introduction 3 Introduction This Setup Guide is a systematically structured guide to support you during the initial setup of your Meinberg product. The individual chapters describe general functions, installation and essential technical data. The Setup Guide also describes the most important parameters which have to be configured in the respective management program for a quick startup of your product. -
Page 11: General Information About Time Code
Except these "IRIG Time Codes" other formats, like NASA36, XR3 or 2137, are still in use. The board TCR180USB-EL however only decodes IRIG-A, IRIG-B, AFNOR NFS 87-500 or IEEE1344 formats. The AFNOR code is a variant of the IRIG-B format. Within this code the complete date is transmitted in- stead of the "Control Functions"... -
Page 12: Irig Standard Format
4 General information about time code 4.2 IRIG Standard Format TCR180USB-EL Setup Guide Date: 15th October 2020... -
Page 13: Afnor Standard Format
4.3 AFNOR Standard Format Date: 15th October 2020 TCR180USB-EL Setup Guide... -
Page 14: Technical Function Tcr180Usb-El

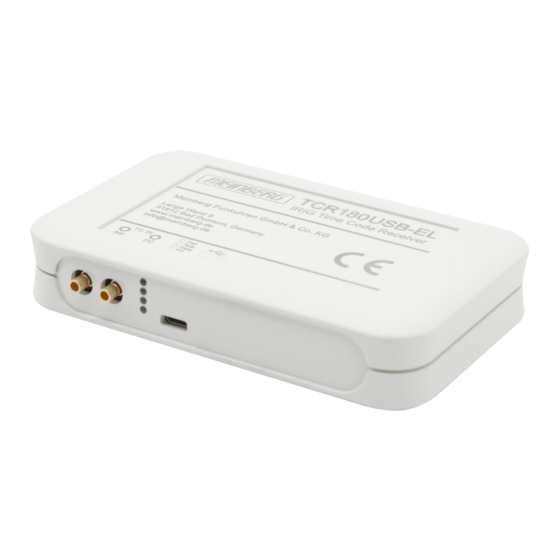

5 Technical Function TCR180USB-EL 5 Technical Function TCR180USB-EL The TCR180USB-EL is an IRIG receiver to be connected to the USB interface of a computer and is used to receive and decode modulated and unmodulated IRIG, AFNOR and IEEE time codes. -
Page 15: Functional Description
The internal system clock is always set to the received IRIG time, which might have a local offset to UTC. Only if TCR180USB-EL is configured with this offset, Meinberg driver software is able to set the system time of the computer correctly. - Page 16 5 Technical Function TCR180USB-EL B126: 100 pps, AM sine wave signal, 1 kHz carrier frequency BCD time-of-year, Year B127: 100 pps, AM sine wave signal, 1 kHz carrier frequency BCD time-of-year, Year, SBS time-of-day B006: 100 pps, DC Level Shift, no carrier...
-
Page 17: Internal Rtc
5.2 Internal RTC If the power supply of the TCR180USB-EL is interrupted the internal RTC continues to run on quartz basis. In this case the power supply of the clock will be provided by a built-in capacitor which has been charged via the USB power supply. -
Page 18: Tcr180 Usb Connectors
6 TCR180 USB Connectors 6.1 USB 2.0 high speed Interface Power supply: 5 V DC via USB Connection type: micro-USB type B 6.2 TCR180USB-EL Status LEDs LED Indicators Fail: red: Time Sync Error Tele.: green: Time Code data consistent red: Time Code data inconsistent... -
Page 19: Time Code Dcls (Unmodulated) Input
Signal level: 800 mV / 8 V (MARK/SPACE) impedance: std. 600 Ohm (optional 50 Ohm / 5 kOhm) Isolation Voltage: 3000 V DC Connection type: SMB male TC AM In Cable: shielded coax line Date: 15th October 2020 TCR180USB-EL Setup Guide... -
Page 20: Before You Start
Check the system for shipping damage. If the system is damaged or cannot be put into operation, contact Meinberg Funkuhren immediately. Only the recipient (the person or company receiving the system) can assert a claim against freight forwarder for shipping damage. -
Page 21: Disposal Of Packaging Materials
———————————————————————————————————————— 7.3 Download MBGMON The configuration as well as the status monitoring of the TCR180USB-EL is performed by the Meinberg Clock Monitor (MBGMON) program. Windows: You can download the MBGMON for free from the Meinberg homepage. Click on the following link to download the program. -
Page 22: System Installation
8.1 Connecting the System First connect the reference signals (TC AM or TC DCLS) and the management interface/power supply (USB connection) to the TCR180USB-EL. The initialisation phase starts automatically after the USB connection has been established (Init LED blue). Application example: The following schematic diagram shows a TCR180USB-EL whose synchronization is performed by using the time code outputs of an M300/GPS/TC-1-1. -
Page 23: Put The Tcr180Usb-El Into Operation
9 Put the TCR180USB-EL into operation This chapter explains how to put a TCR180USB-EL into operation via the management programm MBGMON. If your computer is running Windows 7 or later, the MBGMON program must be started as "Admin". Please right click on the program and select "Run as Administrator". -
Page 24: Configuration Of Tcr180Usb-El
9 Put the TCR180USB-EL into operation 9.1 Configuration of TCR180USB-EL The configuration of the TCR180USB-EL is done in the lower section of the MBGMON program. First click on the tab "Radio Clock" and select the TCR180USB in the drop-down menu. Status information of the selected radio-controlled clock (e.g. - Page 25 This is necessary if the time zone of the created IRIG or AFNOR code does not correspond to UTC time to ensure correct functioning of the driver software. For example: The time zone of the IRIG code is CET, the TCR180USB-EL must be set to the local offset ’+60min’ (CET = UTC + 1h). ————————————————————————————————————————————–...
-
Page 26: Set Tcr180Usb-El As Reference
9.2 Set TCR180USB-EL as reference After the configuration is completed, the TCR180USB-EL can be selected as reference source for the connected computer. Go to Settings –> Reference Time and select the TCR180USB-EL to use it for synchronizing the computer (see figure). - Page 27 Time service stopped waiting for reference time... Time service started but interrupted connection to clock System time set: Transmitted time information when setting the computer time by the TCR180USB-EL Corrected offset The corrected offset between computer time and reference time of...
-
Page 28: Technical Specifications Tcr180Usb-El
10 Technical Specifications TCR180USB-EL 10 Technical Specifications TCR180USB-EL Receiver Input: AM-input: Insulated by transformer impedance: Input signal: 800 mV to 8 V (Mark) other ranges on request DC-Level Shift Input: insulated by photocoupler internal series resistance: maximum forward current: 50 mA diode forward voltage: 1.0 V...1.3 V... -
Page 29: Rohs And Weee
Any transportation expenses for return- ing this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. Date: 15th October 2020... -
Page 30: Declaration Of Conformity
12 Declaration of Conformity 12 Declaration of Conformity Declaration of Conformity Doc ID: -2020-10-15 Hersteller Meinberg Funkuhren GmbH & Co. KG Manufacturer Lange Wand 9, D-31812 Bad Pyrmont erklärt in alleiniger Verantwortung, dass das Produkt, declares under its sole responsibility, that the product...
