Summary of Contents for Sinclair SF2 D3 Series

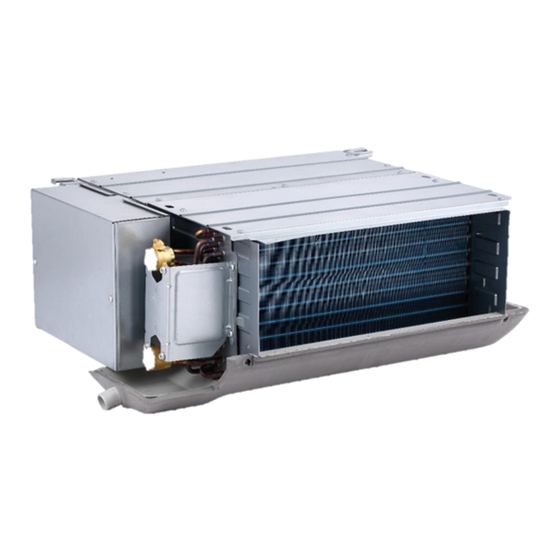

- Page 1 2 PIPES DUCT FAN COIL & USER SF2-XXXD3 AIR CONDITIONING...
- Page 2 “Original instructions” IMPORTANT NOTE: Read this manual ca r efully befo r e installing or operating your new air conditioning unit. Make sure to save this manual for future reference.
-
Page 3: Table Of Contents
RECOGNIZE THIS SYMBOL AS AN INDICATION OF IMPORTANT SAFETY INFORMATION WARNING These instructions are intended as an aid to qualified licensed service personnel for proper installation, adjustment and operation of this unit. Read these instructions thoroughly before attempting installation or operation. Failure to follow these instructions may result in improper installation, adjustment, service or maintenance possibly resulting in fire, electrical shock, property damage, personal injury or death. -
Page 4: Precautions
1 PRECAUTIONS WARNING Be sure to be in conformity with the local, national Use the attached accessories parts and and international laws and regulations. specified parts for installation. otherwise, it will cause the set to fall, water Read "PRECAUTIONS" carefully before installation. leakage, electrical shock and fire. -
Page 5: Installation Information
2 INSTALLATION INFORMATION CAUTION Before installing the unit,it is necessary to check whether the ground wire is charged. To install properly, please read this "Owner’s & If it is,the unit shall not be installed before Installation manual" at first. correction. The air conditioner must be installed by qualified Ground the air conditioner. -
Page 6: Parts Names
CAUTION NOTE Installing the equipment in any of the following If air conditioner is used outside the above places may lead to faults of the equipment (if that is conditions, it may cause the unit to function inevitable, consult the supplier): abnormally. - Page 7 Cut off the beams and girders of the ceiling. Reinforce the cut-off part, beams and girders of the ceiling. After the main body is suspended, work on the pipes and wires in the ceiling. Decide the lead-out direction Gasket of the pipes after selecting the installation site. Pendant Pendant bolt Especially, in a circumstance where a ceiling is...
- Page 8 7.2.3 Sample unit specification figure The quantities of the fans and motors are only for reference, please prevail in kind! Air return port Intlet Condensation Outlet water draining port Hoisting hole 4-10*16 Air exhaust valve Fig.7-9.1 Table 7-1 Model 400-Model 800-Model Size 200-Model 300-Model...
-
Page 9: Pipe Connection
8 PIPES CONNECTION NOTE With air release valve, the other side is water inlet The downward gradient of the drain pipe pipe. should be higher than (1/100), without bend in the middle. When connect water collecter, set the tightening torque to 6180~7540N.cm(630~770kgf.cm), and The total length of the drain pipe when pulled use a spanner to tighten it as shown in Figure. - Page 10 Table 10-1 AIR FLOW(CFM) 200~1400 1-phase PHASE POWER 220-240V~ 50Hz FREQUENCY AND VOLT 15/15 CIRCUIT BREAKER/FUSE(A) INDOOR UNIT POWER Twisted pairwire：1.5 BELOW 50M WIRING(mm GROUND WIRING(mm The power cord type designation is H05RN-F or above. 10.1 Wiring Diagram Warning: All power supply circuits must be cut off before approaching the terminal blocks. Main control board Attention: CN31...
- Page 11 New fault Failure Fault Applicable Classification code Subcode class definition models Sub fault (V11 (V11) (L1>L2>L3) version) Several times motor Fan failure Protection fault failures within 60 minutes Forced shutdown One time motor failure Fan failure failure Forced shutdown Fan failure Motor mismatch failure Water level...
- Page 12 New fault Failure Fault Applicable Classification code Subcode class definition models Sub fault (V11 (V11) (L1>L2>L3) version) Indoor unit and Indoor unit and Communication external board expansion board 2 failure communication communication failure failure Indoor unit and The communication external board Communication between the Indoor communication...
- Page 13 MODEL:SF2-300D3 Information to identify the model(s)to which the information relation: Item Symbol Value Unit Cooling capacity(sensible) Prated,c 2.66 Cooling capacity(latent) Prated,c 0.69 Heating capacity Prated,h 3.95 Total electric power input Pelec 0.025 Sound power level(per speed setting,if applicable) 56/46/38.5 contact details MODEL:SF2-400D3 Information to identify the model(s)to which the information relation: Item...
- Page 14 MODEL:SF2-700D3 Information to identify the model(s)to which the information relation: Item Symbol Value Unit Cooling capacity(sensible) Prated,c 5.54 Cooling capacity(latent) Prated,c 0.96 Heating capacity Prated,h 7.60 Total electric power input Pelec 0.075 Sound power level(per speed setting,if applicable) 65/60/54.5 contact details MODEL:SF2-800D3 Information to identify the model(s)to which the information relation: Symbol...
- Page 15 MODEL:SF2-1400D3 Information to identify the model(s)to which the information relation: Item Symbol Value Unit Cooling capacity(sensible) Prated,c 9.08 Cooling capacity(latent) Prated,c 2.03 Prated,h 12.67 Heating capacity Pelec 0.119 Total electric power input 69/65/61.5 Sound power level(per speed setting,if applicable) contact details...
- Page 16 United Kingdom www.sinclair-world.com This product was manufactured in China (Made in China). R E P R E S E N T A T I V E SINCLAIR Global Group s.r.o. Purkynova 45 612 00 Brno Czech Republic T E C H N I C A L S U P P O R T SINCLAIR Global Group s.r.o.
