Summary of Contents for Sinclair SF-85H

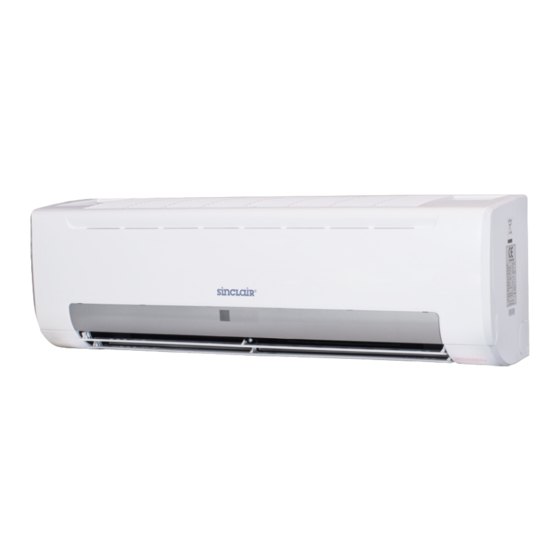

- Page 1 WALL MOUNTED FAN COIL UNIT INSTALLATION MANUAL SF-xxxH AIR CONDITIONING...
- Page 2 “Original instructions” IMPORTANT NOTE: Read this manual ca r efully befo r e installing or operating your new air conditioning unit. Make sure to save this manual for future reference.
-
Page 3: Table Of Contents
CONTENTS PAGE Install according to this installation instructions strictly. If installation is defective, it will cause water leakage, electrical shock and fire. PRECAUTIONS..................1 When installing the unit in a small room, take measures INSTALLATION INFORMATION............... 2 against to keep refrigerant concentration from exceeding ATTACHED FITTINGS................3 allowable safety limits in the event of refrigerant leakage. -
Page 4: Installation Information
2. INSTALLATION INFORMATION CAUTION Ground the air conditioner. To install properly, please read this "installation manual" at Do not connect the ground wire to gas or water pipes, first. lightning rod or a telephone ground wire.Incomplete grounding may result in electric shocks. The air conditioner must be installed by qualified persons. -
Page 5: Attached Fittings
3. ATTACHED FITTINGS Please check whether the following fittings are of full scope. If there are some spare fittings , please restore them carefully. QUANTITY NAME SHAPE FUNCTION 1. Screw ST3.9x25 for installation board Secure the installation board 2. Plastic expanded tube 3. -
Page 6: Inspecting And Handling The Unit
4. INSPECTING AND HANDLING THE UNIT 500\600 type At delivery, the package should be checked and any damage should mounting board of indoor unit be reported immediately to the carrier claims agent. When handling the unit, take into account the following: Fr agile, handle the unit with care. - Page 7 5.3 Connective Pipe and Drainage Installation CAUTIONS Drainage Run the drain hose sloping downward. Do not install the Connect the indoor unit first then the outdoor unit and bend drain hose as illustrated below. and arrange the pipe carefully. Do not allow the piping to let out from the back of the indoor unit.
-
Page 8: Water Pipe Installation
6. WATER PIPE INSTALLATION Take out the faceplate,then dismantle the display cover plate. (Refer to Fig 7-1) 6.1 Material and Size of the Piping faceplate Table 6-1 Pipe Material Copper Pipe for Air Conditioner Model 42.5/51/68 85/102 display cover plate Coil connections 3/4”... -
Page 9: Network Address Set
Table 7-1 Toggle switch set Network address code ENC2 00~15 X Y E 16~31 INDOOR UNIT POWER 32~47 To Central Control Monitor TO Timer 220-240V ～ 50Hz (CCM)COMM. BUS Fig.7-3 Please adopt the shielded twisted-pair wire, and connect the 48-63 shielded layer to E DISPLAY BOARD WIRE CONTROLLER... -
Page 10: Technical Support
SINCLAIR CORPORATION Ltd. 1-4 Argyll St. London W1F 7LD Great Britain www.sinclair-world.com This product was manufactured in China (Made in China). REPRESENTATIVE SINCLAIR EUROPE spol. s r.o. Purkynova 45 612 00 Brno Czech Republic TECHNICAL SUPPORT NEPA spol. s r.o. Purkynova 45...
