Pump Parts - Server CP-3L Quick Start Manual

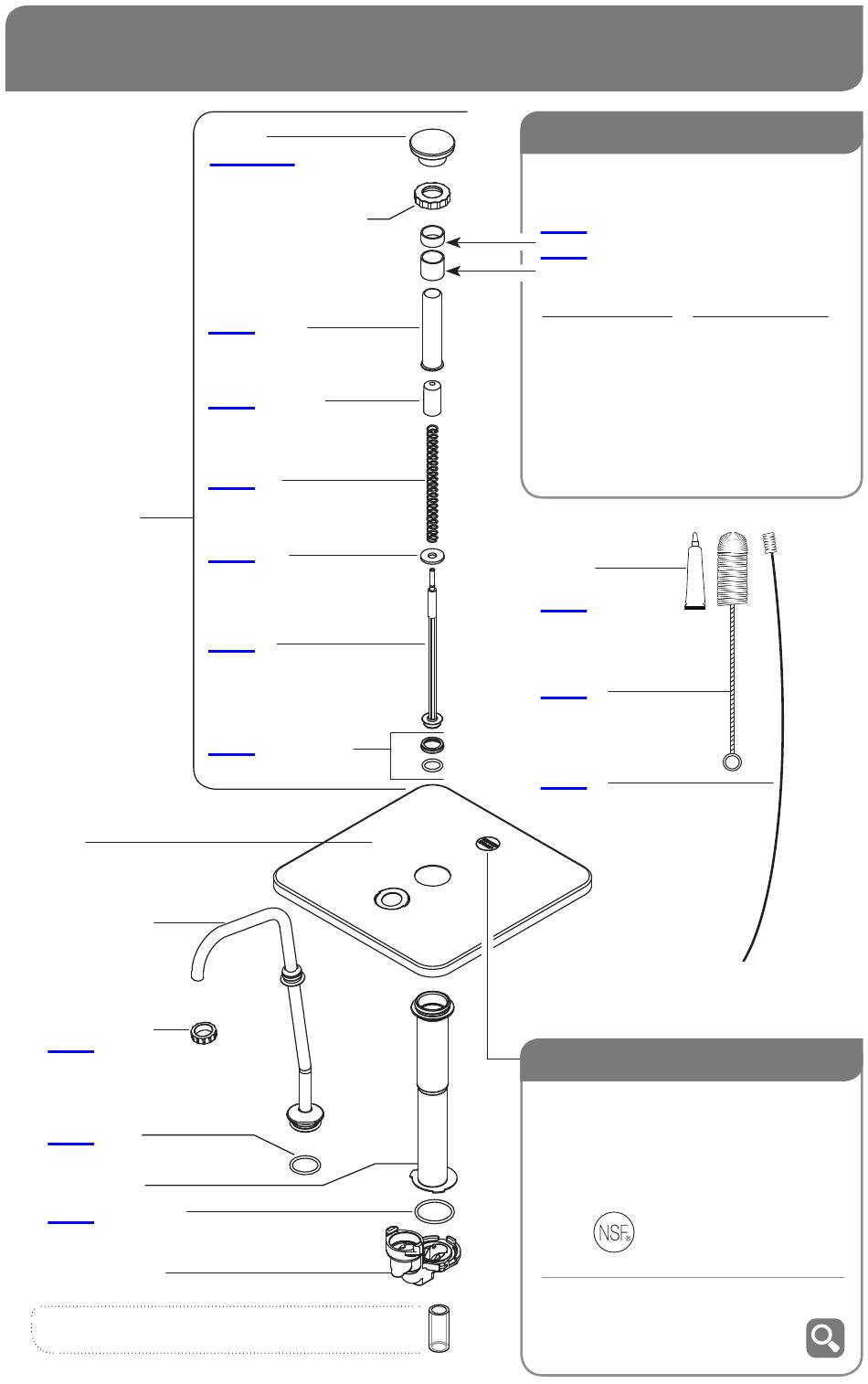

PUMP PARTS

PLUNGER
ASSEMBLY
LID*
DISCHARGE
TUBE*
DISCHARGE
TUBE NUT
82027
O-RING, 1"
05127
CYLINDER*
O-RING, 1-5/16"
82323
VALVE BODY*
SOME MODELS INCLUDE SUCTION TUBES
Page 2
KNOB*
(black knob:
82023-000)
LOCKING COLLAR*
HEAD TUBE
82017
HEAD INSERT
82018
SPRING
82016
WASHER
82015
PISTON
82013
SEAL ASSEMBLY
83003
PORTION CONTROL
PUMP DELIVERS 1 FL OZ PORTIONS
To reduce portion, add
GAGING COLLAR(S)
83529 SM COLLAR: 1/8 fl oz reduction
82022 LG COLLAR: 1/4 fl oz reduction
COLLAR(S) USED PORTION RESULT
None
1 Sm
1 Lg
1 Lg + 1 Sm
2 Lg
2 Lg + 1 Sm
3 Lg
3 Lg + 1 Sm
FOOD
EQUIPMENT
LUBRICANT
40179
BRUSH
82049
BRUSH
82526
MODEL NUMBER
*Parts may vary depending on
specific model.
Pump model, P/N (part number) and
other identification are stamped on lid:
MODEL SERIES
XXXX ##X ##X
P/N
#####
For additional details about your pump,
visit www.Server-Products.com
Enter your P/N into the search bar.
1 fl oz
7/8 fl oz
3/4 fl oz
5/8 fl oz
1/2 fl oz
3/8 fl oz
1/4 fl oz
1/8 fl oz
