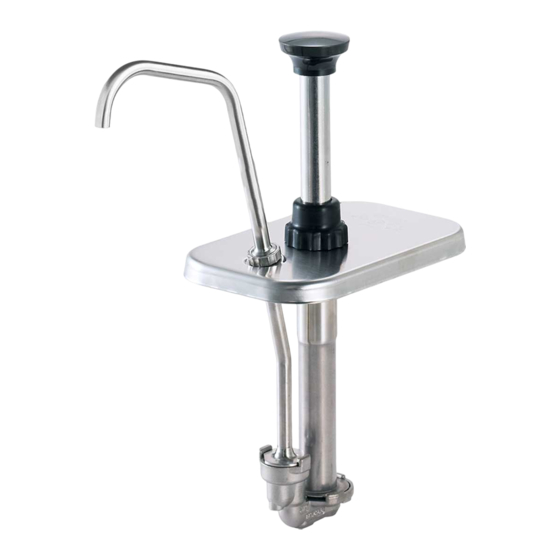

Stainless Steel Pump
MODELS INCLUDE:
CP-200
CP-F
FP
FP-V
FP-200
FP-200 DI
FP-200V
FP-1
/
1
2
FP-DI
FPV-DI
TP-V
TP-200V
Thank You
for purchasing our Stainless Steel Pump.
This quality NSF listed pump delivers precise portions
and lasts for years of service.
Your pump may vary
depending on specific
CONSISTENT PORTIONS—SERVE BETTER
model number.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Server CP-200
Summary of Contents for Server CP-200
- Page 1 Stainless Steel Pump MODELS INCLUDE: CP-200 CP-F FP-V FP-200 FP-200 DI FP-200V FP-1 FP-DI FPV-DI TP-V TP-200V Thank You for purchasing our Stainless Steel Pump. This quality NSF listed pump delivers precise portions and lasts for years of service. Your pump may vary depending on specific CONSISTENT PORTIONS—SERVE BETTER...
- Page 2 CYLINDER* MODEL SERIES XXXX ##X ##X O-RING, 1-5/16" 82323 ##### O-RING, 1" For additional details about your pump, 05127 visit www.Server-Products.com VALVE BODY Enter your P/N into the search bar. 82431 Page 2...
- Page 3 Be aware of the product you are serving and the hazardous foods.” temperature the product is required to maintain. Server Products, Inc. cannot be responsible for the Pumps 80090 & 81660 are NSF listed as part serving of potentially hazardous product.
- Page 4 CLEAN-IN-PLACE PROCEDURE FOR PUMPS CLEAN • Pump out all (if any) remaining food product from inside pump body. • Wash and rinse off outside of pump body. • Flush out and rinse inside of pump. • Place lower end of pump into container full of water and operate pump until all (if any) remaining product is expelled and only warm water flows from discharge...
- Page 5 DISASSEMBLY If pump has been in use, first rinse and flush pump. See PUMP CLEANING on page 3. During disassembly, collect small parts in a container to prevent loss. REMOVE PLUNGER & LID Turn locking collar (and discharge tube nut if used) counterclockwise to loosen and remove.
- Page 6 ASSEMBLY WASH ALL PARTS PROPERLY BEFORE EVERY USE. See page 3. PREPARE PISTON INSTALL SMALL O-RING into seal. INSTALL SEAL onto piston head. Apply food equipment lubricant to outside of seal. TIP: Flared end of seal should face away from piston head. SLIDE WASHER onto piston.
- Page 7 INSTALL LARGE O-RING into valve body. Apply food equipment lubricant on o-ring. INSTALL CYLINDER onto valve body. TILT wide edge of cylinder under nub on rim of valve body. FIT TABS on cylinder into corresponding notches in valve body. PRESS DOWN firmly and ROTATE cylinder clockwise to secure into slots.
- Page 8 GENERAL SERVICE, SERVER PRODUCTS REPAIR OR RETURNS LIMITED WARRANTY Before sending any item to Server Products for service, repair, or return, contact Server Products customer service to request a Return Authorization Number. Merchandise must be sent to Server Products with this number. Service is extremely prompt.
