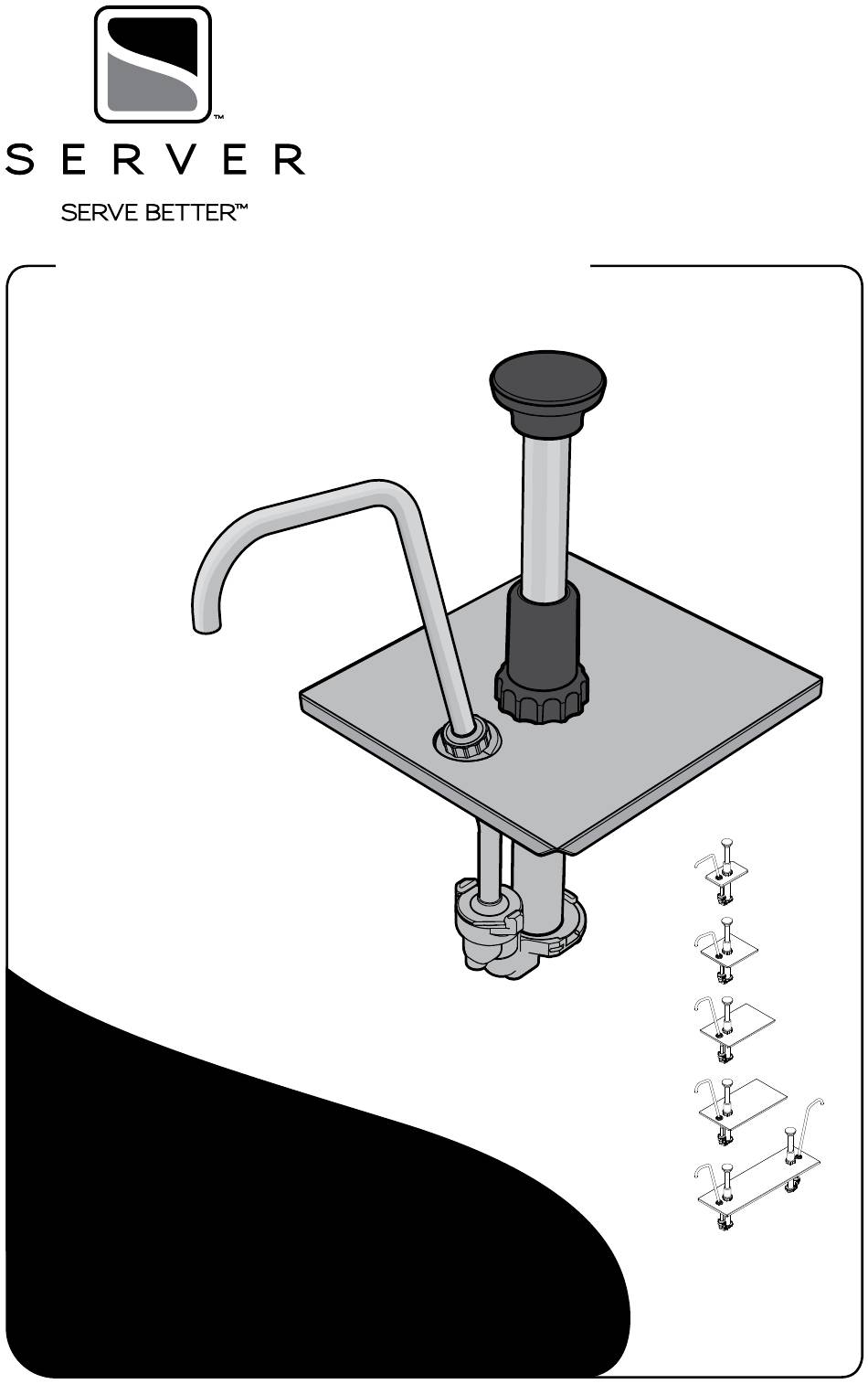

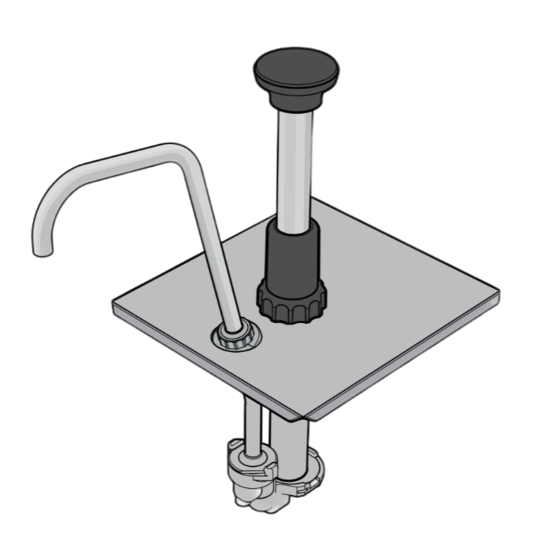

Stainless Steel Pump
for use with fractional food pans,
150 mm (6") deep
MODELS INCLUDE:
FP-1/9
FP-1/6
CP-1/9
CP-1/6
CP-1/4
CP-1/3
CP-1/2
Thank You
...for purchasing our Stainless Steel Pump.
This quality NSF listed pump delivers precise portions
Your pump may vary
and lasts for years of service.
depending on specific
model number.
CONSISTENT PORTIONS—SERVE BETTER
Advertisement
Table of Contents
Related Manuals for Server SERVE BETTER CP-1/2
Summary of Contents for Server SERVE BETTER CP-1/2
- Page 1 Stainless Steel Pump for use with fractional food pans, 150 mm (6") deep MODELS INCLUDE: FP-1/9 FP-1/6 CP-1/9 CP-1/6 CP-1/4 CP-1/3 CP-1/2 Thank You ...for purchasing our Stainless Steel Pump. This quality NSF listed pump delivers precise portions Your pump may vary and lasts for years of service.
-
Page 2: Pump Parts
Pump model, p/n (part number) and 05127 other identification are stamped on lid: MODEL SERIES CYLINDER XXXX ##X ##X 82336 ##### O-RING, 1-5/16" 82323 For additional details about your pump, VALVE BODY visit www.Server-Products.com 82431 Enter your P/N into the search bar. Page 2... -
Page 3: Pump Cleaning
Be aware of the product you are serving and the NSF International list this pump as temperature the product is required to maintain. “Not acceptable for dispensing potentially Server Products, Inc. cannot be responsible for the hazardous foods.” serving of potentially hazardous product. PUMP CLEANING FLUSH &... -
Page 4: Clean-In-Place
CLEAN-IN-PLACE PROCEDURE FOR PUMPS CLEAN • Pump out all (if any) remaining food product from inside pump body. • Wash and rinse off outside of pump body. • Flush out and rinse inside of pump. • Place lower end of pump into container full of water and operate pump until all (if any) remaining product is expelled and only warm water flows from discharge... - Page 5 DISASSEMBLY If pump has been in use, first rinse and flush pump. See PUMP CLEANING on page 3. During disassembly, collect small parts in a container to prevent loss. REMOVE PLUNGER & LID Turn locking collar and discharge tube nut counterclockwise to loosen and remove.
- Page 6 ASSEMBLY WASH ALL PARTS PROPERLY BEFORE EVERY USE. See page 3. PREPARE PISTON INSTALL SMALL O-RING into seal. Apply food equipment lubricant on o-ring. INSTALL SEAL onto piston head. Apply food equipment lubricant inside seal. TIP: Flared end of seal should face away from piston head.
- Page 7 INSTALL LARGE O-RING into valve body. Apply food equipment lubricant on o-ring. INSTALL CYLINDER onto valve body. TILT wide edge of cylinder under nub on rim of valve body. FIT TABS on cylinder into corresponding notches in valve body. PRESS DOWN firmly and ROTATE cylinder clockwise to secure into slots.
-
Page 8: Troubleshooting
Server Products customer service to request a Return Authorization Number. Merchandise must be sent to Server Products with this number. Service is extremely prompt. Typically, units are repaired Server Products equipment is backed by a and ship out within 48 hours of receipt.
