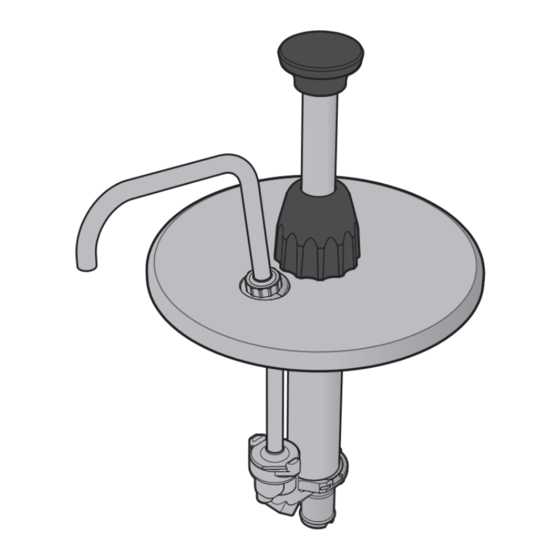

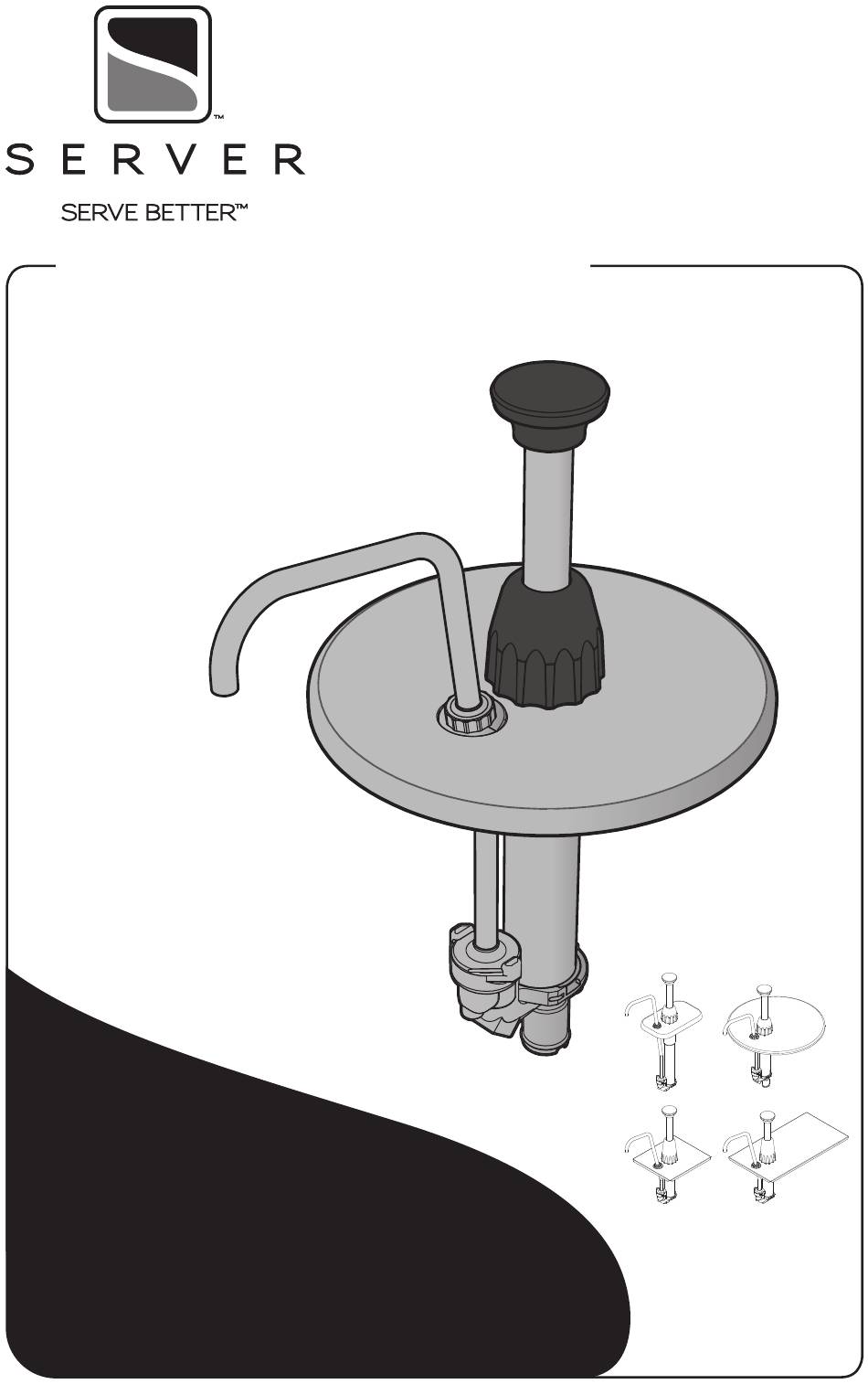

Stainless Steel Pump
to dispense portions up to 2oz
MODELS INCLUDE:
CP-1/3 2oz
CP-200 2oz
CP-200V 2oz
CP-6½ 2oz
CP-8½ 2oz
CP-10½ 2oz
CP-15L 2oz
CP-F 2oz
Thank You
...for purchasing our Stainless Steel Pump.
This quality, NSF listed pump delivers larger portions
Your pump may vary
with less effort and lasts for years of service.
depending on specific
model number.
CONSISTENT PORTIONS—SERVE BETTER
Advertisement
Table of Contents
Related Manuals for Server SERVE BETTER CP-1/3 2oz
Summary of Contents for Server SERVE BETTER CP-1/3 2oz
- Page 1 Stainless Steel Pump to dispense portions up to 2oz MODELS INCLUDE: CP-1/3 2oz CP-200 2oz CP-200V 2oz CP-6½ 2oz CP-8½ 2oz CP-10½ 2oz CP-15L 2oz CP-F 2oz Thank You ...for purchasing our Stainless Steel Pump. This quality, NSF listed pump delivers larger portions Your pump may vary with less effort and lasts for years of service.
- Page 2 MODEL SERIES XXXX ##X ##X CYLINDER* ##### GASKET 88554 For additional details about your pump, O-RING, 1" visit www.Server-Products.com 05127 Enter your P/N into the search bar. VALVE BODY* Certain models include plastic extension tube Page 2...
- Page 3 Be aware of the product you are serving and the NSF International list this pump as temperature the product is required to maintain. “Not acceptable for dispensing potentially Server Products, Inc. cannot be responsible for the hazardous foods.” serving of potentially hazardous product. PUMP CLEANING FLUSH &...
- Page 4 CLEAN-IN-PLACE PROCEDURE FOR PUMPS CLEAN • Pump out all (if any) remaining food product from inside pump body. • Wash and rinse off outside of pump body. • Flush out and rinse inside of pump. • Place lower end of pump into container full of water and operate pump until all (if any) remaining product is expelled and only warm water flows from...
- Page 5 DISASSEMBLY If pump has been in use, first rinse and flush pump. See PUMP CLEANING on page 3. During disassembly, collect small parts in a container to prevent loss. REMOVE PLUNGER & LID Turn locking collar and discharge tube nut counterclockwise to loosen and remove.
- Page 6 ASSEMBLY WASH ALL PARTS PROPERLY BEFORE EVERY USE. See page 3. PREPARE PISTON INSTALL SMALL O-RING into seal. INSTALL SEAL onto piston head. Apply food equipment lubricant to outside of seal. SLIDE WASHER onto piston. SLIDE SPRING SET ASIDE onto piston FOR STEP 3 PREPARE HEAD TUBE OPTIONAL:...
- Page 7 INSTALL GASKET into valve body. Apply food equipment lubricant on gasket. INSTALL CYLINDER onto valve body. TILT edge of cylinder under nub on rim of valve body. FIT TABS on cylinder into corresponding notches in valve body. PRESS DOWN firmly and ROTATE cylinder clockwise to secure into slots.
- Page 8 Server Products customer service to request a Return Authorization Number. Merchandise must be sent to Server Products with this number. Service Server Products equipment is backed by a is extremely prompt. Typically, units are repaired two-year limited warranty against defects in and ship out within 48 hours of receipt.
