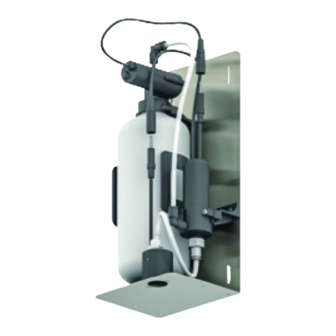

- Page 1 BC634F DOLPHIN BEHIND MIRROR FOAM SOAP DISPENSER I N S TA L L AT I O N A N D M A I N T E N A N C E G U I D E November 2021...
- Page 2 The tradenames, trademarks, logos and service marks presented in this document, including their design, are the property of Dolphin Solutions Ltd or other third parties and you are not permitted to use them without the prior written consent of Dolphin Solutions Ltd or such third party as may own them.
-
Page 3: Technical Data
1.4cc (customizable by optional remote Standard discharge BTM Soap dispenser B/E control) Varies according to viscosity and soap Standard discharge BTM Foam E consis- tency 30-100 mm +/- 10 mm /1.18-3.94” Sensor range (customiz- able by optional remote control) Dolphin Elements | BC634F... -
Page 4: Pre-Installation Info
Dolphin soap dispensers are suitable for use with any generic liquid soap of the correct viscosity and pH. The pH level of all soap used in Dolphin soap dispensers should be between 6.5 to 8.5. Lower levels will cause corrosion to the metal dispenser and even the rubber and plastic components. Higher pH levels will cause swelling to rubber parts and degradation of plastic components over time. -
Page 5: Pack Contents
4 screws up to 5mm (not supplied) 4 screws up to 5mm (not supplied) B Versions E Versions 12V Transformer 12V Transformer Battery Box for 6xD Alkaline batteries Dolphin Elements | BC634F... -
Page 6: Installation
1. Remove the protective sticker covering the sensor. 2. Place the soap dispenser assembly inside the mirror compartment with the spout sticking out of the hole. 3. Secure the plate to the wall with 4 screws (not supplied). 6 | Dolphin Elements | BC634F... - Page 7 Connect the transformer connector to the matching connector from the sensor and plug the transformer into the electricity socket. 3. Wait about 10 seconds before placing your hands within the sensor range to avoid adjustment mode. Dolphin Elements | BC634F...
-
Page 8: Filling The Soap Tank
(if available). see page 14/15. Note: When the soap in the soap tank reaches the bottom line, the tank needs to be refilled. To refill the soap tank please refer to steps 1-5. 8 | Dolphin Elements | BC634F... - Page 9 Once soap begins dispensing from the spout, priming is complete. press the FILL button again to stop the priming before the minute is over. Indication: continuous solid light in the sensor eye. 9 | Dolphin Elements | BC634F...
-
Page 10: Battery Replacement
4. Close the box. NOTE: Do not mix used batteries with new ones. Important: Spent batteries should not be disposed of with normal household waste. Contact your local authority for information regarding waste disposal and recycling. 10 | Dolphin Elements | BC634F... - Page 11 Once soap begins dispensing from the spout, priming is complete. press the FILL button again to stop the priming before the minute is over. Indication: continuous solid blue light in the sensor eye. 11 | Dolphin Elements | BC634F...
-
Page 12: Maintenance
Clean out the tank prior to refill by flushing warm water through the hoses and pump until clean water is released from the spout. TIP: Keeping a spare tank will enable this process to be completed in a speedy and hygienic manner with minimal downtime. 12 | Dolphin Elements | BC634F... -
Page 13: Spare Parts List
12V TRANSFORMER (EU) 06522086 12V TRANSFORMER (UK) 06522080 12V TRANSFORMER (US) 06522085 12V TRANSFORMER (AU) 07100008 REMOTE CONTROL FOR SOAP DISPENSER (OPTIONAL) 07100009 REMOTE CONTROL FOR FOAM DISPENSER (OPTIONAL) 07100014 SOAP & WATER REMOTE CONTROL (OPTIONAL) 13 | Dolphin Elements | BC634F... -
Page 14: Troubleshooting
TROUBLESHOOTING 14 | Dolphin Elements | BC634F... - Page 15 TROUBLESHOOTING 15 | Dolphin Elements | BC634F...
- Page 16 TROUBLESHOOTING 16 | Dolphin Elements | BC634F...
- Page 17 MULTIFEED DISPENSERS MANUAL 6mm BLACK TUBING ENSURE ENOUGH CLEARANCE FOR REFILLING ACCESS CUT TUBE TO 150 - 300mm 8mm CLEAR TUBING 130 x 190 17 | Dolphin Elements | BC634F...
- Page 18 Dolphin Solutions Ltd Southpoint, Compass Park, Bodiam, Robertsbridge, TN32 5BS Tel: +44 (0)1424 20 22 24 Fax: +44 (0)1424 205 200 info@dolphinsolutions.co.uk www.dolphinsolutions.co.uk...
