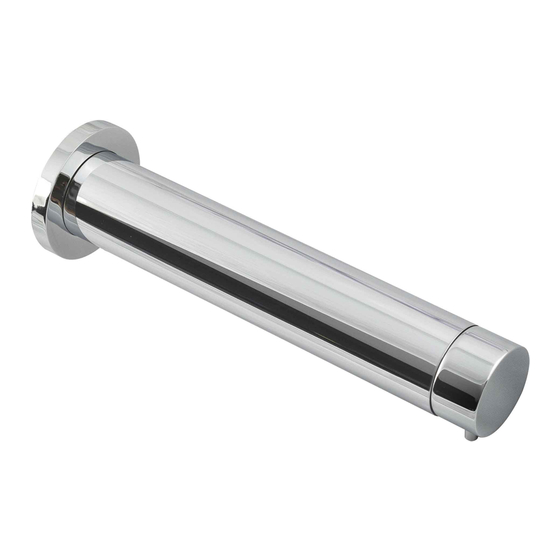

Summary of Contents for Dolphin BC632

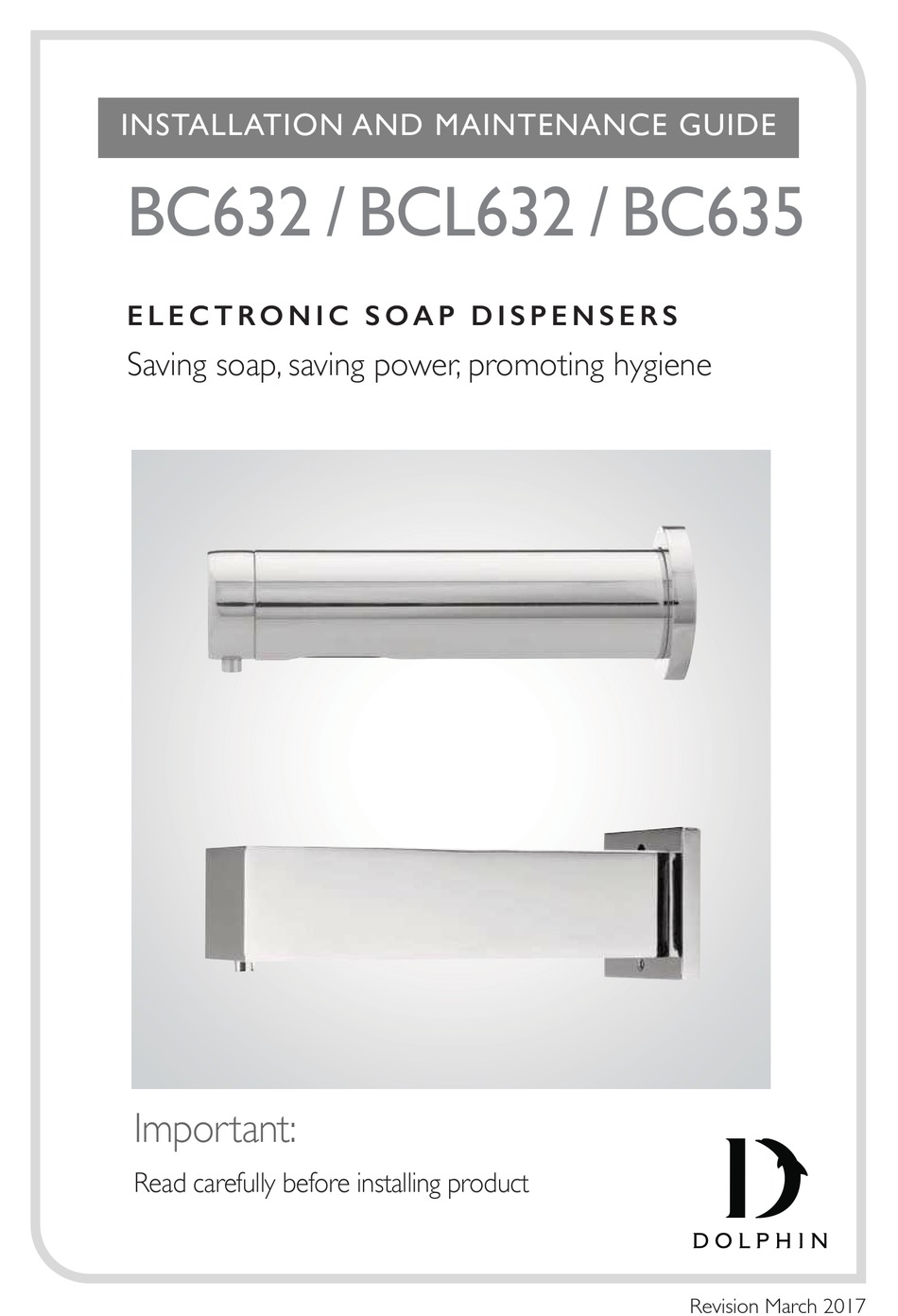

- Page 1 INSTALLATION AND MAINTENANCE GUIDE BC632 / BCL632 / BC635 BC632 / BC635 E L E C T R O N I C S O A P D I S P E N S E R S Saving soap, saving power, promoting hygiene...
-
Page 2: Table Of Contents
Pack Contents 7-11 Installation Filling The Soap Tank Setings Adjustment With a Remote Control Battery Replacement Maintenance Care and cleaning of chrome and special finishes Spare Parts List Warranty Trouble Shooting Dolphin BC 632 / BCL 632 / BC 635... -
Page 3: Technical Data
TECHNICAL DATA BCL 114mm / 150mm BC632 BC635 BC632 BC635 Wall plate version - enquire for details Wall plate version - enquire for details Capacity 1 litre Power Supply IP 67 Battery Box for 6xD Alkaline batteries \ Transformer Soap viscosity 100 –... -
Page 4: Pre-Installation Information
3) If a sink strainer is straight below the tap sensor, use a strainer with a non reflective finish (do not use a chrome plated one). Correct Installation Incorrect installation Dolphin BC 632 / BCL 632 / BC 635... - Page 5 PACK CONTENTS BC632/ BC635 Familiarise yourself with the part names and confirm that the parts are included. 1x Body assembly for Soap Dispenser (incl. electronic unit) 1 x M 4 x 4 Set Screw 1 x Bottle Support 2 x Screw 3.5x1 1/4”...
- Page 6 1 x M 4 x 4 Set Screw 1 x bottle support 2 x Screw 1 x Soap tank and 3.5x1 1/4” pump assembly 2 x 5 mm Anchors Battery Transformer Dolphin BC 632 / BCL 632 / BC 635...
- Page 7 Fix the base behind the wall with the hexagonal nut and the disk. Fix the bottle support to the desired location. Assemble the tube from the pump to the soap dispenser. Dolphin BC 632 / BCL 632 / BC 635...
- Page 8 INSTALLATION BC632/ BC635 STEP 3 – CONNECTING THE POWER SOURCE Remove the protective sticker covering the sensor. Keep away from the sensor range and check that no objects are in front of the sensor. 2. a. Connect the motor connector to the power source connector. Please note that since the connector is water proof, some friction might apply.
- Page 9 2. Assemble the temporary protective soap dispenser base cover. Dolphin BC 632 / BCL 632 / BC 635...
- Page 10 7. Pull the four way connector and the power supply connector out of the soap dispenser base, and lead it through the corrugated tube. Dolphin BC 632 / BCL 632 / BC 635...
- Page 11 For transformer versions: plug the transformer into the electricity socket and connect the transformer connector Wait about 10 seconds before you put your hands within the sensor range. Dolphin BC 632 / BCL 632 / BC 635...
-
Page 12: Filling The Soap Tank
To refill soap dispenser the soap tank spout. This please refer to operation can also steps 1-5. be done using the soap dispenser remote control Refill function. Dolphin BC 632 / BCL 632 / BC 635... - Page 13 Once the soap tank has been refiled, press the FILL button. The pump would work for one minute in order for the soap to start coming out of the soap dispenser spout. To stop this activity press the FILL button again. Dolphin BC 632 / BCL 632 / BC 635...
-
Page 14: Battery Replacement
NOTE: Do not mix used batteries with new ones. 4. Close the box. Important: Spent batteries should not be disposed of with normal household waste. Contact your local authority for information on waste disposal and recycling. Dolphin BC 632 / BCL 632 / BC 635... -
Page 15: Maintenance
For surface cleaning use ONLY soap and water, then wipe dry with a clean cloth or towel. When cleaning bathroom tiles, the soap dispenser should be protected from any splattering of harsh cleansers. Dolphin BC 632 / BCL 632 / BC 635... -
Page 16: Spare Parts List
SPARE PARTS LIST Seals and screws kit BC632 BC 07210098 Seals and screws kit BC635 BC 07210128 Sensor BC 08002195 Soap Tank 1L BC 07100020 Transformer BC 06522042 Soap Dispenser Pump assembly BC 07222001 Remote control BC 07100008 IP67 transformer box... -
Page 17: Warranty
If a defect is found in normal use, Dolphin Solutions will, at its discretion, repair, provide a replacement part or product, or make appropriate adjustments. Damage caused by accident, misuse, or abuse is not covered by this warranty. -
Page 18: Trouble Shooting
Dolphin BC 632 / BCL 632 / BC 635...
