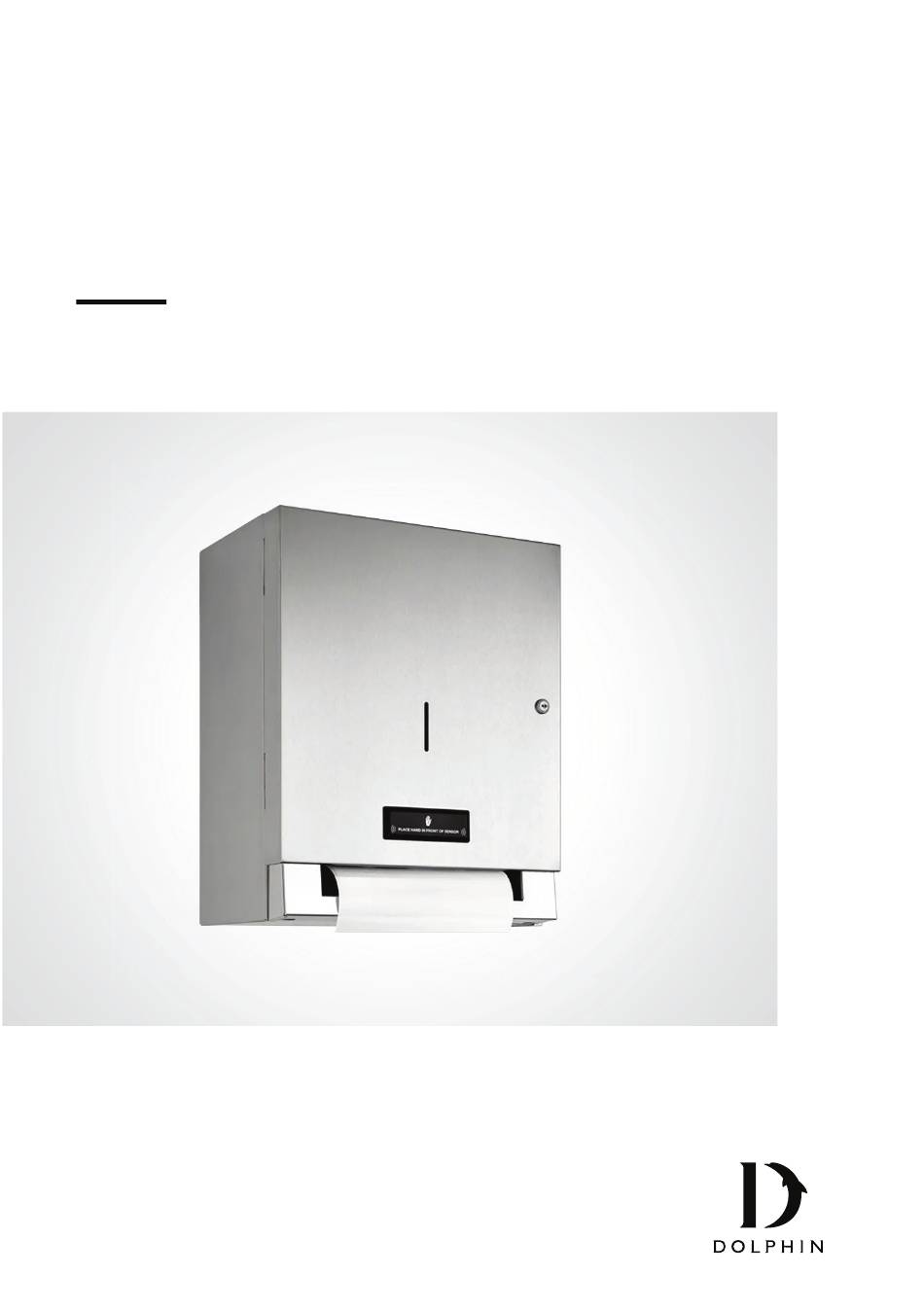

- Page 1 DP3114-BTRY DOLPHIN PRESTIGE TOUCH FREE PAPER TOWEL DISPENSER M A N U A L January 2024...
-
Page 2: Table Of Contents
READ AND KEEP IN MIND ALL INSTRUCTIONS AND RECOMMENDATIONS DESCRIBED THROUGHOUT THIS MANUAL. Liability and warranty General safety instructions 7-11 Product description 12-15 Mounting 16-19 First use Assistance with faults 21-22 Maintenance Detergents Disposal DP3114-BTRY | Dolphin Solutions | 2... -
Page 3: Liability And Warranty
Delivery of Dolphin Solutions Ltd Southpoint Compass Park Junction Rd Bodiam Rober tsbridge TN32 5BS Subject to technical modifications! Due to constant fur ther development, illustrations, function steps and technical data may differ slightly. DP3114-BTRY | Dolphin Solutions | 3... -
Page 4: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS These instructions for use have been prepared specifically for personnel servicing the DP3114-BTRY paper roll dispenser. They contain impor tant information for installing, operating and cleaning the system. DUTY OF CARE OF THE USER The touch free paper roll dispenser has been designed and constructed on the basis of a hazard analysis and careful selection of the harmonised standards to be observed, as well as other technical specifications. - Page 5 The respective authorities of the operating personnel must be clearly defined. All persons who under take activities on the product must read the instructions for use and sign to confirm that they have understood the instructions for use. DP3114-BTRY | Dolphin Solutions | 5...
- Page 6 Mains-operated dispensers must be connected to a customer-provided disconnect device that guarantees disconnection of all phases through contact separation of at least 3 mm per phase. During repair work, the dispenser must be disconnected from the means voltage. DP3114-BTRY | Dolphin Solutions | 6...
-
Page 7: Product Description
(6 V) The door is screwed to the housing using 2 sturdy stainless steel hinges. The door is secured by a lock. Fur thermore, the touch free paper roll dispensers have a storage compar tment for spare paper towel rolls. DP3114-BTRY | Dolphin Solutions | 7... - Page 8 Fur thermore, the manufacturer shall not be held liable in this case. In par ticular, we point out that › The product is not suitable for unrolling cloth hand towels or liquid-impregnated paper towel rolls. DP3114-BTRY | Dolphin Solutions | 8...
- Page 9 PRODUCT DESCRIPTION CONSTRUCTION OF THE TOUCH FREE PAPER ROLL DISPENSER DP3114-BTRY | Dolphin Solutions | 9...
- Page 10 Empty weight 9.3 kg Electrical connection data Rated voltage Total connected load 7 watts Power supply 4 x 1.5 V mono cell battery Environmental conditions Ambient temperature +10°C to +45°C DP3114-BTRY | Dolphin Solutions | 10...
- Page 11 › Remove external packaging. › Lift the product out of the box. › Dispose of films, solid foam and box separately (observe local regulations). › Check consignment for completeness and integrity. DP3114-BTRY | Dolphin Solutions | 11...
-
Page 12: Mounting
All 4 fastenings facilities must always be used. The dispenser is supplied fully assembled and ready for use. No assembly work is required on the dispenser. Fastening points Wall recess: min. 352 x 450 mm Depth: min: 100 mm max: 180 mm DP3114-BTRY | Dolphin Solutions | 12... - Page 13 Connect the mains cable directly to the connection terminals provided in the product. For battery-powered products, place › 4 x 1.5 V mono cell batteries in the battery compar tment. › Lock the door by means of the lock. DP3114-BTRY | Dolphin Solutions | 13...
- Page 14 The dispenser should be ready to use again immediately once the disturbance no longer exists. To prevent erroneous actuation from occurring again, reduce the sensor range until the disturbance disappears. DP3114-BTRY | Dolphin Solutions | 14...
- Page 15 Four (4) 1.5 V mono cell batteries are needed. Please use only alkaline batteries (Type LR20). DP3114-BTRY | Dolphin Solutions | 15...
-
Page 16: First Use
Correct inser tion of the batteries or correct electrical connection can be checked by pressing the “Manual operation” button. › The motor and the paper transpor t mechanism continue to run as long as the “Manual operation” button is pressed. DP3114-BTRY | Dolphin Solutions | 16... - Page 17 Idle time from 1 s to 6 s, the operation inhibit time begins immediately after the dispens- ing cycle. Paper cannot be requested during this time. The set time is also indicated by the battery LED. The LED glows for the set idle time after paper has been dispensed. DP3114-BTRY | Dolphin Solutions | 17...
- Page 18 The dispenser is now ready for use, the door can be closed. The paper on the new roll is grasped and dispensed once the old roll is consumed almost completely. DP3114-BTRY | Dolphin Solutions | 18...
- Page 19 Make sure that the product is not placed back in service unintentionally. If necessary, attach an appropriate warning sign (e.g.: “Out of service, do not connect to mains”) Warning! Never clean electrical equipment with water or similar liquids. DP3114-BTRY | Dolphin Solutions | 19...
-
Page 20: Assistance With Faults
ASSISTANCE WITH FAULTS › Repair work must only be carried out by service. › In case of faults, please contact the customer service depar tment at Dolphin Solutions, stating the product type and the product number (see identification plate). ›... -
Page 21: Maintenance
Then wash down with clear water. Clean the product only with the detergents intended for this purpose and use only a small amount of water. Warning! Risk of injuries on sheet edges of the doors and carcass DP3114-BTRY | Dolphin Solutions | 21... - Page 22 INTERIOR CLEANING Caution! Prevent contact of moisture with the electrical components of the roll-fed paper towel dispenser. This prevents proper ty damage or injuries as the result of a shor t circuit. DP3114-BTRY | Dolphin Solutions | 22...
-
Page 23: Detergents
Especially for stubborn grease contamination, paints Disinfectant cleaner Action on pathogenic microorganisms – different, depending on disinfecting agent. Acidic cleaners Removes soiling such as lime scale, rust deposits, lipophilic pigment soiling, and lighter grease contamination. DP3114-BTRY | Dolphin Solutions | 23... -
Page 24: Disposal
Render the disused product unusable immediately to prevent subsequent accidents involving the product. › Dispose of the product in a proper, environmentally friendly manner (local regulations must be observed). › Dispose of used batteries in accordance with applicable laws and regulations DP3114-BTRY | Dolphin Solutions | 24... - Page 25 Dolphin Solutions Ltd Southpoint, Compass Park, Bodiam, Robertsbridge,TN32 5BS Tel: +44 (0)1424 20 22 24 Fax: +44 (0)1424 205 200 info@dolphinsolutions.co.uk www.dolphinsolutions.co.uk...
