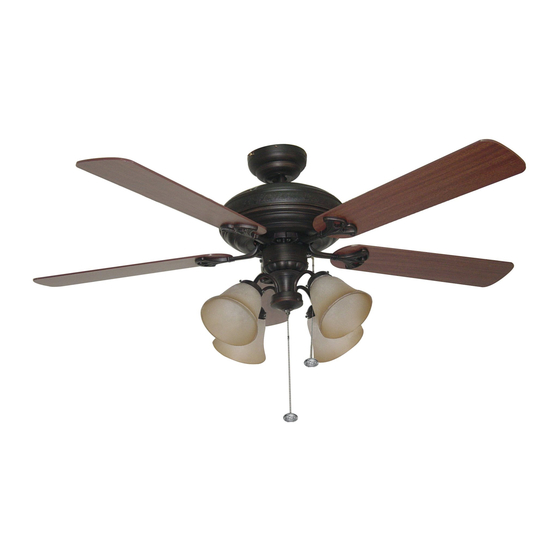

Craftmade ELLINGTON E-BFT52ABZ5C Installation Manual

Hide thumbs

Table of Contents

Quick Links

Download this manual

Federal regulations require ceiling fans

with light kits manufactured or imported

after January 1, 2009, to limit total

wattage consumed by the light kit to

190W.

Therefore, this fan is equipped

with a wattage limiting device.

Installation Guide

For Models:

E-BFT52ABZ5C

E-BFT52AN5C

E124404

net weight of fan: 22.05 lb. (10 kg)

READ THESE INSTRUCTIONS AND

SAVE THEM FOR FUTURE USE

Need help?

Do you have a question about the ELLINGTON E-BFT52ABZ5C and is the answer not in the manual?

Questions and answers

Summary of Contents for Craftmade ELLINGTON E-BFT52ABZ5C

Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Federal regulations require ceiling fans with light kits manufactured or imported after January 1, 2009, to limit total wattage consumed by the light kit to 190W. Therefore, this fan is equipped with a wattage limiting device.
Page 2: Safety Tips
SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure that the hanging location allows the blades a 7 feet inches clearance of 7ft. (2,13m) from the floor and 30in. (2.13m) (76cm) (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 400 square feet (37.2 square meters).
Page 5 5. Fan Assembly (with downrod). If you wish to extend the hanging length of your set screw hole fan, you must remove the hanging ball from the set screw 4in. downrod provided to use with an extended stop pin downrod (sold separately). [If you wish to use the 4in.
Page 6: Fan Assembly. Pgs
5. Fan Assembly (with downrod). (cont.) With the hanging bracket secured to the outlet box and able to support the fan you are now ready to hang your fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket and let hanging ball hanging bracket tab rest on the hanging bracket.
Page 7: Wiring
7. Wiring. CAUTION: Be sure outlet box is properly grounded and that a ground wire (GREEN or Bare) is present. white supply wire Make sure all electrical connections comply with ground Local Codes or Ordinances and the National (green or bare) black supply wire Electrical Code.
Page 8: Blade Assembly
blade screw and washer 9. Blade Assembly. Time Saver: Washers for blade screws can be set motor housing on each blade screw prior to installing blades. Locate 15 blade attachment screws and washers in hardware pack. Hold blade arm up to blade and blade attachment align holes.
Page 9: Testing Your Fan
10. Light Kit Assembly (Optional). (cont.) motor housing Connect WHITE wire from switch housing to WHITE wire from light kit fitter. Connect BLACK (or BLUE) wire from switch housing to BLACK wire from light kit fitter. Be sure that molex connections snap together completely.
Page 10: Troubleshooting
1. Check wall switch to fan. Customer Service at 1-800-486-4892 to arrange for return 2. Verify that reverse switch is set completely in of fan. Return fan, shipping prepaid, to Craftmade/Ellington. either direction. We will repair or ship you a replacement fan, and we will 3.
