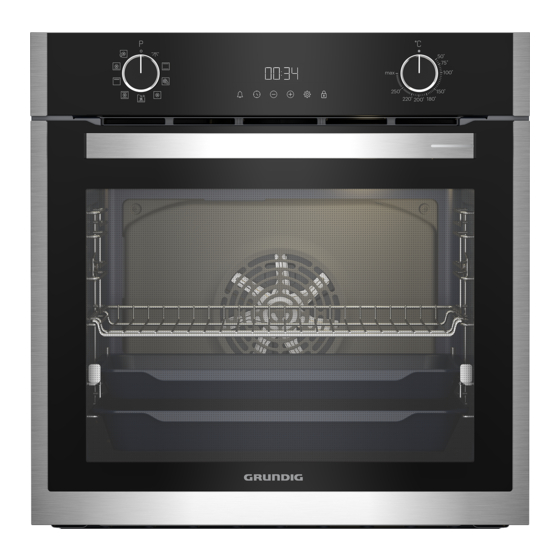

Built-in Oven
User Manual
GEBM19300BC
385441557/ EN/ R.AB/ 01/11/2023 01:19
7757883008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GEBM19300BC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Grundig GEBM19300BC

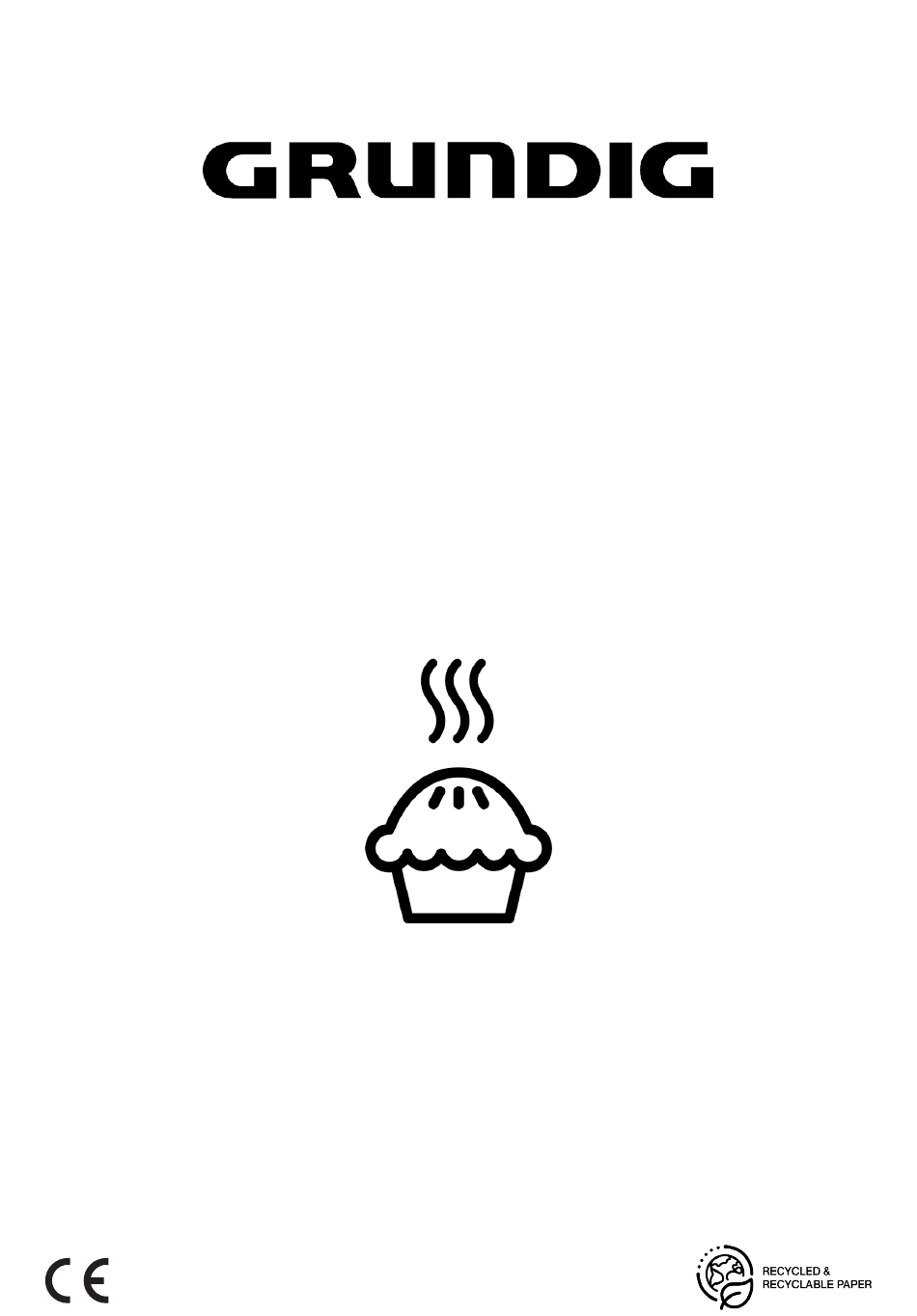

  • Page 1 Built-in Oven User Manual GEBM19300BC 385441557/ EN/ R.AB/ 01/11/2023 01:19 7757883008...
  • Page 2 Welcome! Dear Customer, Thank you for choosing the Grundig product. We want your product, manufactured with high quality and technology, to offer you the best efficiency. Therefore, carefully read this manual and any other documentation provided before using the product.
  • Page 3: Table Of Contents

    6.1.1 Pastries and oven food....24 Table of Contents 6.1.2 Meat, Fish and Poultry ....27 1 Safety Instructions......6.1.3 Grill ..........28 Intended Use........6.1.4 Test foods........28 Child, Vulnerable Person and Pet 7 Maintenance and Cleaning... 30 Safety ..........General Cleaning Information ..
  • Page 4: Safety Instructions

    1 Safety Instructions • This section includes the Intended Use safety instructions necessary • This product is designed to be to prevent the risk of personal used at home. It is not suitable injury or material damage. for commercial use. •...
  • Page 5: Electrical Safety

    • Children should not play with • Before discarding worn out the product. Cleaning and user and useless products: maintenance should not be 1. Unplug the power plug and performed by children unless remove it from the socket. there is someone overseeing 2.
  • Page 6 • Unplug the product or switch • Do not use an extension cord off the fuse before repair, or multi-plug to operate your maintenance and cleaning. product. • Plug the product into an outlet • Contact the authorized service that meets the voltage and fre- centre or importer to use the quency values specified on the approved adapter in cases...
  • Page 7: Transportation Safety

    • Never put the product plug into ial or thick cardboard and tape a broken, loose, or out-of- it tightly. Secure the moving socket plug. Make sure the parts of the product firmly to plug is fully inserted into the prevent damage.
  • Page 8: Safety Of Use

    • To avoid overheating, product • Do not use the product if the installation should not be car- front door glass is removed or ried out behind decorative cov- cracked. Otherwise there is a ers. risk of injury and environ- •...
  • Page 9: Accessory Use

    • Do not place flammable / ex- since it can ignite when it plosive materials near the comes into contact with hot product, as the surfaces will be surfaces. hot while it is operating. • Food residues in the cooking •...
  • Page 10: Maintenance And Cleaning Safety

    greaseproof paper that hang the food oil and other compon- from accessories or contain- ents that drip onto the oven ers. Do not use greaseproof bottom can create heavy paper at oven temperatures smoke and lead to flames. higher than the maximum us- •...
  • Page 11: Environmental Instructions

    2 Environmental Instructions 2.1 Waste Directive aging waste with the household or other wastes, take it to the packaging material 2.1.1 Compliance with the WEEE Dir- collection points designated by the local ective and Disposing of the authorities. Waste Product 2.3 Recommendations for Energy This product complies with EU WEEE Dir- Saving...
  • Page 12: Your Product

    3 Your product 3.1 Product Introduction 1 Control panel 2 Lamp 3 Wire shelves 4 Fan motor (behind the steel plate) 5 Door 6 Handle 7 Lower heater (under the steel plate) 8 Shelf positions 9 Upper heater 10 Ventilation holes 3.2 Product Control Panel Introduc- Varies depending on the model.
  • Page 13: Control Panel

    3.2.1 Control Panel 1 Function selection knob 2 Timer 3 Temperature knob If there are knob(s) controlling your Timer product, in some models this/these knob(s) may be so that they come out when pushed (buried knobs). For settings to be made with these knobs, first push the relevant knob in and pull out the knob.
  • Page 14: Product Accessories

    order of the operating modes shown here may differ from the arrangement on your product. Function Temperature Function description Description and use symbol range (°C) Oven lamp No heater works in the oven. Only the oven lamp lights up. The oven is not heated. Only the fan (on the back wall) oper- ates.
  • Page 15: Use Of Product Accessories

    On models without wire shelves : Deep tray It is used for pastries, frying large pieces, Placing the wire grill on the cooking juicy food or for the collection of flowing shelves oils when grilling. On models with wire shelves : It is crucial to place the wire grill on the wire side shelves properly.
  • Page 16 Placing the tray on the cooking shelves On models with wire shelves : On models with wire shelves : It is also crucial to place the trays on the wire side shelves properly. While placing the tray on the desired shelf, its side de- signed for holding must be on the front.
  • Page 17 the pins on the front and back of the tele- scopic rails, rest against the edges of the grill and the tray (shown in the figure). EN / 17...
  • Page 18: Technical Specifications

    3.6 Technical Specifications General specifications Product external dimensions (height/width/depth) (mm) 595 /594 /567 Oven installation dimensions (height / width / depth) 590-600 /560 /min. 550 (mm) Voltage/Frequency 220-240 V ~; 50 Hz Cable type and section used/suitable for use in the min.
  • Page 19: First Use

    4 First Use Before you start using your product, it is re- If the first timer is not set, “12:00” commended to do the following stated in symbol continue to flash the following sections respectively. and your oven will not start. For your oven to function, you must 4.1 First Timer Setting confirm the time of day by setting...
  • Page 20: Using The Oven

    NOTICE: During the first use, smoke and odour may come up for several hours. This is normal and you just need good ventila- tion to remove it. Avoid directly inhaling the smoke and odours that form. 5 Using the Oven •...
  • Page 21 Turning on the oven Cooking by setting the cooking time: When you select a operating function you You can have the oven turn off automatic- want to cook with the function selection ally at the end of the time by selecting the knob and set a certain temperature with the temperature and operating function spe- temperature knob, the oven starts operat-...
  • Page 22: Settings

    5. After the set cooking time is completed, Deactivating the key lock on the display, "End" appears, the 1. Touch the key until the symbol disap- symbol flashes and the timer beeps. pears from the display. 6. The warning sounds for two minutes. ð...
  • Page 23 Turning off the alarm 2. Set the desired brightness with the keys. (d-01-d-02-d-03) 1. At the end of the alarm period, the warn- ing sounds for two minutes. Touch any key to stop the audible warning. ð The warning stops and the time of day appears on the display.
  • Page 24: General Information About Baking

    6 General Information About Baking You can find tips on preparing and cooking • For good baking performance, place your your food in this section. food on the recommended correct shelf. Do not change the shelf position during Plus, this section describes some of the baking.
  • Page 25 • If the cake is moist, use a small amount • If the pastry is getting cooked slowly, of liquid or reduce the temperature by make sure that the thickness of the 10°C. pastry you have prepared does not over- •...
  • Page 26 Food Accessory to be Operating func- Shelf position Temperature (°C) Baking time used tion (min) (approx.) Whole bread Standard tray * Fan Heating 30 … 40 Glass / metal rectangular con- Top and bottom Lasagne 2 or 3 30 … 40 tainer on wire grill heating Round black...
  • Page 27: Meat, Fish And Poultry

    Food Accessory to be Shelf position Temperature (°C) Baking time (min) used (approx.) Small cakes Standard tray * 30 … 40 Cookie Standard tray * 30 … 40 Pastry Standard tray * 40 … 50 Standard tray * 30 … 40 * These accessories may not be included with your product.
  • Page 28: Grill

    Preheating is recommended for all food. *These accessories may not be included with your product. **These accessories are not included with your product. They are commercially available accessories. 6.1.3 Grill The key points of the grill • Prepare foods of similar thickness and Red meat, fish and poultry meat quickly weight as much as possible for the grill.
  • Page 29 Cooking table for test meals Suggestions for baking with a single tray Food Accessory to be Operating func- Shelf position Temperature (°C) Baking time used tion (min) (approx.) Shortbread (sweet Top and bottom Standard tray * 20 … 30 cookie) heating On models with wire shelves :3...
  • Page 30: Maintenance And Cleaning

    Grill Food Accessory to be Shelf position Temperature (°C) Baking time (min) used (approx.) Meatball (veal) - 12 Wire grill 20 … 30 amount Toast bread Wire grill 1 … 4 It is recommended to preheat for 5 minutes for all grilled food. Turn pieces of food after 1/2 of the total grilling time.
  • Page 31: Cleaning Accessories

    • The oven must cool down before clean- Plastic parts and painted surfaces ing the cooking area. Cleaning on hot sur- • Clean plastic parts and painted surfaces faces shall create both fire hazard and using dishwashing detergent, warm wa- damage the enamel surface.
  • Page 32: Easy Steam Cleaning

    If your product is a wire shelf model, re- move the wire shelves before cleaning the side walls. Then complete the cleaning as described in the "General Cleaning Informa- tion" section according to the side wall sur- face type. To remove the side wire shelves: 1.
  • Page 33: Cleaning The Oven Door

    6. (C) type hinge is available in soft open- ing/closing door types. 7.6 Cleaning the Oven Door You can remove your oven door and door glasses to clean them. How to remove the doors and windows is explained in the sec- tions "Removing the oven door”...
  • Page 34: Cleaning The Oven Lamp

    crucial to place the lower corners of the innermost glass (1) to meet the lower plastic slots. 7. Push the plastic component towards the frame until a "click” sound is heard. 7.8 Cleaning the Oven Lamp In the event that the glass door of the oven lamp in the cooking area becomes dirty;...
  • Page 35: Troubleshooting

    3. If your oven lamp is type (A) shown in the figure below, rotate the oven lamp as shown in the figure and replace it 3. Lift the lamp's protective glass cover with a new one. If it is type (B) model, with a screwdriver.
  • Page 36 • (If there is timer on your appliance) Keys on the control panel do not work. >>> If your product has a key lock, the key lock may be enabled, disable the key lock. Oven light is not on. • Oven lamp may be faulty. >>> Replace oven's lamp.
