- Page 1 Operating Manual FORCECUT 62i 60AMP Plasma Cutter 110v/220v...
- Page 2 FORCECUT 62i- 60 AMP Plasma cutter 110v/220v Preface This manual includes hardware description and operation introduction of the equipment. For your and other people’s safety, please read the manual carefully. Pay attention Pay attention to the words after the signs below.
-
Page 3: Table Of Contents
FORCECUT 62i- 60 AMP Plasma cutter 110v/220v Content 1 Safety warning......................1 2 Product........................5 2.1 Introduction......................5 2.2 Technical data ....................6 3 Installation ........................7 4 Operation ........................9 5 INSTRUCTION NOTES ...................10 5.1 Operation environment ...................10 5.2 SAFTY.......................10 5.3 CUTTING NOTES .....................11 6 MAINTENANCE AND CHECK TROUBLE ..............11 Maintenance ....................11... -
Page 4: Safety Warning
FORCECUT 62i- 60 AMP Plasma cutter 110v/220v 1 Safety warning The safety notes listed in this manual is to ensure correct use of the machine and to keep you and other people from being hurt. The design and manufacture of welding machine considers safety. Please refer to the safety warning listed in the manual to avoid accidents. - Page 5 FORCECUT 62i- 60 AMP Plasma cutter 110v/220v Please follow the rules below to avoid heavy accidents. Never use the equipment to do other things but welding. Follow related regulations for the construction of the input-driven power source, choice of place, ...
- Page 6 FORCECUT 62i- 60 AMP Plasma cutter 110v/220v Never operate in degrease, washing or spray space. Using breathe preventive facilities when weld shielded steel for it will cause poisonous dust and gas. The arc, spark, residue and noise are harmful to health, please wear protective appliance.
- Page 7 FORCECUT 62i- 60 AMP Plasma cutter 110v/220v Ensure fastness and insulation when lifting the wire feeder through the swing ring for welding. Electromagnetic interference needing attention. It may need extra preventive measures when the equipment is used in particular location.
-
Page 8: Product

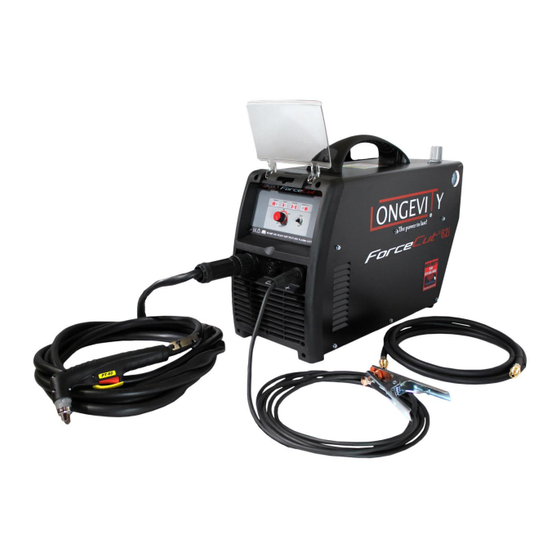

FORCECUT 62i- 60 AMP Plasma cutter 110v/220v 2 Product 2.1 Introduction Congratulations for your purchase. FORCECUT60i are made by international most advantaged invert technology .50/60Hz frequency is inverted to high frequency (frequency is over 100KHz) by V-MOSFET, then reduce voltage and commute current,inverter power supply generates powerful DC welding current through PWM technology. -
Page 9: Technical Data
FORCECUT 62i- 60 AMP Plasma cutter 110v/220v 2.2 Technical data Model FORCECUT60i Parameters Power voltage （V） 1 phase 110V±15% 1 phase 220V±15% Frequency（Hz） 50/60 Rated input current（A） 48.6 No-load voltage（V） Output current （A） 20-30 20-60 Output voltage (V) Duty cycle（%）... -
Page 10: Installation
FORCECUT 62i- 60 AMP Plasma cutter 110v/220v 3 Installation Input cable connection (enclose installing diagram) 1. Every machine has been disposed a power cable which must be connected to coordinated voltage class in compliance according to input voltage of cutting machine .If cutting machine whose power voltage is 110V or 220V is connected wrong to AC 380V, that will cause components of inter-machine are burned up. - Page 11 FORCECUT 62i- 60 AMP Plasma cutter 110v/220v Installation diagram AC 110/220V Air compressor Earth clamp Workpiece Cutting torch...
-
Page 12: Operation
FORCECUT 62i- 60 AMP Plasma cutter 110v/220v 4 Operation Central switch socket 10 Air inlet 11 Power switch 12 Power cord The panel picture above is for reference only. If any difference with the real machine, please follow with the real machine. -
Page 13: Instruction Notes
FORCECUT 62i- 60 AMP Plasma cutter 110v/220v 5 INSTRUCTION NOTES 5.1 Operation environment 1. The cutting machine can perform in env ironment where conditions are particularly harsh and with outside temperature between –10 and +40 degrees centigrade with a dampness level of max 80%. -
Page 14: Cutting Notes
FORCECUT 62i- 60 AMP Plasma cutter 110v/220v will cause-cutting machine will stop working suddenly and inter red diode is lit. User need not break the circuit and the fan may continue working in order to cool down the machine. Once temperature is reduced to allowable arrange, machine can be operated again. -
Page 15: Check Fault
FORCECUT 62i- 60 AMP Plasma cutter 110v/220v 6.2 Check Fault Faults Resolvable Methods 1. Switch indicator is on, fan is not working 1. Over voltage protection is working. Close machine and control knob is out of work. then Open it again after several minutes.
