- Page 1 Quick Start Guide 2/4 Port 4K Dual View KVMP Switch with HDMI Connection, USB 3.0 Hub and Audio ® GCS1942H/GCS1944H PART NO. Q1647/Q1648 www.iogear.com...
-
Page 2: Package Contents

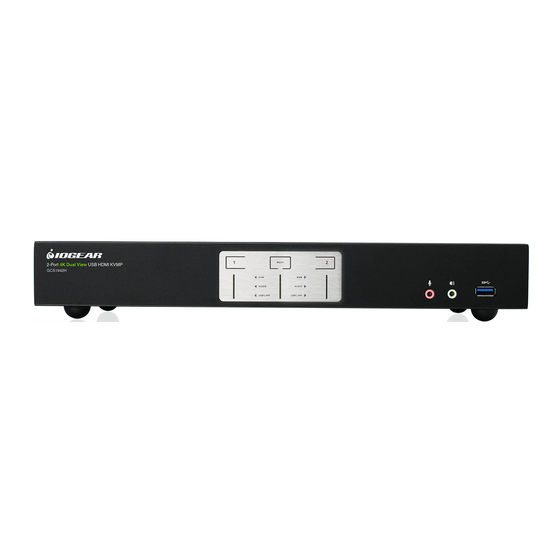

Package Contents GCS1942H GCS1944H 1 x GCS1942H 1 x GCS1944H 4 x HDMI Cables 8 x HDMI Cables 2 x USB 3.0 Cables 4 x USB 3.0 Cables 2 x Audio Cable Sets 4 x Audio Cable Sets 1 x Remote Control Switch... - Page 3 Overview GCS1942H Front View MODE 2-Port 4K Dual View USB HDMI KVMP GCS1942H AUDIO AUDIO USB LINK USB LINK GCS1942H Rear View Port selection pushbuttons Port LEDs Audio Ports USB 3.0 Hub Console Ports KVM Ports Power Jack Remote Switch Port...
- Page 4 GCS1944H Front View 4-Port 4K Dual View USB HDMI KVMP GCS1944H GCS1944H Rear View...
-
Page 5: Hardware Installation
Hardware Installation 1. Ground the GCS1942H/GCS1944H by connecting one end of a grounding wire to the Grounding Terminal and the other end to a suitable grounding object. 2. Connect the USB keyboard and mouse to the GCS1942H/GCS1944H console ports 3. Connect the two HDMI monitors to the GCS1942H/GCS1944H console ports 4. -
Page 8: Operation
Switching between connected computer sources: a. Manual – involves pressing the port selection pushbuttons located on the GCS1942H/GCS1944H’s front panel. b. Hotkey – involves entering combinations from the keyboard (list of complete Hotkey Settings is available in the manual, located on our website). -
Page 9: Emc Information
EMC Information FEDERAL COMMUNICATIONS COMMISSION STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 10: Limited Warranty
Serial Number Contact WE’RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT? Make sure you: 1. Visit www.iogear.com for more product information 2. Visit www.iogear.com/support for live help and product support IOGEAR iogear.custhelp.com support@iogear.com www.iogear.com © 2021 IOGEAR...
