Summary of Contents for IOGear GCS1808i
- Page 1 Quick Start Guide 8/16-Port IP Based KVM GCS1808i / GCS1816i PART NO. Q1315 / Q1316 www.iogear.com...
- Page 2 Package Contents 1 x GCS1808i / GCS1816i IP Base KVM 2 x Custom KVM Cable Sets (1 x PS/2; 1 x USB) 1 x Console Cable 1 x Firmware Upgrade Cable 1 x Foot Pad Set (4 pcs) 1 x Power Adapter...

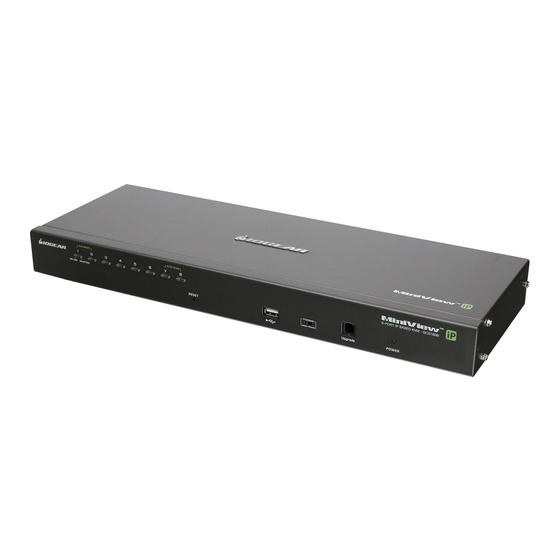

- Page 3 Overview Front View: 1. Port Selection Switches and LEDs 2. Reset Switch 3. USB Port 4. Firmware Upgrade Recovery Switch 5. Firmware Upgrade Port 6. Power LED GCS1808i GCS1816i...
- Page 4 Overview Rear View: 1. KVM Port Section 2. Grounding Terminal 3. Cable Tie Slot 4. Power Jack 5. LAN Port 6. Console Port GCS1808i GCS1816i...
- Page 5 To set up a single station installation refer to the diagram, and do the following: 1. Ground the GCS1808i / GCS1816i by connecting one end of the grounding wire provided with your switch to the grounding terminal, and the other end of the wire to a suitable grounded object.
- Page 6 Operation Port Selection GCS1808i / GCS1816i installation provides three methods to obtain instant access to any computer in your installation: Manual For manual port selection, simply press the Port Selection Switch that corresponds to the device you wish to access.
-
Page 7: Hotkey Summary Table
2. The Minus (or F12) key must be released within one half second, otherwise Hotkey invocation is automatically cancelled. Hotkey Summary Table The following table summarizes Hotkey operations on the GCS1808i / GCS1816i: [A] [Enter] Invokes Auto Scan mode. When Auto Scan mode is in effect, [P] or left-click pauses auto- scanning. - Page 8 IP address when you log in. for example: 192.168.0.60/GCS1816i 2. The GCS1808i / GCS1816i default setting is for DHCP if it fails to find a DHCP server, after one minute it uses a default IP Address: 192.168.0.60.
- Page 9 Note: For complete instructions, please download the user manual from www.iogear.com/support/dm or refer to the included installation CD. Compliance Information FCC Statement This product has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These...
- Page 10 NEED ASSISTANCE SETTING UP THIS PRODUCT? Make sure you: 1. Visit www.iogear.com for more product information 2. Visit www.iogear.com/support for live help and product support Warranty Information This product carries a 3 Year Limited Warranty. For the terms and conditions of this warranty, please go to http://www.iogear.com/sup- port/warranty Register online at http://www.iogear.com/register...
