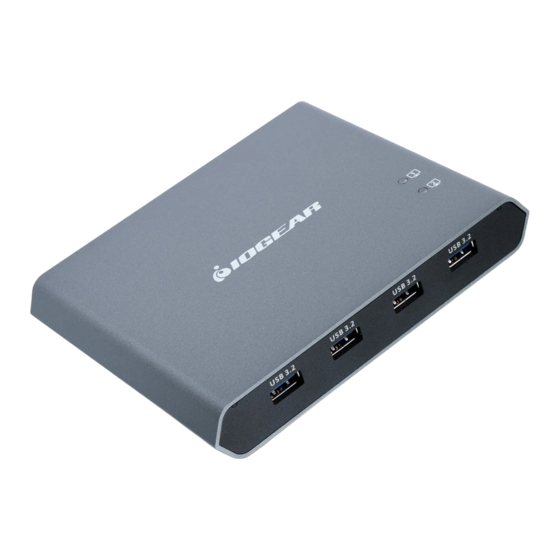

- Page 1 Quick Start Guide 2-Port 4K USB-C Desktop KVM with DisplayPort ™ output and USB peripheral GCS1602CC PART NO. Q1732 www.iogear.com...
-
Page 2: Package Contents
Package Contents 1 x 2-Port 4K USB-C KVM with USB Peripheral 2 x USB-C to USB-C Cable 1 x Remote Port Selector 1 x Power Adapter 1 x Quick Start Guide 1 x Warranty Card System Requirements Host Devices • USB-C enabled devices with DP-Alt Mode over USB-C Console •... - Page 3 Overview A. 4 x USB 3.0 Type A Port for peripheral sharing B. Remote port selector jack C. DisplayPort video output up to 3840 x 2160 @60Hz D. KVM (USB-C) Port 2 E. KVM (USB-C) Port 1 with power delivery pass through PD1.3 compliance F.
-
Page 4: Hardware Installation
Hardware Installation 1. Connect the USB keyboard and mouse to the GCS1602CC USB Type A ports at front panel 2. Connect the DisplayPort monitor to the GCS1602CC DisplayPort output port at rear panel. 3. Connect the included USB-C cable from your USB-C computer to Port 1 4. -
Page 5: Hardware Installation Diagram
Hardware Installation Diagram *The included AC adapter is required for operation *Laptop USB-C power adapter is optional and is not included... -
Page 6: Operation
3 seconds to switch between 2 lane DP and 4 lane DP modes. The port 1 and port 2 status LEDs flash once to indicate the GCS1602CC is switched to 2 lane mode, and flash twice to indicate the GCS1602CC is switched to 4 lane mode. -
Page 7: Limited Warranty
Important Product Information Product Model___________________ Serial Number___________________ Contact WE’RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT? Make sure you: 1. Visit www.iogear.com for more product information 2. Visit www.iogear.com/support for live help and product support IOGEAR https://iogear.custhelp.com support@iogear.com www.iogear.com... -
Page 8: Compliance Information
Compliance Information Federal Communications Commission (FCC) Statement: This equipment has been tested and found to comply within the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
