2 Mechanical assembly

There are two versions of VISUAL POINT: 24VDC and 115-230VAC.
Before connecting the instrument, check the supply voltage with maximum safety.

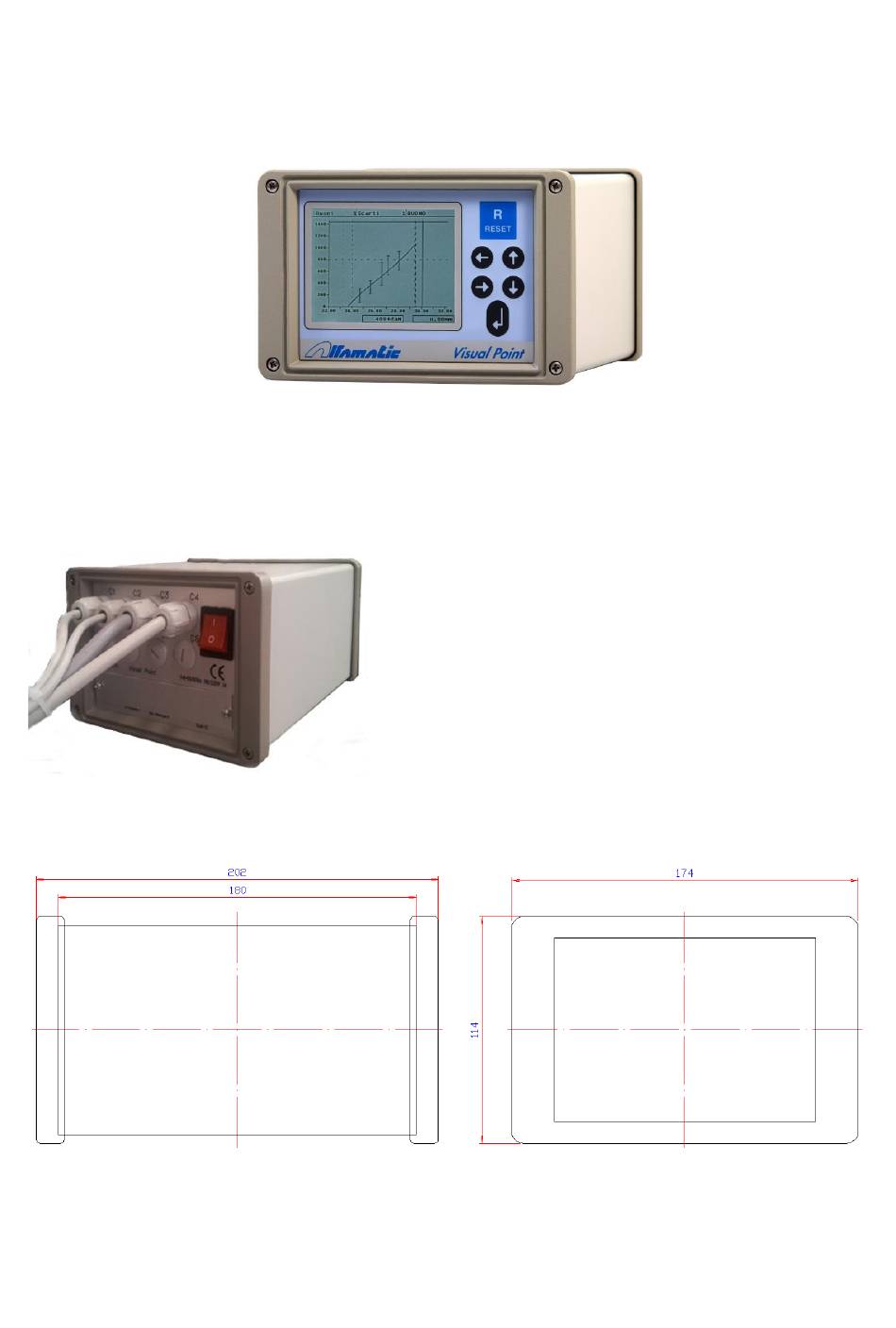

2.1 Dimensions

Measurements in millimeters.
Figure1
Version for external mounting
To the indicated depth it is necessary to add the
overall dimensions of the cables of at least 80mm.
6
