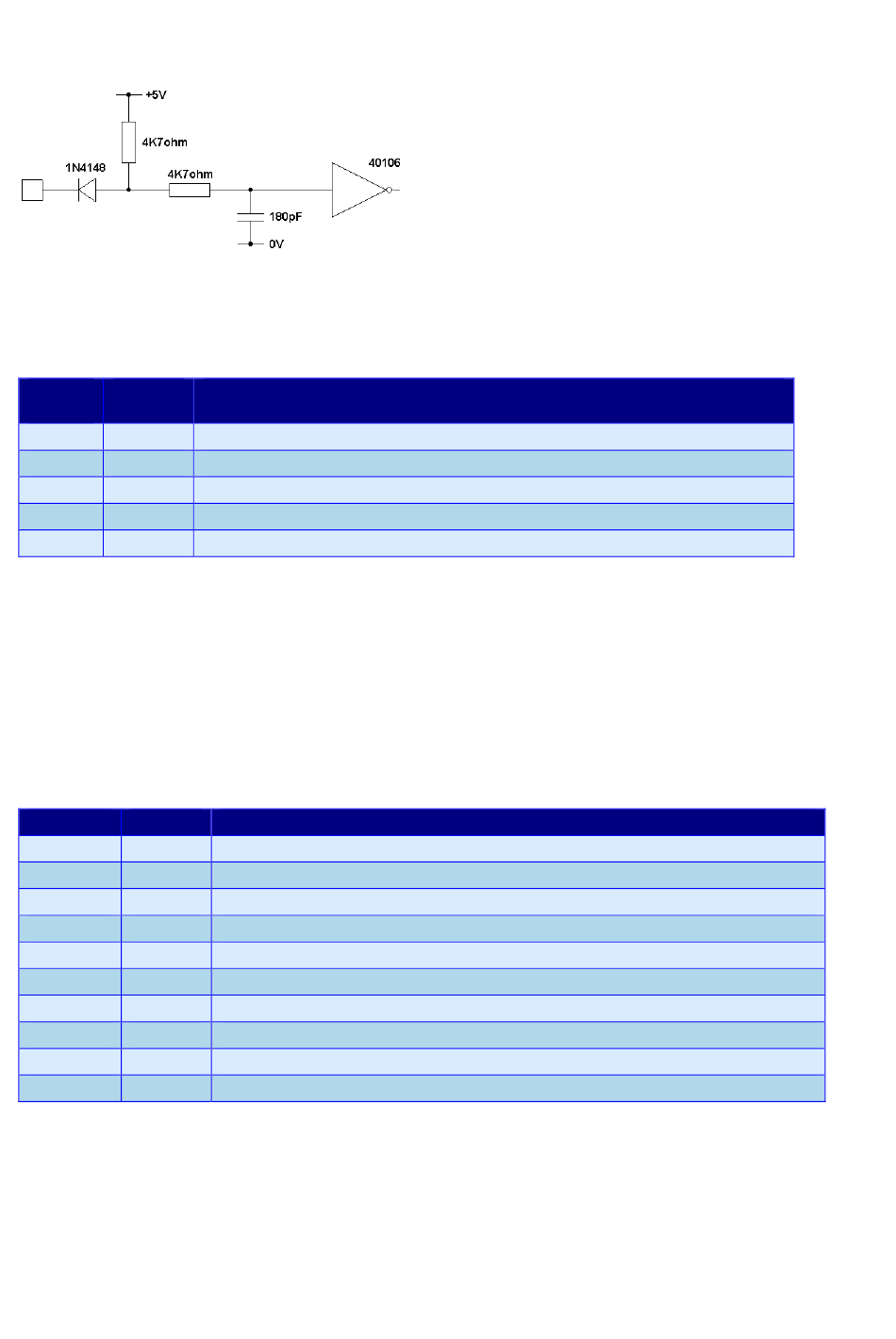

Electrical characteristics of terminal X12.1, X12.2 and X12.3:
3.1.7 Load cell terminal block (X11)
Input for resistive bridge load cell with sensitivity of 2mV/V.
3.81mm pitch terminal block.
First
clamp
name
IN+
X11.1
IN-
X11.2
0VL
X11.3
0V
X11.4
+10V
X11.5
Electrical characteristics of terminal X11.5:
Output voltage
Continuous output current
Protections
It is very important that the unshielded end of the load cell cable be as short as possible:
3.1.8 Analog output terminal block (X10 )
3.81mm pitch terminal block.
Name
clamp
NU
X10.1
NU
X10.2
NU
X10.3
NU
X10.4
NU
X10.5
NU
X10.6
NU
X10.7
0V
X10.8
ANA1
X10.9
ANA2
X10.10
Description
Positive input
Negative input
Shielded cable braiding
Power ground
Positive feeding
Description
Do not connect
Do not connect
Do not connect
Do not connect
Do not connect
Do not connect
Do not connect
Analog output ground
Analog output 1 0-10V
Analog output 2 0-10V
10V ±10%
60mA
Current, Temperature
12
