ICP DAS USA I-8213W-4G Series User Manual

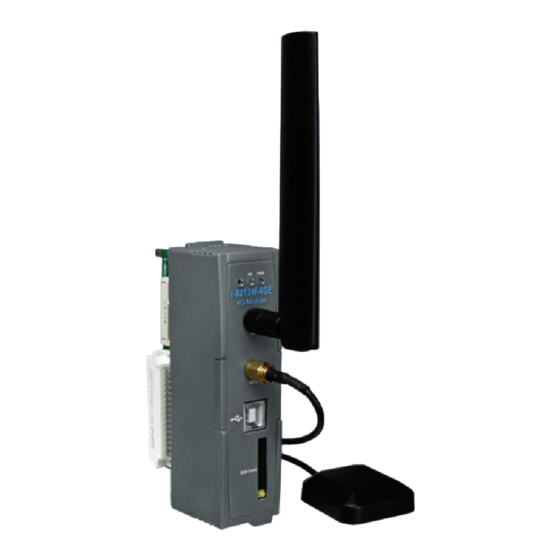

Industrial 4g module
Hide thumbs Also See for I-8213W-4G Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Industrial 4G module
I-8213W-4G Series
User Manual
Version 1.3 AUG 2023
Service and usage information for
I-8213W-4GE/I-8213W-4GC
Written by Sean
Edited by Anna Huang

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I-8213W-4G Series and is the answer not in the manual?

Questions and answers

Related Manuals for ICP DAS USA I-8213W-4G Series

Summary of Contents for ICP DAS USA I-8213W-4G Series

  • Page 1 Industrial 4G module I-8213W-4G Series User Manual Version 1.3 AUG 2023 Service and usage information for I-8213W-4GE/I-8213W-4GC Written by Sean Edited by Anna Huang...
  • Page 2 Warranty All products manufactured by ICP DAS are under warranty regarding defective materials for a period of one year, beginning from the date of delivery to the original purchaser. Warning ICP DAS assumes no liability for any damage resulting from the use of this product.

  • Page 3: Table Of Contents

    Contents 1. Introduction ......................4 2. Hardware Specifications ..................5 2.1. Specifications....................6 2.2. I-8213W-4G Features ...................8 3. Application architecture ...................9 4. Hardware Appearance ....................10 4.1. Hardware Dimensions ..................11 4.2. LED indicators ....................12 4.3. Hardware Installation ..................13 5. USB Driver Installation ....................14 5.1. Example: XP-8000 (Microsoft Windows OS) ..........14 5.2.

  • Page 4: Introduction

    1. Introduction The I-8213W-4G series are industrial grade 4G LTE modules with GPS. While I-8213W-4GE supports FDD LTE B1/B3/B5/B7/B8/B20 bands, I-8213W-4GC supports FDD LTE B1/B3/B8 and TDD LTE B38/B39/B40/B41 bands. For WCDMA, the I-8213W-4G supports 850/900/2100 MHz as well as GSM 850...

  • Page 5: Hardware Specifications

    2. Hardware Specifications...

  • Page 6: Specifications

    2.1. Specifications Models I-8213W-4GE I-8213W-4GC 4G System Frequency Band(FDD) B1/B3/B5/B7/B8/B20 B1/B3/B8 Frequency Band(TDD) B38/B39/B40/B41 3G System Frequency 850/900/2100 MHz 900/2100 MHz Band(WCDMA) Frequency 1900/2100 MHz Band(TDSCDMA) GSM/GPRS System Frequency Band 850/900/1800/1900 MHz 900/1800MHz GPRS class 33; GPRS class 12; GPRS connectivity GPRS station class B GPRS station class B GPRS (Kbps):...
  • Page 7 Support Channels Protocol Support NMEA 0183 LED Indicators Power Red color GPRS Yellow color Power Frame Ground ESD, Surge, EFT, Hi-Pot Protection Idle: 0.15 A @ 5 VDC; Data Link: 0.2 ~ 1.62 A (peak) @ 5 Power Consumption Mechanical Casing Plastic Dimensions (W x L x H)

  • Page 8: I-8213W-4G Features

    2.2. I-8213W-4G Features The I-8213W-4GE supports FDD LTE B1/B3/B5/B7/B8/B20 bands while the I-8213W-4GC supports FDD LTE B1/B3/B8 and TDD LTE B38/B39/B40/B41 bands. 850/900/2100 MHz is supported by the WCDMA and 850 MHz is supported by GSM, EGSM 900 MHz, DCS 1800 MHz, PCS 1900 MHz.

  • Page 9: Application Architecture

    3. Application architecture Application 1 Application 2...

  • Page 10: Hardware Appearance

    4. Hardware Appearance Pin Assignments ⚫ USB Port...

  • Page 11: Hardware Dimensions

    4.1. Hardware Dimensions...

  • Page 12: Led Indicators

    4.2. LED indicators There are two LED indicators to help users to judge the various conditions of I-8213W-4G. The description is as follows： A. PWR(Red)：The PWR LED can indicate the status of Power module. Power normal Power fail Always ON Always OFF B.

  • Page 13: Hardware Installation

    4.3. Hardware Installation I-8213W-4G ⚫ Installation I-8213W-4GE/4GC USB Cable (CA-USB18) SIM Card 1. Install the I-8213W-4G on the host computer. 2. Insert SIM card 3. Connect USB ⚫ Antenna Installation USB Port...

  • Page 14: Usb Driver Installation

    5. USB Driver Installation 5.1. Example: XP-8000 (Microsoft Windows OS) Step 1：Double Click “I-8213W-4G USB driver V1.00.exe” to install the driver. Step 2：Click “Next”.
  • Page 15 Step 3：Click “Next” Step 4：Select “Install”...
  • Page 16 Step 5：Click “Finish” Step 6：Connect the USB of I-8213W-4G with the PC Step 7：The “Found New Hardware Wizard” window for “Quectel LTE Module” will pop-out. Please click “Next”.
  • Page 17 Step 7-1：Click “Continue Anyway”. Step 7-2：Click “Finish” if you got a success message.
  • Page 18 Step 7-3：Click “Back” if you got a fail message, and then choose “Install from a list or specific location” in all install steps.
  • Page 19 Step 7-4：Click “Browse” to choose your installing folder, and Click “Next”. Step 8：The “Hardware Installation” window for “I-8213W-4G Wireless Ethernet Adapter” will pop-out. Please click “Continue Anyway”. Step 9：The “Hardware Installation” window for “I-8213W-4G USB AT Port” will pop-out. Please click “Continue Anyway”.
  • Page 20 Step 10：The “Hardware Installation” window for “I-8213W-4G USB NMEA Port” will pop-out. Please click “Continue Anyway”. Step 11：The “Hardware Installation” window for “I-8213W-4G USB DM Port” will pop-out. Please click “Continue Anyway”.
  • Page 21 Step 12：Finish the all install steps. Please open “Device manager”, and you will found new 8 items in your computer.

  • Page 22: Example: Linpac (Linux Os)

    5.2. Example: LinPAC (Linux OS) ⚫ i-8213W-4G Driver Installing Linux can install the driver module “option” for I-8213W-4G.Please refer to the following Linux command steps. ”modprobe Step 1：Enter the option” command ”echo “2c7c 0125” > /sys/bus/usb-serial/drivers/option1/new_id” Step 2：And Step 3：After the installation is complete, ttyUSBn will be displayed.

  • Page 23: Gprs Connection

    6. GPRS connection...

  • Page 24: Example: Xp-8000 (Windows Embedded Standard 2009)

    6.1. Example: XP-8000 (Windows Embedded Standard 2009) ➢ Hardware requirement 1) I-8213W-4G 2) CA-USB18 USB CABLE 2) XP-8000...
  • Page 25 ➢ Create a new modem connection Step1. Control Panel → Double-click “Phone and Modem” Step2. View "Modems" Options → Tap "Properties" on "I-8213W-4G USB Modem".
  • Page 26 Step3. Check that the Maximum Port Speed in the Modem tab is 115200, if not, set it to 115200. Step4. Click “Query Modem” on the “Diagnostics” page, wait a few seconds to check if the value is read, if not, make sure the USB driver is correct first.
  • Page 27 Step5. In the "Advanced" tab, enter additional dialing commands as shown below: Note: The APN for GPRS is provided by your local carrier. Example: In Taiwan, enter: AT+CGDCONT=1, "IP", "INTERNET". In Mainland China: AT+CGDCONT=1, "IP", "CMNET". Step6. Click "OK...
  • Page 28 ➢ Create a new dial-up and networking connection Step1. Control Panel →Click “Network and Sharing Center” Step2. Click “Set up a new connection or network”...
  • Page 29 Step3. Select “Set up a dial-up connection” → Click “Next” Step4. Fill in the phone number in the "Dial Phone Number" field → Press "Next" to go to the next step. Note: The phone number is provided by your local telecom provider, e.g. *99# in Taiwan.
  • Page 30 Step5. Connecting, please wait Step6. Connecting to the network will test the connection status first.
  • Page 31 Step7. Confirm network connection.
  • Page 32 Step9. Control Panel → Network Connections → Click “Your GPRS’s name” → File → Properties Step10. General → Select ”Standard 19200 bps Modem” → Click “Configure”...
  • Page 33 Step11. Maximum speed(bps) → Select ”115200” → do not select “Enable hardware flow control “ → Click “OK”...
  • Page 34 Step12. Click “OK” Step13. Control Panel → Network Connections → Double-Click “Your GPRS’s name”...
  • Page 35 Step14. Click “Dial” Step15. If you connect to internet successfully, your toolbar have new logo Step16. You can Double-Click the new logo → Click “Details” → Get your IP address...

  • Page 36: Example: Linpac (Linux Os)

    &" to enable 2G/3G/4G. Step 3： After checking the IP address provided by the network provider, see if the "ppp0" network interface is active. I-8213W-4G Series User Manual version 1.3 Page：36 Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved. E-mail：service@icpdas.com...

  • Page 37: Quick Test Gps

    Path: CD:\ gprs_gsm_modem\I-8213W-4G\Software\XP-8000\GPSTest Step 3：Execute the tested software and select your AT port number of your XP-8000. Step 4：Type the command: AT+QGPS=1 I-8213W-4G Series User Manual version 1.3 Page：37 Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved. E-mail：service@icpdas.com...
  • Page 38 Step 5：Re-open the port (NMEA port) number, then you will get GPS data. I-8213W-4G Series User Manual version 1.3 Page：38 Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved. E-mail：service@icpdas.com...

  • Page 39: Example: Linpac (Linux Os)

    -e "AT+QGPS=1 \r\n" > /dev/ttyUSB2 > /dev/ttyUSB2 " Step 2：Input the command "cat /dev/ttyUSB1", the result is as follows, GPS information will be output continuously. I-8213W-4G Series User Manual version 1.3 Page：39 Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved. E-mail：service@icpdas.com...

  • Page 40: Revised Note

    Editor Date Description Version Eddie 2017-03-30 Release Eddie 2017-09-05 Update Hardware Specifications Eddie 2018-04-19 Update Dial-up Connection Patty 2023-08-09 Add LinPAC Example I-8213W-4G Series User Manual version 1.3 Page：40 Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved. E-mail：service@icpdas.com...
