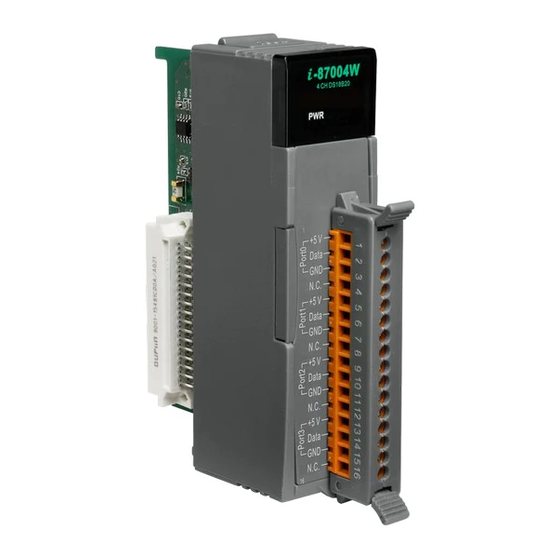

I-87004W User Manual
Version 1.0.1/ August 2017
I-87004W User Manual, v 1.0.1, Aug 2017
E-mail: service@icpdas.com
1
Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I-87004W and is the answer not in the manual?

Questions and answers

Related Manuals for ICP DAS USA I-87004W

Summary of Contents for ICP DAS USA I-87004W

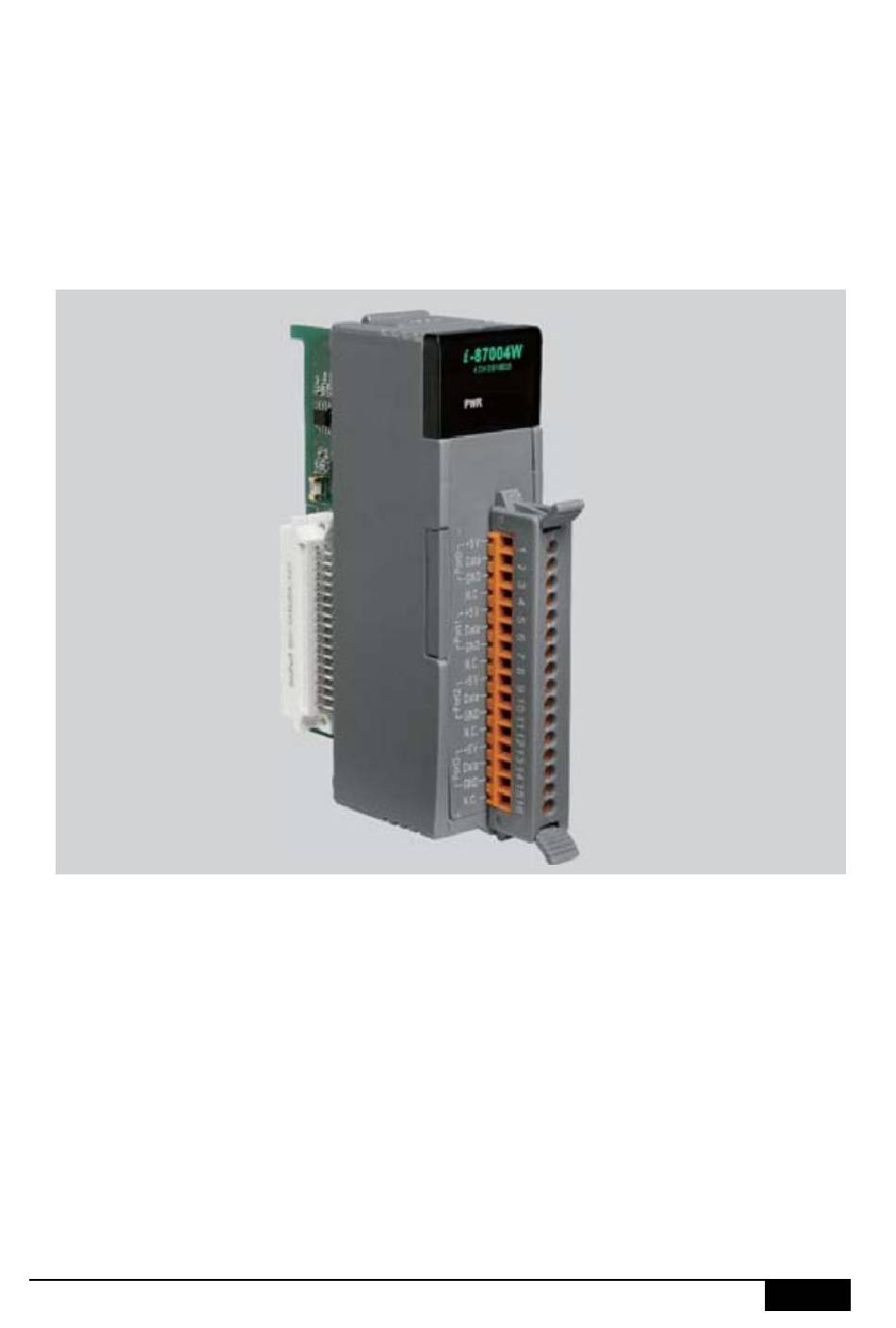

  • Page 1 I-87004W User Manual Version 1.0.1/ August 2017 I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.
  • Page 2 The names used for identification only may be registered trademarks of their respective companies. Contact Us If you have any problems, please feel free to contact us. Email: service@icpdas.com I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.

  • Page 3: Table Of Contents

    Chapter 2. Quick start ............12 Chapter 3. Using DS18B20 Temperature Sensor ....19 Chapter 4. DCON Command Sets ........24 I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.

  • Page 4: Chapter 1. Hardware

    + 85°C, with a total measurement range of between -55 and +125°C. Up to 20 DS18B20 sensors can be connected to each port on the I-87004W module in a daisy-chain arrangement with a maximum wiring distance of 100 meters. The I-87004W module is fully RoHS compliant, and features 4 kV ESD protection as well as 3000 VDC intra-module isolation.
  • Page 5 Applications Temperature Measurement  Environment Monitoring  Tunnel Monitoring  Building Monitoring  I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.

  • Page 6: Features

    1.2. Features I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.

  • Page 7: Specifications

    1.3. Specifications I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.

  • Page 8: Pin Assignment

    1.4. Pin Assignment I-87004W User Manual, v1.0.1, Aug 2017 Copyright © 2016 ICP DAS Co., Ltd. All Rights Reserved. E-mail: service@icpdas.com...

  • Page 9: Wiring

    1.5. Wiring I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.

  • Page 10: Block Diagram

    1.6. Block Diagram I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.

  • Page 11: Dimensions

    1.7. Dimensions Dimensions (Units: mm) I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.

  • Page 12: Chapter 2. Quick Start

    Chapter 2. Quick start I-87004W is a digital temperature sensor module that supports the DCON protocol. The host needs to use some DCON commands to configure and communicate with the I-87004W. ICP DAS provides the DCON Utility Pro program that can configure and test I-87004W without understanding any DCON command.
  • Page 13 For ICP DAS CE7 platform and ARM CPU PAC CD:\WinPAC_AM335x\Wp-5231\System_Disk\Tools \DCON_Utility_Pro http://ftp.icpdas.com.tw/pub/cd/winpac_am335x/wp-5231/syste m_disk/tools/dcon_utility_pro For ICP DAS WES platform PAC CD:\ XPAC\XPAC-Atom\tools\DCON_Utility_pro http://ftp.icpdas.com.tw/pub/cd/xpac-atom/tools/dcon_utility_pro/ I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.
  • Page 14 Step 2: Search and find the I-87004W module Select the correct COM Port and search: Find the I-87004W module, click the module name to enter configuration form I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.
  • Page 15 Step 3: Configure I-87004W using DCON Utility Pro To read temperature, each sensor must be assigned a channel index. The easiest way is to select Temperature tab and select “Assign all new sensor as default”. Then, you can read the temperature for all sensors.
  • Page 16 Select “Update new sensor” to manually assign sensor Select “Update assigned sensor” then you can read temperature reported by the sensor: I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.
  • Page 17 Excel .csv file. Then use can have more convenience to check, compare or re-assign sensor in many sensors conditions. I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.
  • Page 18 User can use the information saved in the file to check, compare and re-assign sensors between software and the sensors located in the field. I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.

  • Page 19: Chapter 3. Using Ds18B20 Temperature Sensor

    Chapter 3. Using DS18B20 Temperature Sensor The I-87004W provides four ports and up to 20 DS18B20 sensors can be connected to each port. Each DS18B20 has a unique 64-bit serial code, which can be represented by 16 characters in hexadecimal format. The user must know the serial code of each...
  • Page 20 Suppose that there are three DS18B20 sensors installed at location A, B, and C and they are connected to port 0 of an I-87004W. Followings are the procedure to configure the I-87004W. Refer to Chapter 2 and go through steps 1 and 2.
  • Page 21 B, and channel index 2 to read temperature at location C. Assigned channel index Serial Code Location 370008025B0C7010 EF0008025B23DE10 460008025AC79710 I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.
  • Page 22 4. Connect the new sensor to the port. 5. Select “Update new sensor” and you will see the new sensor as undefined sensor. I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.
  • Page 23 8. Select “Update assign sensor” and it will show the updated list of assigned sensors. Assigned channel index Serial Code Location 370008025B0C7010 EF0008025B23DE10 4A0008025ABFA110 I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.

  • Page 24: Chapter 4. Dcon Command Sets

    P: port number, 0 ~ 3 response > (sensor 0 reading in 0.01°C)(sensor 1 reading in 0.01°C)… (sensor last reading in 0.01°C) I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.
  • Page 25 @AACLP Clear all low latched temperature readings of a port to the current values P: port number, 0 ~ 3 I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.
  • Page 26 P: port number, 0 ~ 3 NN: sensor channel index in hex, 00 ~ 13 response > (sensor reading in 0.01°C) I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.
  • Page 27 NN: sensor index in the not assigned list in hex, 00 ~ 13 response !AA (16-character serial code), FFFFFFFFFFFFFFFF for no sensor I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.
  • Page 28 ~AARDVV set response delay time in ms, VV in hex format, 00 - 1E I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.
  • Page 29 10: even parity, 1 stop bit 11: odd parity, 1 stop bit Data Format Setting (FF) Bit 6 0: checksum disabled 1: checksum enabled I-87004W User Manual, v 1.0.1, Aug 2017 E-mail: service@icpdas.com Copyright © 2017 ICP DAS Co., Ltd. All Rights Reserved.
