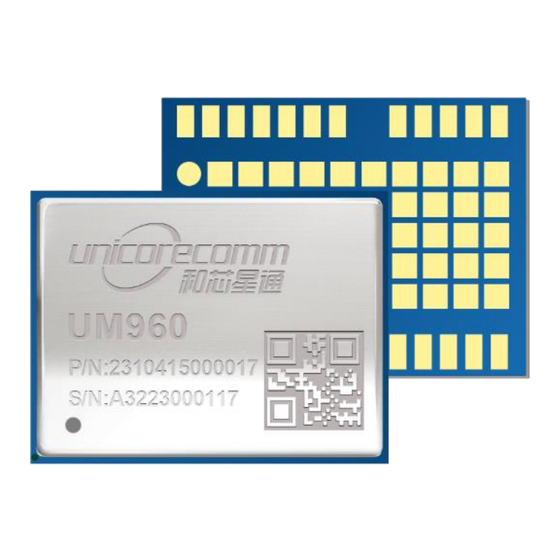

- Page 1 UM960 User Manual INSTALLATION AND OPERATION USER MANUAL WWW.UNICORECOMM.COM UM960 GPS/BDS/GLONASS/Galileo/QZSS All-constellation Multi-frequency High Precision RTK Positioning Module Copyright© 2009-2023, Unicore Communications, Inc. Data subject to change without notice.
- Page 2 UM960 User Manual Revision History Version Revision History Date R1.0 First release Sep., 2022 Add section 3.1 Recommended Minimal Design Optimize section 3.2 Antenna Feed Design R1.1 Jun., 2023 Optimize section 3.3 Power-on and Power-off Add section 3.5 Recommended PCB Package Design...
- Page 3 This manual does not represent, and in any case, shall not be construed as a commitments or warranty on the part of Unicore with respect to the fitness for a particular purpose/use, the accuracy, reliability and correctness of the information contained herein.
- Page 4 UM960 User Manual Foreword This document describes the information of the hardware, package, specification and the use of Unicore UM960 modules. Target Readers This document applies to technicians who possess the expertise on GNSS receivers.
-
Page 5: Table Of Contents
Contents Introduction .................... 1 1.1 Key Features ........................2 1.2 Key Specifications ......................2 1.3 Block Diagram ........................4 Hardware ....................5 2.1 Pin Definition ........................5 2.2 Electrical Specifications ....................8 2.2.1 Absolute Maximum Ratings ..................8 2.2.2 Operating Conditions ....................9 2.2.3 IO Threshold ......................... -
Page 6: Introduction
UM960 User Manual 1 Introduction UM960 is a new generation of GNSS high precision positioning RTK module from Unicore. It supports all constellations and multiple frequencies, and can simultaneously track BDS B1I/B2I/B3I/B1C/B2a + GPS L1/L2/L5 + GLONASS G1/G2+Galileo E1/E5a/E5b + QZSS L1/L2/L5 + SBAS. The module is mainly used in UAVs, lawn mower, handheld device, high precision GIS, precise agriculture, and intelligent drive. -
Page 7: Key Features
Key Features High precision, compact size and low power consumption Based on the new generation GNSS SoC -NebulasIV , with RF-baseband and high precision algorithm integrated 16.0 mm × 12.2 mm × 2.6 mm, surface-mount device Supports all-constellation multi-frequency on-chip RTK positioning solution ... - Page 8 UM960 User Manual Observation Accuracy（RMS） GLONASS Galileo B1I/ L1C/A /G1/E1 Pseudorange 10 cm 10 cm 10 cm 10 cm 1 mm 1 mm 1 mm 1 mm B1I/ L1C/A /G1/E1 Carrier Phase B2I/L2P/G2/E5b Pseudorange 10 cm 10 cm 10 cm...
-
Page 9: Block Diagram
RTK co-processor, which can fulfill the high precision baseband processing and RTK positioning independently. External Interfaces The external interfaces of UM960 include UART, I , PPS, EVENT, RESET_N, etc. Reserved interface, not supported currently. Introduction UC-00-M34 EN R1.1... -
Page 10: Hardware
UM960 User Manual 2 Hardware Pin Definition Figure 2-1 UM960 Pin Definition UC-00-M34 EN R1.1 Hardware... - Page 11 Table 2-1 Pin Definition Description Reserved, must be floating; cannot connect — ground or power supply or peripheral I/O Reserved, must be floating; cannot connect — ground or power supply or peripheral I/O Pulse per second, with adjustable pulse width and polarity Event Mark, with adjustable frequency and EVENT...
- Page 12 UM960 User Manual Description C clock TXD1 UART1 output RXD1 UART1 input When the main power supply VCC is cut off, V_BCKP supplies power to RTC and relevant register. Level requirement: 2.0 V ~ 3.6 V, and the working current is less than 60 μA at V_BCKP 25 °...
-
Page 13: Electrical Specifications
Electrical Specifications 2.2.1 Absolute Maximum Ratings Table 2-2 Absolute Maximum Ratings Parameter Symbol Min. Max. Unit Power Supply (VCC) -0.3 Voltage Input -0.3 GNSS Antenna Signal Input ANT_IN -0.3 ANT_IN input RF Input Power of Antenna power External LNA Power Supply VCC_RF -0.3 VCC_RF Output Current... -
Page 14: Operating Conditions
UM960 User Manual 2.2.2 Operating Conditions Table 2-3 Operational Conditions Parameter Symbol Min. Typ. Max. Unit Condition Power Supply (VCC) Maximum Ripple Voltage Working Current VCC = 3.3 V VCC_RF Output Voltage VCC_RF VCC-0.1 VCC_RF Output Current ICC_RF Operating Temperature °... -
Page 15: Dimensions
Dimensions Table 2-6 Dimensions Symbol Min.(mm) Typ. (mm) Max. (mm) 15.80 16.00 16.50 12.00 12.20 12.70 2.40 2.60 2.80 0.90 1.00 1.10 0.20 0.30 0.40 1.40 1.50 1.60 1.00 1.10 1.20 0.70 0.80 0.90 3.20 3.30 3.40 2.90 3.00 3.10 1.30 1.40 1.50... - Page 16 UM960 User Manual φ Figure 2-2 UM960 Mechanical Dimensions UC-00-M34 EN R1.1 Hardware...
-
Page 17: Hardware Design
3.3V ANT_BIAS V_BCKP RXD (UART) ANT_IN TXD (UART) RESET_N Figure 3-1 UM960 Minimal Design Remarks: L1: 68 nH RF inductor in 0603 package is recommended C1: 100 nF + 100 pF capacitors connected in parallel is recommended ... -
Page 18: Antenna Feed Design
UM960 User Manual Antenna Feed Design UM960 just supports feeding the antennal from the outside of the module rather than the inside. It is recommended to use devices with high power and that can withstand high voltage. Gas discharge tube, varistor, TVS tube and other high-power protective devices may also be used in the power supply circuit to further protect the module from lightning strike and surge. -
Page 19: Power-On And Power-Off
D2: TVS diode, choose the TVS diode with appropriate clamping specification according to the requirement of feed voltage and antenna voltage. Power-on and Power-off The VCC initial level when power-on should be less than 0.4 V. The VCC ramp when power-on should be monotonic, without plateaus. ... -
Page 20: Recommended Pcb Package Design
UM960 User Manual Recommended PCB Package Design See the following figure for the recommended PCB package design of the module UM960. 16.00 Solder Unit：mm Copper 1.10 3.00 1.10 1.00 0.91 1.00 0.76 Detail A Detail A 1.00 1.12 1.22 Detail B Detail B 0.51... -
Page 21: Production Requirement
4 Production Requirement Recommended soldering temperature curve is as follows: Rising Preheating Reflux Cooling ° C Peak 245 ° C 40 to 60s 60 to120s Max. 4° C/s Max. 3° C/s Time (s) Figure 4-1 Soldering Temperature (Lead-free) Temperature Rising Stage ... - Page 22 UM960 User Manual In order to prevent falling off during soldering of the module, do not solder it on the back of the board during design, that is, better not go through soldering cycle twice. The setting of soldering temperature depends on many factors of the factory, ...
-
Page 23: Packaging
Figure 5-1 Label Description Product Packaging The UM960 module uses carrier tape and reel (suitable for mainstream surface mount devices), packaged in vacuum-sealed aluminum foil antistatic bags, with a desiccant inside to prevent moisture. When using reflow soldering process to solder modules, please strictly comply with IPC standard to conduct temperature and humidity control. - Page 24 Thickness: 2.0 mm Carrier Tape Space between (center-to-center distance): 20 mm The UM960 is rated at MSL level 3. Refer to the relevant IPC/JEDEC J-STD-033 standards for the package and operation requirements. You may access to the website www.jedec.org to get more information.
- Page 25 和芯星通科技（北京）有限公司 Unicore Communications, Inc. 北京市海淀区丰贤东路 7 号北斗星通大厦三层 F3, No.7, Fengxian East Road, Haidian, Beijing, P.R.China, 100094 www.unicorecomm.com Phone: 86-10-69939800 Fax: 86-10-69939888 info@unicorecomm.com www.unicorecomm.com...
