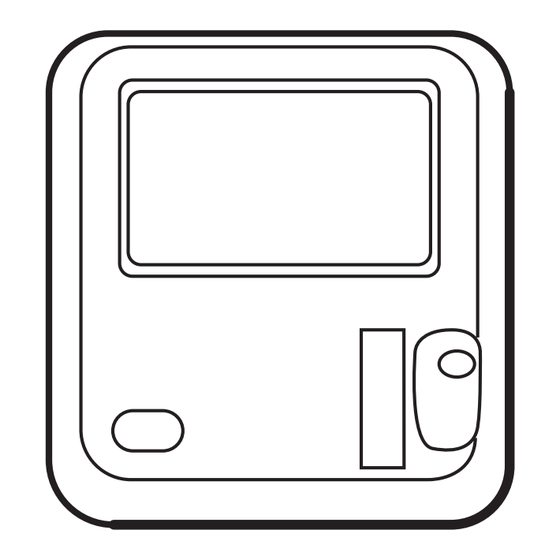

Hillrom Welch Allyn Spot Vital Signs 4400 Assembly Instructions Manual

Hillrom Technical Support
hillrom.com/en-us/about-us/locations/
Welch Allyn, Inc. is a subsidiary of Hill-Rom Holdings, Inc.
77794-M4400

Mounting hardware inventory

Use these items to mount the wall system:
• mounting rail bracket
• accessory bin bracket
• VESA mounting bracket (2 pieces)
• self-adhesive foam strips (2 pieces)
• screws

Tools list

Use these tools to mount the wall system:
• #2 Phillips screwdriver
• level
• tape measure
• stud finder
• drill
• 1/8-inch (3.17 mm) diameter drill bit for "B" screw pilot holes

Mounting location

CAUTION Before mounting the wall system, consider the following
recommendations and wall system details to determine the best mounting location:
• Mount the wall system to studs.
• Mount the wall system within reach of the AC power outlet.
The power cord is 8 ft. (2.44 m) long.
• Avoid brightly lit areas.
• Blood pressure tubing is 5 ft. (1.52 m) long.
• Position the wall system so that all instruments are accessible and in a location
that allows for ergonomic examinations.
CAUTION Welch Allyn is not responsible for the integrity of any wall mounting interface. Welch Allyn recommends that you contact your Biomedical
Engineering Department or maintenance service to ensure professional installation, safety, and reliability of any mounting accessory.
77794-2M4400
Spot Vital Signs 4400 Integrated Wall Panel
44WT
+
*
Only available in 44WT
A B C D
x2
x2
x1
x4
Sample room layout
1. Integrated Wall Panel
2. Examination table
Assembly Instructions
Mat. No. 750304, 80025712 Ver. B
© 2019 Welch Allyn, Inc. All rights reserved.
44XT
E
x4
Welch Allyn
®
hillrom.com
Revision date: 2019-12
