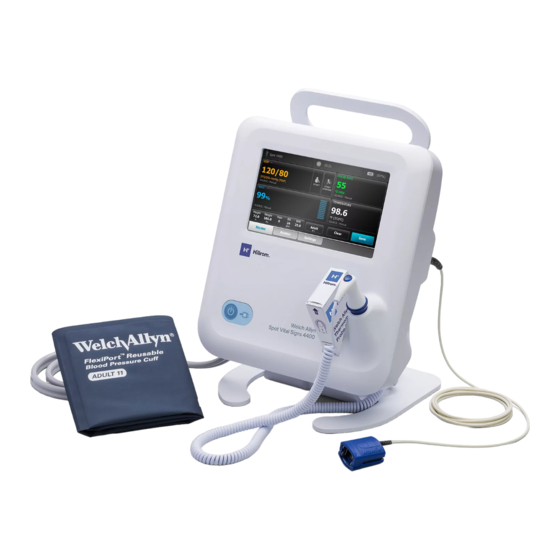

Hillrom Welch Allyn Spot Vital Signs 4400 Quick Reference

Hillrom Welch Allyn Spot Vital Signs 4400 Quick Reference

Hide thumbs Also See for Welch Allyn Spot Vital Signs 4400:

Advertisement

Quick Links

Power button

• Located on the device housing
• Powers up the device
• When the device is on, opens pop-up dialog with controls
to power down, enter sleep mode, or cancel out of the
power menu

Power down

1. Touch the power button.
2. Touch Power down.

Battery status

Charging
Approximate
operating time
remaining
NIBP measurement
Start/Stop
START
STOP
START
START
STOP
AVERAGE
Battery removed or
not holding a charge
Start average/Cancel/Skip
SKIP
START
CANCEL
SKIP
CANCEL
AVERAGE

Start an NIBP averaging program

The averaging program takes consecutive NIBP measurements within a
configurable amount of time. When the program is complete, the average
measurement is displayed in the Home tab.
1. Place the proper cuff around the patient's bare upper arm.
2. On the Home tab, touch Start Average.
3. If necessary, touch Skip to stop the current measurement. The
measurement restarts at the end of the countdown.
4. When averaging completes, touch Save to save the patient data, or touch
Clear to discard the data.

Results of an NIBP averaging program

NIBP AVERAGED
111/62
SYS/DIA mmHg ( 76 MAP )
TOTAL READINGS AVERAGED: 4
Displays the average of the readings.
Displays "NIBP AVERAGED."
Displays the readings taken by the program. A reading with a line
through it is excluded from the average.
Note To retain an NIBP average, touch Save.
Welch Allyn
Spot Vital Signs 4400
Quick reference
1. 120/80
2. 123/82
3. 110/64
4. 111/62
5. 108/61
6. 105/59
®
