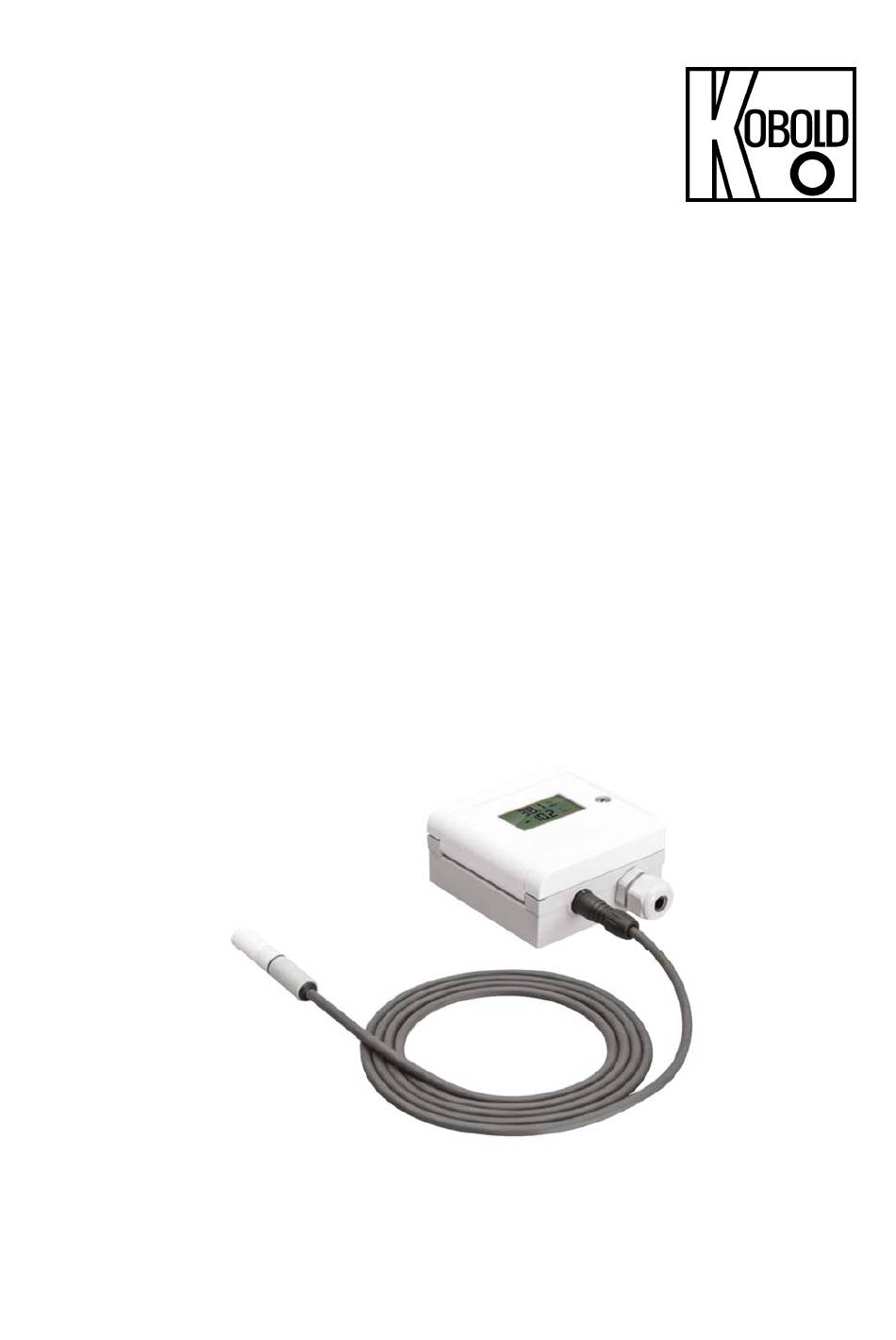

- Page 1 Operating Instructions Transmitter for Humidity and Temperature Measurement Model: AFB...
-
Page 2: Table Of Contents
Dimensions ....................10 Disposal ...................... 11 EU Declaration of Conformance ..............12 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 AFB K01/0923... -
Page 3: Note
Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 4: Regulation Use
Operating temperature Please note the maximum permissible ambient temperature for probe and housing when installing the sensor. When firmly connected the standard cable must not be exposed to an increased ambient temperature > +80°C. page 4 AFB K01/0923... -
Page 5: Electrical Connection
During the in situ alignment the sensor does not necessarily have to be taken out of the control circuit. We offer humidity standards for alignment of the sensors. Before calibrating the sensor, standards should remain at least 2 hours on the sensors. AFB K01/0923 page 5... - Page 6 RH 20...30°C humdity standard ZE31/1-75 temperature press button LED blinkt 4 x pro Sek. 1-point-adjustment DOWN 3 times shortly Confirmation of press button until LED lights up selection DOWN for at least permanently 3 sec. page 6 AFB K01/0923...
-
Page 7: Option: Transmitter With Usb Interface
7.2 Option: transmitter with USB interface General information: The following settings can be made using the „KOBOLD USB Configuration Software“ and a standard micro USB cable. The transmitter is powered via USB. Except for adjustments, the transmitter requires no power via a power supply unit. -
Page 8: Physical Measuring And Output Scaling
Absolute humidity [g/m3] 0 g/m3 ..100 g/m3 Wet bulb temperature [°C] / [°F] -10 °C ..50 °C 14 °F ..122 °F Temperature [°C] / [°F] -100 °C ..200 °C -148 °F ..392 °F page 8 AFB K01/0923... - Page 9 Attention: see warning concerning galvanic isolation chapter 7.2 Information: The measuring accuracies specified in the technical data refer exclusively to factory adjustments. The adjustment values in T & RH influence all physical values. AFB K01/0923 page 9...
-
Page 10: Maintenance
The in situ alignment refers to the transmitter in conjunction with the remote probe. 10. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 11. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com... -
Page 11: Disposal
(Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1. „Cd" stands for cadmium 2. „Hg" stands for mercury 3. „Pb" stands for lead 4. „Li" stands for lithium Electrical and electronic equipment AFB K01/0923 page 11... -
Page 12: Eu Declaration Of Conformance
14. EU Declaration of Conformance We, KOBOLD Messring GmbH, Nordring 22-24, 65719 Hofheim, Germany, declare under our sole responsibility that the product: Transmitter for Humidity and Temperature Measurement Model: AFB to which this declaration relates is in conformity with the following EU directives...
