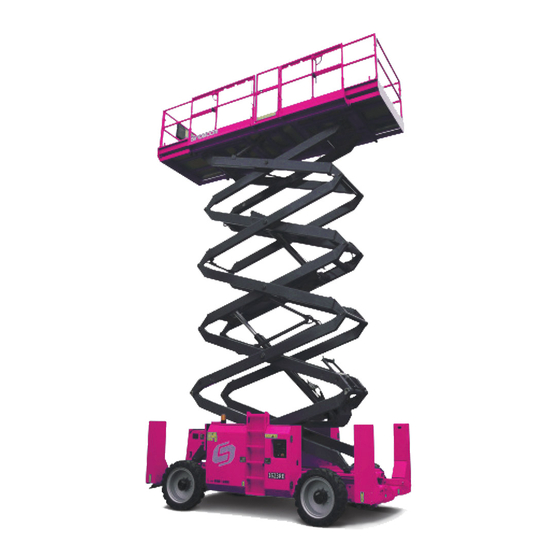

Part No.515006100002
Rev: A
Jun. 2021
Operation
Manual
产品说明书
PRODU
C T MAN U AL
1323RE/4389RE
1623RE/5389RE
0608E (2132E)
G T JZ
0808E (2732E)
G T JZ
0808E (2732E)
G T JZ
G T JZ
0808E (2732E)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1323RE and is the answer not in the manual?

Questions and answers

Related Manuals for Sinoboom 1323RE

Summary of Contents for Sinoboom 1323RE

  • Page 1 Operation Part No.515006100002 Rev: A Manual Jun. 2021 产品说明书 PRODU C T MAN U AL 1323RE/4389RE 1623RE/5389RE 0608E (2132E) G T JZ 0808E (2732E) G T JZ 0808E (2732E) G T JZ G T JZ 0808E (2732E)
  • Page 3 Operating, servicing and maintaining this vehicle or equipment can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle or equipment in a well-ventilated area and wear gloves or wash your...
  • Page 4 : No.128, East Jinzhou Avenue, Ningxiang High-tech Industrial Park, Changsha, Hunan, China Zip Code : 410600 Copyright © Hunan Sinoboom Intelligent Equipment Co., Ltd. All Rights Reserved The final interpretation right of this manual belongs to Hunan Sinoboom Intelligent Equipment Co., Ltd.
  • Page 5 Decals/Nameplate Inspection for details.) Trade Identification Models Serial Numbers Imperial Metric 1500500100 to present 1323RE 1323RE 4389RE 1500600100 to present 1623RE 1623RE 5389RE NOTE: • Product model is applied in product nameplate for distinction of products of different main parameters.
  • Page 6 This Page Intentionally Left Blank...
  • Page 7 This manual covers the basic parts information of one or more products. Therefore, please use this manual according to your needs. If you find problems in the manual or have suggestions for improve- ment, feel free to share your feedback with Sinoboom, and we will address these issues as soon as possible.
  • Page 8 This Page Intentionally Left Blank...

  • Page 9: Table Of Contents

    Safety Definitions ..... 3-1 Sinoboom Control System) ... 6-3 Reporting Accidents....3-1 Preparation .
  • Page 10 Decals/Nameplates(CE-Imperial) 10-14 Decals/Nameplates(CSA) ..10-17 Decals/Nameplates(ANSI)..10-20 Appendix 1: Symbols and Description....... A-1 Appendix 2: Prepare the Work Record Before Delivery ..A-5 © Jun. 2021 1323RE&1623RE Operation Manual...

  • Page 11: Introduction

    The owner or administrator of the machine shall also provide the manufacturer’s maintenance information to the person responsible for maintaining the machine. If you have any questions, contact Hunan Sinoboom In- telligent Equipment Co., Ltd.. 1323RE&1623RE Operation Manual © Jun. 2021...
  • Page 12 This Page Intentionally Left Blank © Jun. 2021 1323RE&1623RE Operation Manual...

  • Page 13: Machine Specifications

    MACHINE SPECIFICATIONS Table 1-1 1323RE specifications 1323RE (METRIC) 4389RE (IMPERIAL) MEASURE DIMENSIONS Max. platform height 13.1 m 42ft 11.7in Max. working height 15.1 m 49ft 6.5in Max. horizontal reach (rear 1.2 m 3ft 11.2in extension platform extended) Max. horizontal reach (front 1.5 m...
  • Page 14 MACHINE SPECIFICATIONS Table 1-1 1323RE specifications (continued) 1323RE (METRIC) 4389RE (IMPERIAL) MEASURE Max. allowable inclination (side-to- 2°/0.8° side, outrigger retracted/extended) Max. outrigger leveling angle (front- 7° to-back) Max. outrigger leveling angle (side- 12° to-side) Turning radius (inside) 2.2 m 7ft 2.6in Turning radius (outside) 5.3 m...
  • Page 15 MACHINE SPECIFICATIONS Table 1-1 1323RE specifications (continued) 1323RE (METRIC) 4389RE (IMPERIAL) MEASURE Max. allowable ambient relative humidity Stored at -20℃ to 50℃ (-4℉ to 122℉) in a well-ventilated environment Storage conditions with 90% relative humidity (20℃ [68℉]), and away from rain, sun, corrosive gas, inflammables and explosives.
  • Page 16 Tire contact pressure 104 psi 720 kPa Max. outrigger load 3200 kg 7055 lb Outrigger contact pressure 91 psi 630 kPa ENVIRONMENT Max. allowable wind speed (indoor/ 0 /12.5 m/s 0 /28 mph outdoor) © Jun. 2021 1323RE&1623RE Operation Manual...
  • Page 17 The total vibration value of the platform does not exceed 2.5m/s², and the maximum root-mean-square value of the weighted acceleration of the entire machine does not exceed 0.5m/s². g) The hydraulic tank capacity is the maximum volume in the hydraulic tank. 1323RE&1623RE Operation Manual © Jun. 2021...
  • Page 18 MACHINE SPECIFICATIONS This Page Intentionally Left Blank © Jun. 2021 1323RE&1623RE Operation Manual...

  • Page 19: Machine Components

    MACHINE COMPONENTS Figure 2-1 Table 2-1 1. Landyard anchorage point 10. Safety arm 19. Steer wheel 2. Main platform 11. Lower lift cylinder 20. Tray installation 1323RE&1623RE Operation Manual © Jun. 2021...
  • Page 20 Platform heights at which the down limit switch disengages (height from ground to platform floor)：3 ±0.3m (9ft 10in±12in). Stowed position： The machine comes in stowed position when fully retracted. © Jun. 2021 1323RE&1623RE Operation Manual...

  • Page 21: Safety

    Failure to notify the manufacturer within SAFETY DEFINITIONS 48 hours of the incident involving the machine of Hunan Sinoboom Intelligent Equipment Co., Ltd. may void the product's warranty. This safety alert symbol appears with most safety statements. It means atten-...

  • Page 22: Electrocution Hazards

    Table 3-1 Minimum Safe Distance Voltage Minimum Safe Distance (Phase to Phase, kV) (m/ft) 0-50 3.05 (10) 50-200 4.60 (15) 200-350 6.10 (20) 350 -500 7.62 (25) 500 -750 10.67 (35) 750 -1000 13.725 (45) © Jun. 2021 1323RE&1623RE Operation Manual...
  • Page 23 • Do not replace key parts that affect machine stability with different weights or specifications. • Do not modify or change moving aerial platforms without the manufacturer’s prior written permission. 1323RE&1623RE Operation Manual © Jun. 2021...

  • Page 24: Work Environment Hazards

    If the machine can be used be used in any other applications, or by any other outdoors, never operate it during means, other than those specified by Sinoboom, it strong winds or gusts. Do not lift must be approved or guided by the manufacturer.

  • Page 25: Unsafe Operation Hazards

    NOTICE Maximum climbing ability or gradeability is applicable for machines with the platform retracted. 1323RE gradeablity: 50% (26.6°) 1623RE gradeability: 40% (22°) Gradeability means the maximum allowable tilt angle of the machine when it is on solid ground and the platform is only capable of carrying one person.

  • Page 26: Fall Hazards

    • Do not use the machine as a crane. • Do not use the platform to push other machines or objects. • Do not allow the platform to touch nearby objects. © Jun. 2021 1323RE&1623RE Operation Manual...

  • Page 27: Collision Hazards

    • Maintain good judgment and plan- ning when using the controller on the ground to operate the ma- chine. Maintain proper distance between operator, machine and fixed object. 1323RE&1623RE Operation Manual © Jun. 2021...

  • Page 28: Crush Hazards

    Maintain good judgment and plan- maintenance requirements in the Operation Manual ning when using the controller on and the Maintenance Manual. the ground to operate the ma- chine. Maintain proper distance between operator, machine and fixed object. © Jun. 2021 1323RE&1623RE Operation Manual...

  • Page 29: Bodily Injury Hazards

    During operation, keep the left and right doors of the chassis closed and locked. Only trained service personnel can open the left and right doors to repair the machine. 1323RE&1623RE Operation Manual © Jun. 2021...
  • Page 30 The battery cable connections are free of corrosion. • The battery hold-down and cable connections are secured. Adding terminal protection and anti-corrosion sealants will help reduce corrosion of the battery terminals and cables. © Jun. 2021 3-10 1323RE&1623RE Operation Manual...

  • Page 31: Hydraulic Systems Hazard

    Maintenance Manual. machine. 5. Block the wheels with the wheel wedges. 6. Charge the battery. NOTICE After using the machine, the power off switch must be disconnected. 1323RE&1623RE Operation Manual 3-11 © Jun. 2021...
  • Page 32 SAFETY This Page Intentionally Left Blank © Jun. 2021 3-12 1323RE&1623RE Operation Manual...

  • Page 33: Jobsite Inspection

    Operators must identify and avoid workplace hazards when mov- ing, installing and operating the machine. Unless approved by Sinoboom, never operate the ma- chine in a hazardous site. The following items present danger on the jobsite: •...
  • Page 34 JOBSITE INSPECTION This Page Intentionally Left Blank © Jun. 2021 1323RE&1623RE Operation Manual...

  • Page 35: Pre-Operation Inspection

    • Only qualified maintenance technicians can repair this machine. the machine according to the manufacturer's regulations. After any maintenance, the operator 1323RE&1623RE Operation Manual © Jun. 2021...

  • Page 36: Conducting A Pre-Operation

    Performing daily inspection of the • Scissor arm pins and fasteners hydraulic oil level will help you determine if a problem • Platform joystick exists in the hydraulic system. © Jun. 2021 1323RE&1623RE Operation Manual...

  • Page 37: Inspecting The Battery

    NOTICE NOTICE Improper connection may cause reduced Different hydraulic oils can be added according to performance, damaged terminals, fusions and customer requirements upon factory delivery, but even fires. cannot be mixed. 1323RE&1623RE Operation Manual © Jun. 2021...
  • Page 38 NOTE: Add terminal protectors and antiseptic sealants to help eliminate corrosion of the battery terminals and cables. © Jun. 2021 1323RE&1623RE Operation Manual...

  • Page 39: Pre-Operation Function Test

    • Check the work site. NOTICE • Check the safety decals/ name- plate on the machine. All tests on the ground controller should be completed in one cycle. 1323RE&1623RE Operation Manual © Jun. 2021...

  • Page 40: Preparation

    OFF position NOTICE after being released. In cold weather, the LCD screen needs warming up before it properly displays anything. © Jun. 2021 1323RE&1623RE Operation Manual...

  • Page 41: Ground/Platform Select Switch

    The alarm sounds 60 times/minute while the platform is lowering, and 180 times/minute while the machine is tilt. TESTING THE GROUND CONTROLLER (SINOBOOM CONTROL SYSTEM) NOTICE All tests on the ground controller shall be completed within one cycle. 1323RE&1623RE Operation Manual © Jun. 2021...

  • Page 42: Preparation

    PRE-OPERATION FUNCTION TEST POWER CAUTION Figure 6-2 Ground controller (Sinoboom control system) Table 6-2 7. Neutral position 13. Platform up switch 1. Hour meter 2. Emergency stop button 8. Natural gas switch (not used) 14. Platform up/down enable switch 9. Engine speed select switch (not 15.

  • Page 43: Ground/Platform Select Switch

    PLATFORM UP/DOWN FUNCTION The alarm sounds 60 times/minute while the platform is NOTICE lowering, and 180 times/minute while the machine is tilt. All tests on the platform controller should be completed in one cycle. 1323RE&1623RE Operation Manual © Jun. 2021...
  • Page 44 9. Drive switch 10. Drive speed select switch 4. Horn button 16. LCD screen 5. Engine speed select switch (not 11. Enable switch used) 12. Drive/lift proportional control 6. Generator switch (if equipped) joystick © Jun. 2021 1323RE&1623RE Operation Manual...

  • Page 45: Preparation

    3. With the emergency stop button on ground controller in OFF position and the one on platform controller in ON position, press the engine start switch, the engine should not get started and all functions should be inoperative. 1323RE&1623RE Operation Manual © Jun. 2021...

  • Page 46: Drive Function

    Press the drive speed select switch, the switch should be lit and the low drive speed should be selected; press the switch again, the switch light should go out and the high drive speed should be selected. © Jun. 2021 1323RE&1623RE Operation Manual...
  • Page 47 PRE-OPERATION FUNCTION TEST AUTO AUTO AUTO POWER Figure 6-4 Platform controller (Sinoboom control system) Table 6-4 1. Individual outrigger level switch 7. Emergency stop button 13. LED screen 2. Outrigger self-level switch 8. Enable switch 14. Drive & steer enable switch 3.

  • Page 48: Preparation

    3. With the emergency stop button on ground controller in OFF position and the one on platform controller in ON position, press the engine start switch, the engine should not get started and all functions should be inoperative. © Jun. 2021 6-10 1323RE&1623RE Operation Manual...

  • Page 49: Drive Switch

    5. Release the joystick, the machine should come to an immediate stop. Note: The drive speed is in direct proportion to the stroke of the joystick. 1323RE&1623RE Operation Manual 6-11 © Jun. 2021...

  • Page 50: Outrigger Leveling

    7. Switch from drive to platform lift function, and raise and release the joystick the platform until the lower limit switch disengages, the red indicator light on the level sensor will 5. Press simultaneously the both emergency lowering switches. © Jun. 2021 6-12 1323RE&1623RE Operation Manual...

  • Page 51: Testing The Drive Speed

    1. Turn the Ground/Platform select switch on ground with the ground. controller to Platform. 4. Drive the machine to allow the right steer wheel to stand on a 10cm (3.9in) high block or kerb. 1323RE&1623RE Operation Manual 6-13 © Jun. 2021...

  • Page 52: Testing The Weighing System

    15°(59°F), the overload alarm may be triggered (the display screen on platform or ground controller indicates “OL”) even if the platform load does not exceed the rated load, in this circumstance, please re-calibrate the weight sensor. © Jun. 2021 6-14 1323RE&1623RE Operation Manual...

  • Page 53: Operating The Machine

    For the specifice procedure, please reference Testing rules and instructions in this Operation Manual. the Emergency Lowering Function, page 6-12. 1323RE&1623RE Operation Manual © Jun. 2021...

  • Page 54: Operation From Ground

    Max slope rating, stowed position： 3. Hold the joystick enable switch and slowly deflect backward the joystick, the platform should lower with the alarm sounding. To steer: © Jun. 2021 1323RE&1623RE Operation Manual...

  • Page 55: Extending And Retracting The Platform

    2. Push the handle to extend the platform to the intended position. Do not stand in the platform extension while attempting to extend the platform. 3. Lower the platform extension locking handle, and ensure the extension platform is locked. 1323RE&1623RE Operation Manual © Jun. 2021...
  • Page 56 OPERATING THE MACHINE This Page Intentionally Left Blank © Jun. 2021 1323RE&1623RE Operation Manual...

  • Page 57: Transporting And Lifting The Machine

    NOTICE 7. Inspect the entire machine for loose or unsecure Do not tow the machine unless an emergency, failure items. Use straps to secure the fold-down rails or loss of power occurs. before transporting. 1323RE&1623RE Operation Manual © Jun. 2021...

  • Page 58: Lifting The Machine With A Crane

    2. Ensure the extension platforms, controllers and chassis components are adequately securely in place. 3. Remove all loose items from the machine. 4. Determine the center of gravity of the machine. © Jun. 2021 1323RE&1623RE Operation Manual...

  • Page 59: Maintenance

    Conduct a quarterly inspection on machines that pany to perform a pre-delivery inspection. have been out of service for a period lasting longer than three months. 2. Follow this procedure each time before delivery. Performing a pre-delivery inspection could reveal 1323RE&1623RE Operation Manual © Jun. 2021...

  • Page 60: Following Amaintenance Schedule

    Every day or every 8 hours maintenance procedure requirements. Every quarter or every 250 hours 2. The Repair & Inspection Report shall include the inspection table of each regular inspection. © Jun. 2021 1323RE&1623RE Operation Manual...
  • Page 61 B-2 Inspect Rim ,Tire and Fasteners B-3 Inspect Hydraulic Oil B-4 Inspect Air filter of Hydraulic Tank B-5 Replace High- Pressure Filter Element B-6 Inspect the Battery B-7 Inspect Drive Reducer Oil Level B-8 Test Oscillate Outriggers 1323RE&1623RE Operation Manual © Jun. 2021...

  • Page 62: Major Modification And Repair Record

    1. A major modification/repair is a modification/repair company. made to all or part of a machine that affects the 3. Major modifications/repairs to the machine must be stability, strength or performance of the machine. performed by a qualified service technician. © Jun. 2021 1323RE&1623RE Operation Manual...
  • Page 63 Maintenance and Inspection Report is “YES”, the Table 9-3 Major Modification and Repair Record Model Serial No. Machine Repair- Repairman’s Status Problem Description Modification/Repair Item Date Company and Signature Position ter Change 1323RE&1623RE Operation Manual © Jun. 2021...
  • Page 64 MAINTENANCE This Page Intentionally Left Blank © Jun. 2021 1323RE&1623RE Operation Manual...

  • Page 65: Decals/Nameplates Inspection

    Do not operate the engine if there are missing or badly worn safety decals. 1323RE&1623RE Operation Manual 10-1 © Jun. 2021...

  • Page 66: Decals/Nameplates(Gb)

    DECALS/NAMEPLATES INSPECTION DECALS/NAMEPLATES(GB) 1623RE 400N 220V AC 680kg 12.5m/s 101012100009 115006103006 液压油 101012100005 104009100018 101012100001 375kg 101012100029 115006103002 101014100016 Max.=3200kg Max.=630kPa Max.=3200kg Max.=630kPa 102001100003 Max.=3900kg Max.=720kPa Max.=3900kg Max.=720kPa 102001100003 102013103001 102013103001 © Jun. 2021 10-2 1323RE&1623RE Operation Manual...
  • Page 67 DECALS/NAMEPLATES INSPECTION Description Qty. Part No. Remarks Decals((GB)-1323RE 115005103014 Decals((GB)-1623RE 115006103015 101048103025 LOGO-SINOBOOM Decal-1323RE use requirements 115005103006 Decal-1623RE use requirements 115006103006 101012100009 Decal 101012100018 Decal-Crush hazard 101012100030 Decal-Bulkhead overhaul 101012100005 Decal-Electrocution hazard 101012100029 Decal-Crush hazard Decal-Tipping hazard 115006103002 Decal-Outrigger load against ground 3200kg...
  • Page 68 DECALS/NAMEPLATES INSPECTION Description Qty. Part No. Remarks Decal-Safety arm 101014100026 Decal-Lanyard anchorage 101016100030 Decal-Main power disconnect switch 101056103002 Decal-Hydraulic oil 104009100018 Decal-Hydraulic oil level 104011100003 Decal-Hydraulic oil level 104011100010 Decal-Emergency stop button 101055103016 © Jun. 2021 10-4 1323RE&1623RE Operation Manual...

  • Page 69: Decals/Nameplates(As)

    DECALS/NAMEPLATES INSPECTION DECALS/NAMEPLATES(AS) 1323RE&1623RE Operation Manual 10-5 © Jun. 2021...
  • Page 70 DECALS/NAMEPLATES INSPECTION Description Qty. Part No. Remarks 115005103011 Decals(AS)-1323RE Decals(AS)-1623RE 115006103012 101048103025 LOGO-SINOBOOM Decal-1323RE use requirements 115005103006 Decal-1623RE use requirements 115006103006 101012100009 Decal 101012100018 Decal-Crush hazard 101012100030 Decal-Bulkhead overhaul 101055103019 Decal-Electrocution hazard 101012100029 Decal-Crush hazard Decal-Tipping hazard 115006103002 Decal-Outrigger load against ground 3200kg...
  • Page 71 DECALS/NAMEPLATES INSPECTION Description Qty. Part No. Remarks Decal-Main power disconnect switch 101016100031 Decal-Hydraulic oil 104009100022 Decal-Hydraulic oil level 104011100003 Decal-Hydraulic oil level 104011100010 Decal-Emergency stop button 101055103015 1323RE&1623RE Operation Manual 10-7 © Jun. 2021...

  • Page 72: Decals/Nameplates(Kcs)

    DECALS/NAMEPLATES INSPECTION DECALS/NAMEPLATES(KCS) © Jun. 2021 10-8 1323RE&1623RE Operation Manual...
  • Page 73 DECALS/NAMEPLATES INSPECTION Description Qty. Part No. Remarks 115005103013 Decals(KCS)-1323RE Decals(KCS)-1623RE 115006103014 101048103025 LOGO-SINOBOOM Decal-1323RE use requirements 115005103006 Decal-1623RE use requirements 115006103006 101012100009 Decal 101012100018 Decal-Crush hazard 101012100030 Decal-Bulkhead overhaul 101012100005 Decal-Electrocution hazard 101012100029 Decal-Crush hazard Decal-Tipping hazard 115006103002 Decal-Outrigger load against ground 3200kg...
  • Page 74 DECALS/NAMEPLATES INSPECTION Description Qty. Part No. Remarks Decal-Main power disconnect switch 101016100031 Decal-Hydraulic oil 104009100022 Decal-Hydraulic oil level 104011100003 Decal-Hydraulic oil level 104011100010 Decal-Emergency stop button 101055103015 © Jun. 2021 10-10 1323RE&1623RE Operation Manual...

  • Page 75: Decals/Nameplates(Ce-Metric)

    DECALS/NAMEPLATES INSPECTION DECALS/NAMEPLATES(CE-METRIC) 1323RE&1623RE Operation Manual 10-11 © Jun. 2021...
  • Page 76 DECALS/NAMEPLATES INSPECTION Description Qty. Part No. Remarks 115005103007 Decals(CE-Metric)-1323RE Decals(CE-Metric)-1623RE 115006103008 101048103025 LOGO-SINOBOOM Decal-1323RE use requirements 115005103006 Decal-1623RE use requirements 115006103006 101012100009 Decal 101012100018 Decal-Crush hazard 101012100030 Decal-Bulkhead overhaul 101012100005 Decal-Electrocution hazard 101012100029 Decal-Crush hazard Decal-Tipping hazard 115006103002 Decal-Outrigger load against ground 3200kg...
  • Page 77 DECALS/NAMEPLATES INSPECTION Description Qty. Part No. Remarks Decal-Main power disconnect switch 101016100031 Decal-Hydraulic oil 104009100022 Decal-Hydraulic oil level 104011100003 Decal-Hydraulic oil level 104011100010 Decal-Emergency stop button 101055103015 1323RE&1623RE Operation Manual 10-13 © Jun. 2021...

  • Page 78: Decals/Nameplates(Ce-Imperial)

    DECALS/NAMEPLATES INSPECTION DECALS/NAMEPLATES(CE-IMPERIAL) © Jun. 2021 10-14 1323RE&1623RE Operation Manual...
  • Page 79 DECALS/NAMEPLATES INSPECTION Description Qty. Part No. Remarks 115005103004 Decals(CE-Imperial)-1323RE Decals(CE-Imperial)-1623RE 115006103005 101048103025 LOGO-SINOBOOM Decal-1323RE use requirements 115005103006 Decal-1623RE use requirements 115006103006 101012100009 Decal 101012100018 Decal-Crush hazard 101012100030 Decal-Bulkhead overhaul 101012100005 Decal-Electrocution hazard 101012100029 Decal-Crush hazard Decal-Tipping hazard 115006103002 Decal-Outrigger load against ground 3200kg...
  • Page 80 DECALS/NAMEPLATES INSPECTION Description Qty. Part No. Remarks Decal-Main power disconnect switch 101016100031 Decal-Hydraulic oil 104009100022 Decal-Hydraulic oil level 104011100003 Decal-Hydraulic oil level 104011100010 Decal-Emergency stop button 101055103015 © Jun. 2021 10-16 1323RE&1623RE Operation Manual...

  • Page 81: Decals/Nameplates(Csa)

    DECALS/NAMEPLATES INSPECTION DECALS/NAMEPLATES(CSA) The last annual inspection: The next annual inspection: Annual Inspection 101040103015 11 12 1323RE&1623RE Operation Manual 10-17 © Jun. 2021...
  • Page 82 DECALS/NAMEPLATES INSPECTION Description Qty. Part No. Remarks 115005103008 Decals(CSA)-1323RE Decals(CSA)-1623RE 115006103011 101048103025 LOGO-SINOBOOM Decal-1323RE use requirements 115005103009 Decal-1623RE use requirements 115006103009 101012100009 Decal Decal-Annual inspection 101040103015 101012100018 Decal-Crush hazard 104011100021 Decal-Crush hazard 101012100030 Decal-Bulkhead overhaul 101040103013 Decal-Electrocution hazard 101012100029 Decal-Crush hazard...
  • Page 83 DECALS/NAMEPLATES INSPECTION Description Qty. Part No. Remarks Decal-Safety arm 101014100026 Decal-Lanyard anchorage 101016100030 Decal-Main power disconnect switch 101016100031 Decal-Hydraulic oil 104009100022 Decal-Hydraulic oil level 104011100003 Decal-Hydraulic oil level 104011100010 Decal-Emergency stop button 101055103015 1323RE&1623RE Operation Manual 10-19 © Jun. 2021...

  • Page 84: Decals/Nameplates(Ansi)

    DECALS/NAMEPLATES INSPECTION DECALS/NAMEPLATES(ANSI) 11 10 10 11 © Jun. 2021 10-20 1323RE&1623RE Operation Manual...
  • Page 85 DECALS/NAMEPLATES INSPECTION Description Qty. Part No. Remarks 115005103012 Decals(ANSI)-1323RE Decals(ANSI)-1623RE 115006103013 101048103025 LOGO-SINOBOOM Decal-1323RE use requirements 115005103009 Decal-1623RE use requirements 115006103009 101012100009 Decal Decal-Annual inspection 101040103015 101012100018 Decal-Crush hazard 101012100030 Decal-Crush hazard 101040103013 Decal-Bulkhead overhaul 101012100029 Decal-Electrocution hazard 115006103017 Decal-Crush hazard...
  • Page 86 DECALS/NAMEPLATES INSPECTION Description Qty. Part No. Remarks Decal-Lanyard anchorage 101016100030 Decal-Main power disconnect switch 101016100031 Decal-Hydraulic oil 104009100022 Decal-Hydraulic oil level 104011100003 Decal-Hydraulic oil level 104011100010 Decal-Emergency stop button 101055103015 © Jun. 2021 10-22 1323RE&1623RE Operation Manual...

  • Page 87: Appendix 1: Symbols And Description

    Collision hazards-Re- Electrocution hazards Electrocution hazards Keep a safe distance Tip-over hazards-Avoid lease brake on ramp on platform on the ground and from power lines uneven ground platform 1323RE&1623RE Operation Manual © Jun. 2021...
  • Page 88 Indoor use handle position and down platform Outdoor use The side force Electrocution hazards Wear protective cloth- Battery explosion ing and glasses hazard No smoking No smoking Only professional Improve point Lashing points maintenance © Jun. 2021 1323RE&1623RE Operation Manual...
  • Page 89 DECALS/NAMEPLATES INSPECTION personnel can start the maintenance Tire to ground load Forklift fork position Platform carrying Carrying capacity of Hydraulic oil filler capacity fixed and extended platform Horn Tool or weight Fast/high speed Slow/low speed 1323RE&1623RE Operation Manual © Jun. 2021...
  • Page 90 DECALS/NAMEPLATES INSPECTION This Page Intentionally Left Blank © Jun. 2021 1323RE&1623RE Operation Manual...

  • Page 91: Appendix 2: Prepare The Work Record Before Delivery

    2. Use the table to record the results. After each section is complete, mark the appropriate box. 3. Record the inspection results. If any inspection results are "NO", the machine must be stopped, and re-in- spected after repair is completed and the box marked "inspection" must be checked. 1323RE&1623RE Operation Manual © Jun. 2021...
  • Page 92 DECALS/NAMEPLATES INSPECTION This Page Intentionally Left Blank © Jun. 2021 1323RE&1623RE Operation Manual...
  • Page 93 B-2 Inspect Rim ,Tire and Fasteners B-3 Inspect Hydraulic Oil B-4 Inspect Air filter of Hydraulic Tank B-5 Replace High- Pressure Filter Element B-6 Inspect the Battery B-7 Inspect Drive Reducer Oil Level B-8 Test Oscillate Outriggers 1323RE&1623RE Operation Manual © Jun. 2021...
  • Page 94 Condition Malfunction D-1 Replace Drive Reducer Gear Oil D-2 Inspect Scissor Arm Sliders D-3 Replace Hydraulic D-4 Replace Hydraulic Tank Suction Filter D-5 Inspect Scissor Arm Bearing User Inspector Signature Inspector Date Inspector Title © Jun. 2021 1323RE&1623RE Operation Manual...
  • Page 95 4. Record the inspection results. If any inspection results are "NO", the machine must be stopped and re- inspected after repair is completed and marked in the box marked "inspection". Select the appropriate inspection procedure based on the inspection type. Select the procedures as appropriate for the type of inspection. 1323RE&1623RE Operation Manual © Jun. 2021...
  • Page 96 DECALS/NAMEPLATES INSPECTION This Page Intentionally Left Blank © Jun. 2021 A-10 1323RE&1623RE Operation Manual...
  • Page 97 Modification/Repair” in the form will be “Good” and the machine can be used. If either inspection result is “NO”, the machine must be re-inspected after the repair is completed until the machine is in “Good” condition before continuing to use the machine. 1323RE&1623RE Operation Manual A-11 © Jun. 2021...
